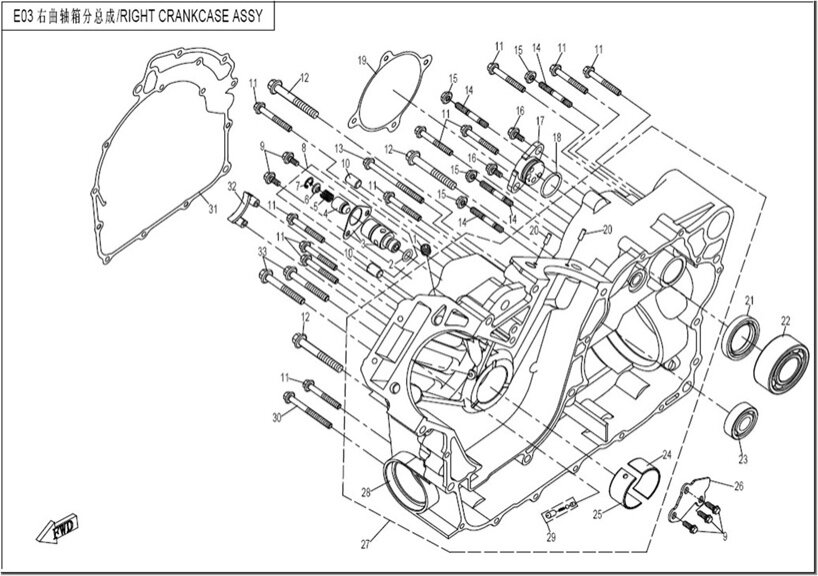

Pravý blok motoru od (2013)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Šroub (vrut) 01A0-012010 | Skladem | 15,54 Kč | ||
| 2 | O-SEAL RING 10×2.3 0180-073002 | Skladem | 15,54 Kč | ||
| 3 | BODY,RELIEF VALVE 0800-073100 | Skladem | 341,80 Kč | ||
| 4 | CORE,RELIEF VALVE 0800-073003 | Není skladem | 77,68 Kč | ||
| 5 | SPRING,RELIEF VALVE 0700-012603 | Není skladem | |||
| 6 | SPRING SEAT, RELIEF VALVE 0800-073004 | Skladem | 15,54 Kč | ||
| 7 | CIRCLIP FOR HOLE 14 30800-01405 | Skladem | 29,04 Kč | ||
| 8 | RELIEF VALVE ASSY. 0800-073000-1000 | Skladem | 481,63 Kč | ||
| 9 | BOLT M6×12 0010-021019-0030 | Skladem | 15,54 Kč | ||
| 10 | DOWEL PIN φ10×14 0010-021005 | Skladem | 15,54 Kč | ||
| 11 | BOLT M6×45 0180-013208-0030 | Skladem | 15,54 Kč | ||
| 12 | BOLT M8×60 0130-011109-0030 | Není skladem | |||
| 13 | BOLT M6×80 0800-022009 | Skladem | 15,52 Kč | ||
| 14 | STUD 30011-060030820 | Skladem | 31,07 Kč | ||
| 15 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 16 | BOLT M6×16 0010-090005-0030 | Skladem | 15,54 Kč | ||
| 17 | GEAR SENSOR ASSY. 0800-012200 | Skladem | 403,95 Kč | ||
| 18 | O-SEAL RING 24×2.5 0180-023002 | Skladem | 43,52 Kč | ||
| 19 | GASKET(2), CVT CASE 0800-012002 | Skladem | 72,54 Kč | ||
| 20 | ROLLER NEEDLE P5×11.8 30406-00500 | Skladem | 15,54 Kč | ||
| 21 | OIL SEAL30X45X7 0180-012006 | Skladem | 174,09 Kč | ||
| 22 | BEARING 3206A 30499-03000 | Skladem | 1 755,61 Kč | ||
| 23 | BEARING 6203 30400-01704 | Skladem | 310,73 Kč | ||
| 24 | PLAIN BEARING 1 THICK 0800-011102-0002 | Skladem | 217,51 Kč | ||
| 24 | PLAIN BEARING 1 THIN 0800-011102-0001 | Skladem | 217,51 Kč | ||
| 25 | PLAIN BEARING 2 THICK 0800-011103-0002 | Skladem | 217,51 Kč | ||
| 25 | PLAIN BEARING 2 THIN 0800-011103-0001 | Skladem | 217,51 Kč | ||
| 26 | COVER PLATE 0800-012003 | Skladem | 15,54 Kč | ||
| 27 | RIGHT CRANKCASE ASSY 0800-012100-0001 | Skladem | 10 067,59 Kč | ||
| 27 | RIGHT CRANKCASE ASSY 0800-012100-0002 | Skladem | 10 254,02 Kč | ||
| 28 | CRANKCASE, RH 0800-012101-0001 | Skladem | 9 446,13 Kč | ||
| 28 | CRANKCASE, RH 0800-012101-0002 | Skladem | 9 446,13 Kč | ||
| 29 | NOZZLE VALVE ASSY. 0800-011400 | Skladem | 186,44 Kč | ||
| 30 | BOLT M6×50 0010-013010-0030 | Skladem | 15,54 Kč | ||
| 31 | GASKET(1), CVT CASE 0800-012001 | Skladem | 77,68 Kč | ||
| 32 | CHAIN GUARD 0800-011007 | Skladem | 46,61 Kč | ||
| 33 | BOLT M8×50 0040-012006-0030 | Skladem | 43,52 Kč | ||
