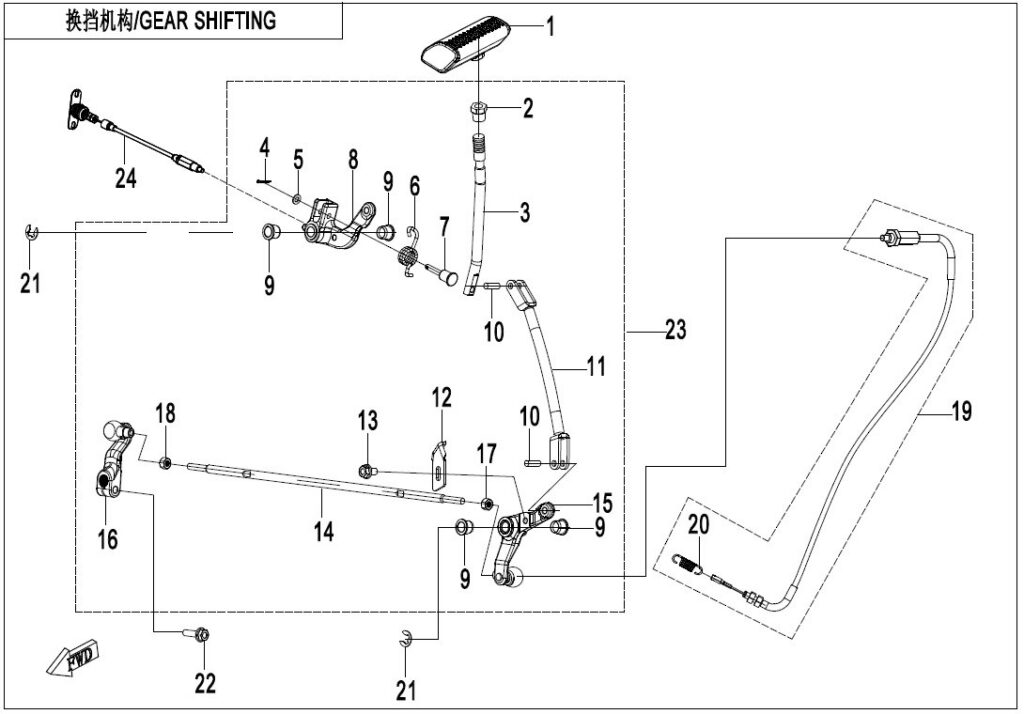

F32 GEAR SHIFTING
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | GEARSHIFT LEVER 9DQV-320010-1100 | Skladem | 295,19 Kč | ||
| 2 | LOCK NUT，GEARSHIFT 9CR6-321301 | Skladem | 93,22 Kč | ||
| 3 | GEARSHIFT CONTROL LEVER 9DQV-321001-1100 | Skladem | 201,97 Kč | ||
| 4 | COTTER PIN 30903-0161210 | Skladem | 15,54 Kč | ||
| 5 | Podložka 30306-050110 | Skladem | 15,54 Kč | ||
| 6 | SPRING 9DQV-321002-1100 | Skladem | 46,61 Kč | ||
| 7 | STEPPED PIN SHAFT WITH HOLE 9DQV-321003-1100 | Skladem | 77,68 Kč | ||
| 8 | SWING ARM 1 9DQV-321101-1100 | Skladem | 466,09 Kč | ||
| 9 | BUSHING, ARM 9CR6-321003 | Skladem | 15,54 Kč | ||
| 10 | PIN SHAFT 9DQV-321000-1100-21 | Skladem | 31,07 Kč | ||
| 11 | CONNECTING ROD 9DQV-321400-1100 | Skladem | 248,58 Kč | ||
| 12 | REVERSE LIMIT PLATE 9DQV-321007-1100 | Skladem | 31,07 Kč | ||
| 13 | HEX FLANGE BOLT 30023-060012810 | Skladem | |||
| 14 | ADJUSTING ROD 2 9DQV-321005-1100 | Skladem | 217,51 Kč | ||
| 15 | GEARSHIFT SWING ARM ASSY 2 9DQV-321200-1100 | Skladem | 574,85 Kč | ||
| 16 | SWING ARM ASSY 3 9DQV-321300-1100 | Skladem | 621,46 Kč | ||
| 17 | Matice 30200-06081L | Skladem | 31,07 Kč | ||
| 18 | NUT M6 30200-060810 | Skladem | 15,54 Kč | ||
| 19 | CABLE, PARKING LOCK 9DQV-320400-1101 | Skladem | |||
| 19 | PARKING LOCK CABLE ASSY 9DQV-320400-1100 | Skladem | 264,12 Kč | ||
| 20 | GEARSHIFT SPRIING 9010-080202 | Skladem | 15,54 Kč | ||
| 21 | SPLIT WASHER, 8 30802-00805 | Skladem | 15,54 Kč | ||
| 22 | BOLT M6x22 30006-060022810 | Skladem | 15,54 Kč | ||
| 23 | GEARSHIFT ASSY 9DQV-321000-1101 | Skladem | 2 579,04 Kč | ||
| 24 | LOCK CABLE 2 9DQV-320500-1101 | Skladem | 264,12 Kč | ||
| 24 | PARKING LOCK CABLE 2 9DQV-320500-1102 | Skladem | 279,66 Kč | ||
