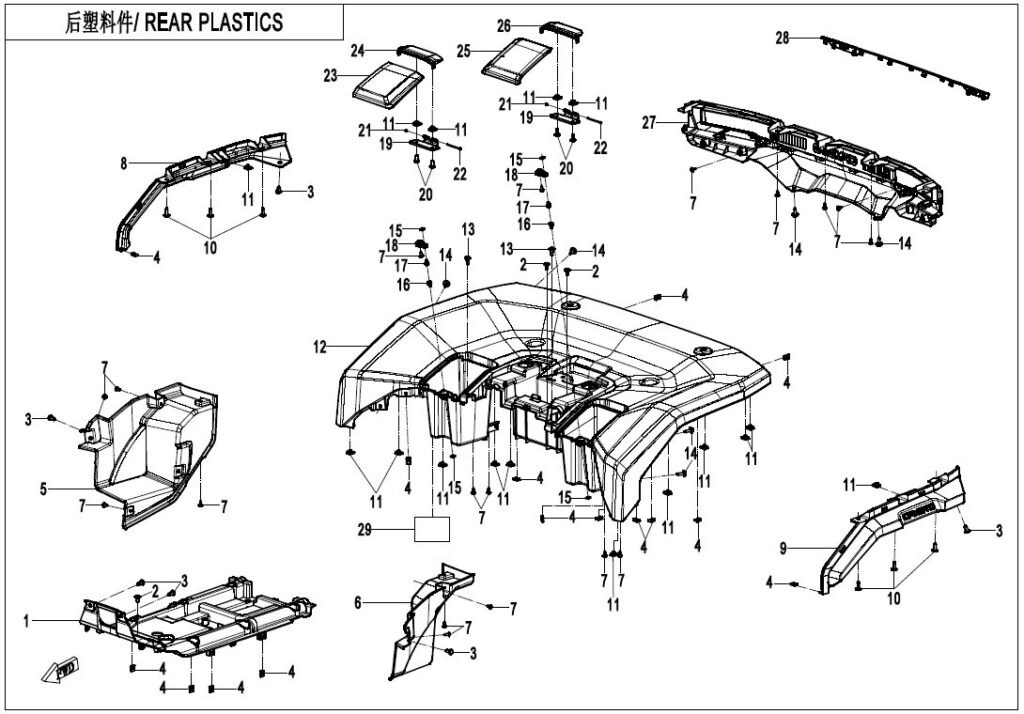

F04-4 REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SEAT LOWER PANEL 9CQV-041024-1303 | Skladem | |||
| 2 | INNER HEX BOLT M6x14 5BWV-040001-5000 | Skladem | 15,54 Kč | ||
| 3 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 4 | CLAMP ST4.8 5020-040049 | Skladem | 15,54 Kč | ||
| 5 | REAR RH INNER FENDER 9DQV-043020-1100 | Skladem | 341,80 Kč | ||
| 6 | REAR LH INNER FENDER 9DQV-043010-1100 | Skladem | 341,80 Kč | ||
| 7 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 8 | REAR RH FENDER 9DQV-042028-1100 | Skladem | 201,97 Kč | ||
| 9 | REAR LH FENDER 9DQV-042018-1100 | Skladem | 201,97 Kč | ||
| 10 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 11 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 12 | REAR FENDER 9DQV-041021-1102-0PF00 | Skladem | 2 827,62 Kč | ||
| 12 | REAR FENDER 9DQV-041021-1102-0PH00 | Skladem | 2 827,62 Kč | ||
| 13 | INNER HEX BOLT M6x18 5BWV-040005-5000 | Skladem | 15,54 Kč | ||
| 14 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
| 15 | NUT M5 6KJ0-040402 | Skladem | 15,54 Kč | ||
| 16 | MAGNETIC BOLT S POLE 9NTV-045589-1201 | Skladem | 46,61 Kč | ||
| 17 | MAGNETIC BOLT N POLE 9NTV-045588-1201 | Skladem | 46,61 Kč | ||
| 18 | MAGNET BRACKET 9NTV-045512-1200 | Skladem | 15,54 Kč | ||
| 19 | STORAGE BOX HINGE 9DQV-040004-1101 | Skladem | 124,29 Kč | ||
| 20 | BOLT M6x16 A010-120003 | Skladem | 31,07 Kč | ||
| 21 | STORAGE BOX COVER LOCK SCREW 9DQV-040007-1101 | Skladem | |||
| 21 | STORAGE BOX COVER LOCK SCREW 9DQV-040007-1100 | Skladem | 15,54 Kč | ||
| 22 | STORAGE BOX COVER LOCK SHAFT 9DQV-040008-1100 | Skladem | 31,07 Kč | ||
| 23 | RH TRUNK COVER 9DQV-041028-1100-0PF00 | Skladem | 93,22 Kč | ||
| 23 | RH TRUNK COVER 9DQV-041028-1100-0PH00 | Skladem | 93,22 Kč | ||
| 24 | RH TRUNK COVER 1 9DQV-041043-1100-0PF00 | Skladem | 46,61 Kč | ||
| 24 | RH TRUNK COVER 1 9DQV-041043-1100-0PH00 | Skladem | 46,61 Kč | ||
| 25 | LH TRUNK COVER 9DQV-041027-1100-0PF00 | Skladem | 93,22 Kč | ||
| 25 | LH TRUNK COVER 9DQV-041027-1100-0PH00 | Skladem | 93,22 Kč | ||
| 26 | LH TRUNK COVER 1 9DQV-041040-1100-0PF00 | Skladem | 46,61 Kč | ||
| 26 | LH TRUNK COVER 1 9DQV-041040-1100-0PH00 | Skladem | 46,61 Kč | ||
| 27 | TAIL LIGHT PANEL 9DQV-041019-1101-0BU00 | 1 | |||
| 28 | TAIL LIGHT PANEL DECO PLATE 9DQV-041020-1101-0PF00 | Skladem | 93,22 Kč | ||
| 28 | TAIL LIGHT PANEL DECO PLATE 9DQV-041020-1101-0PH00 | Skladem | 93,22 Kč | ||
| 29 | REAR FENDER HEAT INSULATION PAPER 9DQV-041121-1100 | Skladem | 77,68 Kč | ||
