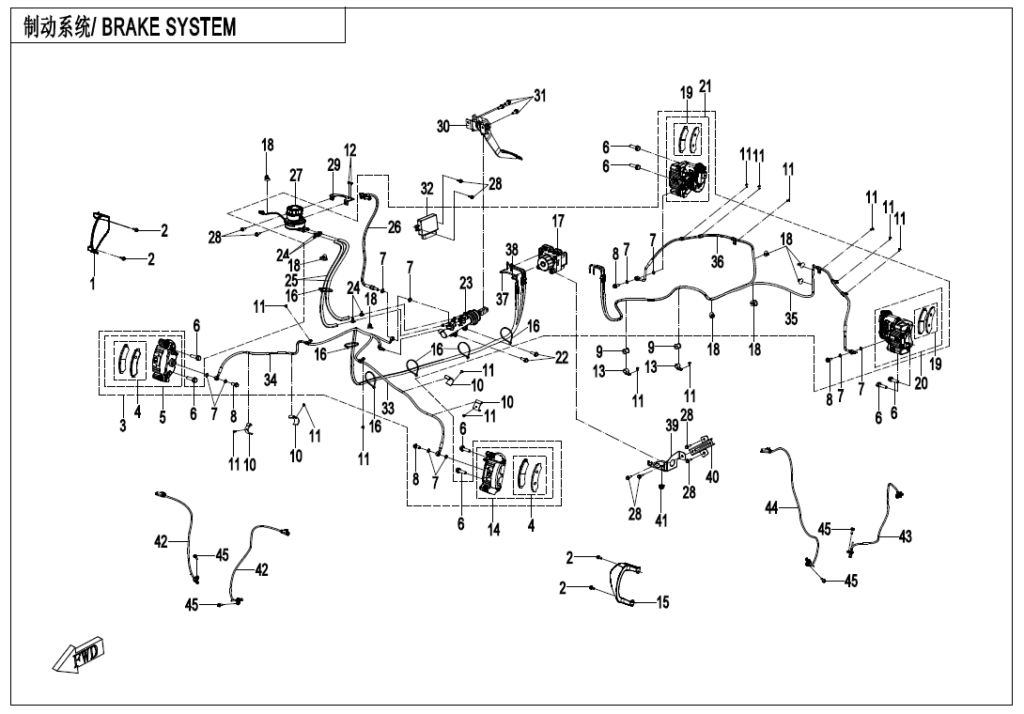

F08-B BRAKE SYSTEM(WITH ABS)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT RH BRAKE CALIPER GUARD 5HYV-080009-6000 | Skladem | 108,75 Kč | ||
| 2 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 3 | ABS HYDRAULIC BRAKE ASSY 5HYV-082000-7200 | Skladem | |||
| 4 | FRONT BRAKE PAD ASSY 5HYV-0811A0-6000 | Skladem | 1 305,06 Kč | ||
| 5 | FRONT RH BRAKE CALIPER 5HYV-081200-6000 | Skladem | 4 987,18 Kč | ||
| 6 | Šroub 30006-102040810 | Skladem | 31,07 Kč | ||
| 7 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 8 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 9 | RUBBER, FUEL PIPE 9030-180008 | Skladem | 15,54 Kč | ||
| 10 | PLASTIC CLASP 1 9DQV-080001-3000 | Skladem | |||
| 11 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 12 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 13 | FIXING CLIP 9AWA-080004 | Skladem | 62,15 Kč | ||
| 14 | FRONT LH BRAKE CALIPER 5HYV-081100-6000 | Skladem | 4 987,18 Kč | ||
| 15 | FRONT LH BRAKE CALIPER GUARD 5HYV-080008-6000 | Skladem | 108,75 Kč | ||
| 16 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 17 | ABS CONTROLLER 5HYV-082100-7200 | Skladem | 14 464,39 Kč | ||
| 18 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 19 | REAR BRAKE PAD ASSY 5HYV-0810A0-6000 | Skladem | 1 149,69 Kč | ||
| 20 | REAR LH E-BRAKE ASSY 5HYV-081050-6000 | Skladem | 11 636,76 Kč | ||
| 21 | REAR RH E-PARKING ASSY 5HYV-081060-6000 | Skladem | 11 636,76 Kč | ||
| 22 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 23 | MASTER CYLINDER ASSY 5HYV-081800-6000 | Skladem | 2 485,82 Kč | ||
| 24 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 25 | RESERVOIR PIPE 1 5HYV-080101-6000 | Skladem | 155,36 Kč | ||
| 26 | HYDRAULIC SENSOR SWITCHASSY 5HYV-080010-6000 | Skladem | 947,72 Kč | ||
| 27 | FLUID RESERVOIR ASSY 5HYV-080150-6000 | Skladem | 1 227,38 Kč | ||
| 28 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 29 | BRACKET, OIL CUP 5UWB-030110 | Skladem | 108,75 Kč | ||
| 30 | BRAKE PEDAL ASSY 5HYV-082100-6000 | Skladem | 1 103,08 Kč | ||
| 31 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 32 | EPB CONTROLLER 5HYV-159010-6000 | Skladem | 47 991,94 Kč | ||
| 33 | ABS FRONT LH BRAKE INLET PIPE ASSY 5HYV-082600-7200 | Skladem | 2 936,38 Kč | ||
| 34 | ABS FRONT LH BRAKE OUTLET PIPE ASSY 5HYV-082700-7200 | Skladem | 2 936,38 Kč | ||
| 35 | ABS REAR LH BRAKE OUTLET PIPE ASSY 5HYV-082800-7200 | Skladem | 2 936,38 Kč | ||
| 36 | ABS REAR RH BRAKE OUTLET PIPE ASSY 5HYV-082900-7200 | Skladem | 2 703,33 Kč | ||
| 37 | ABS FRONT BRAKE INLET PIPE ASSY 5HYV-082200-7200 | Skladem | 2 330,46 Kč | ||
| 38 | ABS REAR BRAKE INLET PIPE ASSY 5HYV-082300-7200 | Skladem | 2 330,46 Kč | ||
| 39 | ABS CONTROLLER BRACKET 5HYV-08000H-7200 | Skladem | 201,97 Kč | ||
| 40 | ABS BRACKET 5HYV-08000J-7200 | Skladem | 124,29 Kč | ||
| 41 | DAMPING RUBBER SLEEVE, MSC CONTROLLER 6L30-080008 | Skladem | 62,15 Kč | ||
| 42 | FRONT SPEED SENSOR 9AWV-080003-9500 | Skladem | 668,07 Kč | ||
| 43 | REAR LH SPEED SENSOR 9AWV-080004-9501 | Skladem | 636,99 Kč | ||
| 44 | REAR RH SPEED SENSOR 9AWV-080005-9501 | Skladem | 636,99 Kč | ||
| 45 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
