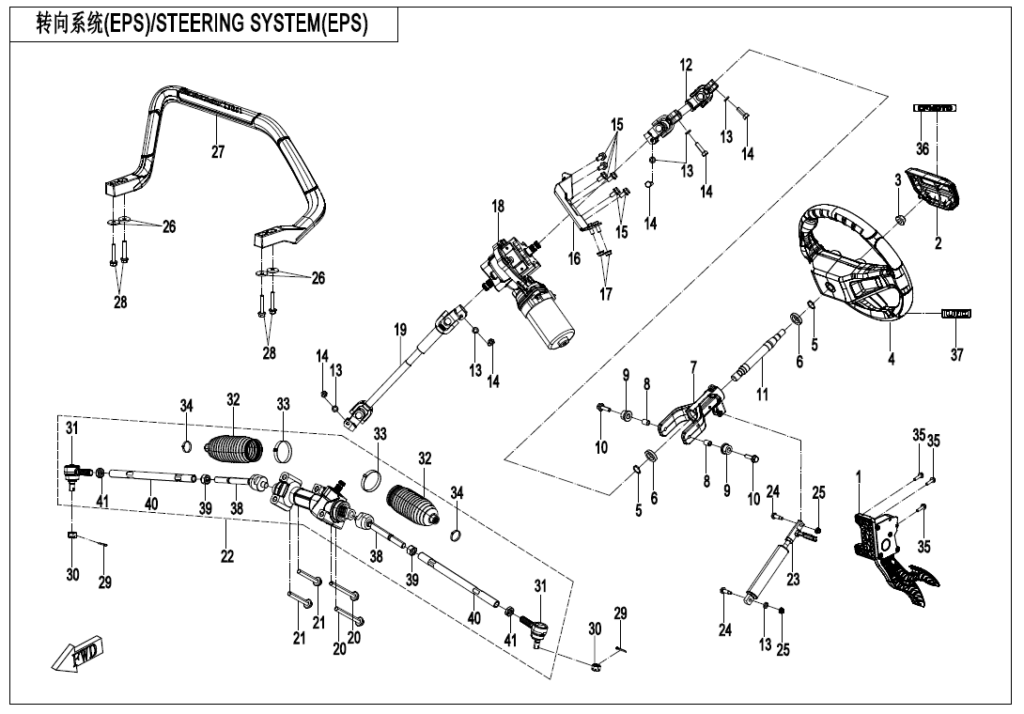

F10 STEERING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | E-THROTTLE PEDAL 5HYV-152800-6000 | Skladem | 4 583,24 Kč | ||
| 2 | STEERING WHEEL PRESS COVER 5HYV-101001-6000 | Skladem | 170,90 Kč | ||
| 3 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 4 | STEERING WHEEL ASSY 5HYV-101100-6002-0HQ00 | Skladem | 3 511,23 Kč | ||
| 5 | CIRCLIPS FOR SHAFT20 30801-02005 | Skladem | 15,54 Kč | ||
| 6 | Ložisko 30400-02005 | Skladem | 77,68 Kč | ||
| 7 | STEERING WHEEL BRACKET_MIDNIGHT BLACK 5HYV-102200-6000-0BV00 | Skladem | 1 662,39 Kč | ||
| 8 | NYLON BUSHING, STEERING COLUMN 9060-100009 | Skladem | 174,09 Kč | ||
| 9 | SLEEVE, MOUNT PLATE 9060-100008-00001 | Skladem | 31,07 Kč | ||
| 10 | BOLT M8x28 30006-080028810 | Skladem | 15,54 Kč | ||
| 11 | STEERING COLUMN 5HYV-107300-6000 | Skladem | 776,82 Kč | ||
| 12 | UNIVERSAL SHAFT,STEERING 5HY0-103100 | Skladem | 2 019,73 Kč | ||
| 13 | Podložka 30303-080112 | Skladem | 15,54 Kč | ||
| 14 | Šroub 30004-080030810 | Skladem | 29,02 Kč | ||
| 15 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 16 | EPS MOUNTING BRACKET ASSY 5HYV-103100-6001 | Skladem | 295,19 Kč | ||
| 17 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 18 | EPS MOTOR 5HYV-150820-6000 | Skladem | 19 389,43 Kč | ||
| 19 | LOWER STEERING SHAFT ASSY 5HYV-107200-6000 | Skladem | 2 516,90 Kč | ||
| 20 | Šroub 30006-102090810 | Skladem | 46,61 Kč | ||
| 21 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 22 | STEERING MOTOR ASSY 5HYV-105000-6001 | Skladem | 9 554,89 Kč | ||
| 23 | GAS SPRING ASSY 5BWV-102000-5000 | Skladem | 947,72 Kč | ||
| 23 | GAS SPRING ASSY 5BWV-102000-5001 | Skladem | 823,43 Kč | ||
| 24 | AIR SPRING UPPER FIXED BOLT 5HYV-103001-6000 | Skladem | 31,07 Kč | ||
| 25 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 26 | Podložka 30301-080412 | Skladem | 15,54 Kč | ||
| 27 | PASSENGER ARMREST 5HYV-100411-6000 | Skladem | 1 072,01 Kč | ||
| 28 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 29 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 30 | Matice 30219-122810 | Skladem | 31,07 Kč | ||
| 31 | OUTER BALL JOINT SUB ASSY 5HYV-105000-6001-20 | Skladem | |||
| 32 | DUST COVER 5HYV-105000-6000-25 | Skladem | |||
| 33 | BIG CLAMP 5HYV-105000-6000-28 | Skladem | |||
| 34 | SMALL CLAMP 5HYV-105000-6000-29 | Skladem | |||
| 35 | BOLT M6x25 30006-060025870 | Skladem | 15,54 Kč | ||
| 36 | STEERING WHEEL LOGO 5HYV-190030-6000 | Skladem | 170,90 Kč | ||
| 37 | STEERING WHEEL SMALL LOGO 5HYV-190040-6000 | Skladem | 124,29 Kč | ||
| 38 | STEERING ROD SUB ASSY 5HYV-105000-6000-24 | Skladem | 916,65 Kč | ||
| 39 | THICK HEX NUT 5HYV-105000-6000-23 | Skladem | 77,68 Kč | ||
| 40 | CONNECTING ROD 5HYV-105000-6001-22 | Skladem | 838,97 Kč | ||
| 41 | THIN HEX NUT 5HYV-105000-6000-21 | Skladem | 77,68 Kč | ||
