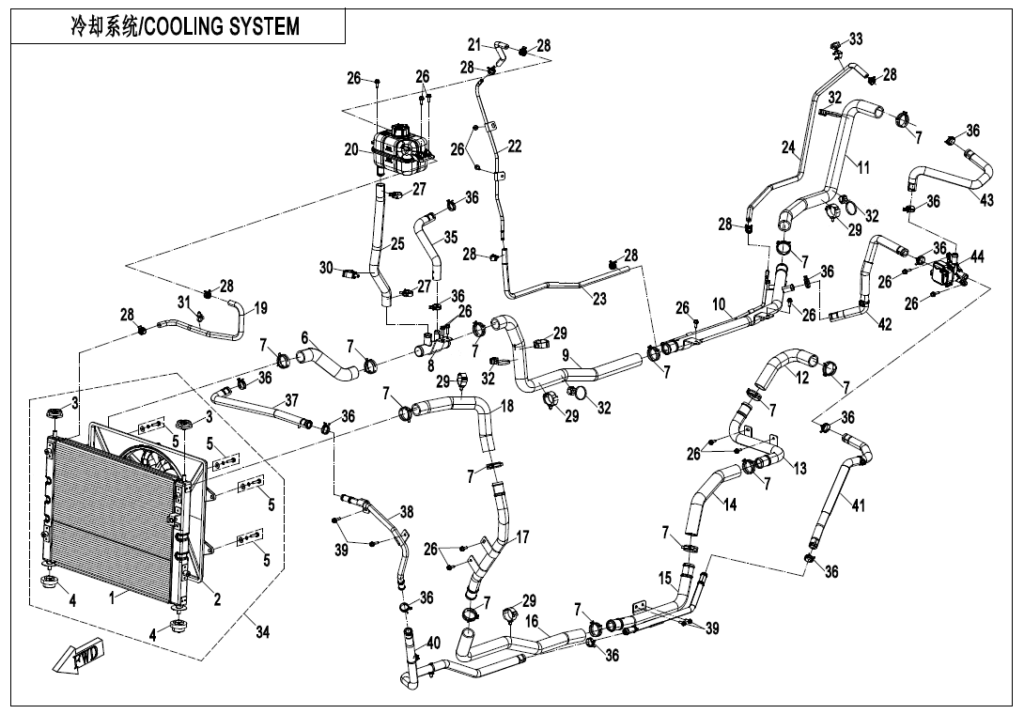

F18-B COOLING SYSTEM(FOR AIR HEATER SYSTEM)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | RADIATOR 5HYV-181120-6001 | Skladem | |||
| 2 | FAN 5HYV-181130-6001 | Skladem | |||
| 3 | UPPER INSULATION 5HYV-181140-6000 | Skladem | 636,99 Kč | ||
| 4 | LOWER INSULATION 5HYV-181150-6000 | Skladem | 636,99 Kč | ||
| 5 | BOLT ASSY 5HYV-181100-6000-20 | Skladem | |||
| 6 | RADIATOR INLET PIPE 5HYV-182040-6000 | Skladem | 233,05 Kč | ||
| 7 | CLAMP B38 5HYV-187002-6000 | Skladem | |||
| 8 | 4-WAY AL PIPE 5HYV-355090-9000 | Skladem | |||
| 9 | CONNECTING TUBE 1 5HYV-182500-6000 | Skladem | 699,14 Kč | ||
| 10 | CONNECTING AL PIPE 5HYV-355080-9000 | Skladem | |||
| 11 | ENGINE WATER INTLET PIPE 5HYV-182050-6000 | Skladem | 699,14 Kč | ||
| 12 | ENGINE WATER OUTLET PIPE 5HYV-182060-6000 | Skladem | 248,58 Kč | ||
| 13 | CONNECTING ALUM PIPE 1 5HYV-183500-6000 | Skladem | 419,48 Kč | ||
| 14 | CONNECTING TUBE 2 5HYV-182510-6000 | Skladem | |||
| 15 | HEATER INTAKE PIPE 2 5HYV-352120-9000 | Skladem | |||
| 16 | CONNECTING TUBE 3 5HYV-182520-6000 | Skladem | 574,85 Kč | ||
| 17 | RADIATOR INLET ALUM PIPE 5HYV-183030-6000 | Skladem | 481,63 Kč | ||
| 18 | RADIATOR INLET PIPE 5HYV-182030-6000 | Skladem | 357,34 Kč | ||
| 19 | RADIATOR AIR REMOVAL PIPE 5HYV-182400-6001 | Skladem | |||
| 20 | ENGINE EXPANSION BOX 5HYV-184030-6000 | Skladem | 978,79 Kč | ||
| 21 | CONNECTING TUBE 4 5HYV-182530-6001 | Skladem | |||
| 22 | ENGINE REMOVAL ALUM PIPE 5HYV-183420-6000 | Skladem | 248,58 Kč | ||
| 23 | CONNECTING TUBE 5 5HYV-182540-6001 | Skladem | |||
| 24 | ENGINE REMOVAL PIPE 5HYV-182420-6001 | Skladem | |||
| 25 | ENGINE FEED PIPE 5HYV-182410-6000 | Skladem | 310,73 Kč | ||
| 26 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 27 | CLAMP B28 6KM0-180004 | Skladem | 101,64 Kč | ||
| 28 | CLAMP 30605-114060 | Skladem | |||
| 29 | CLASP 37 5HYV-188003-6000 | Skladem | 31,07 Kč | ||
| 30 | CLASP 27 5HYV-188002-6000 | Skladem | 31,07 Kč | ||
| 31 | CLASP 15 5HYV-188001-6000 | Skladem | 31,07 Kč | ||
| 32 | CLIP 15-37 5HYV-188004-6000 | Skladem | 31,07 Kč | ||
| 33 | CLIP 15-20 5HYV-188005-6000 | Skladem | 31,07 Kč | ||
| 34 | COOLING MODULE 5HYV-181100-6001 | Skladem | 20 181,78 Kč | ||
| 35 | HEATER OUTLET PIPE 5HYV-352200-9000 | Skladem | |||
| 36 | CLAMP 30601-223050 | Skladem | 46,61 Kč | ||
| 37 | HEATER INTAKE HOSE 2 5HYV-352107-9000 | Skladem | |||
| 38 | HEATER INTAKE PIPE 1 5HYV-352110-9000 | Skladem | |||
| 39 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 40 | HEATER INTAKE HOSE 1 5HYV-352105-9000 | Skladem | |||
| 41 | 3-WAY VALVE OUTLET HOSE 2 5HYV-352103-9000 | Skladem | |||
| 42 | 3-WAY VALVE OUTLET HOSE 1 5HYV-352102-9000 | Skladem | |||
| 43 | 3-WAY VALVE INTAKE HOSE 5HYV-352101-9000 | Skladem | |||
| 44 | 3-WAY ELECTRONIC WATER VALVE 5HYV-354600-9000 | Skladem | |||
