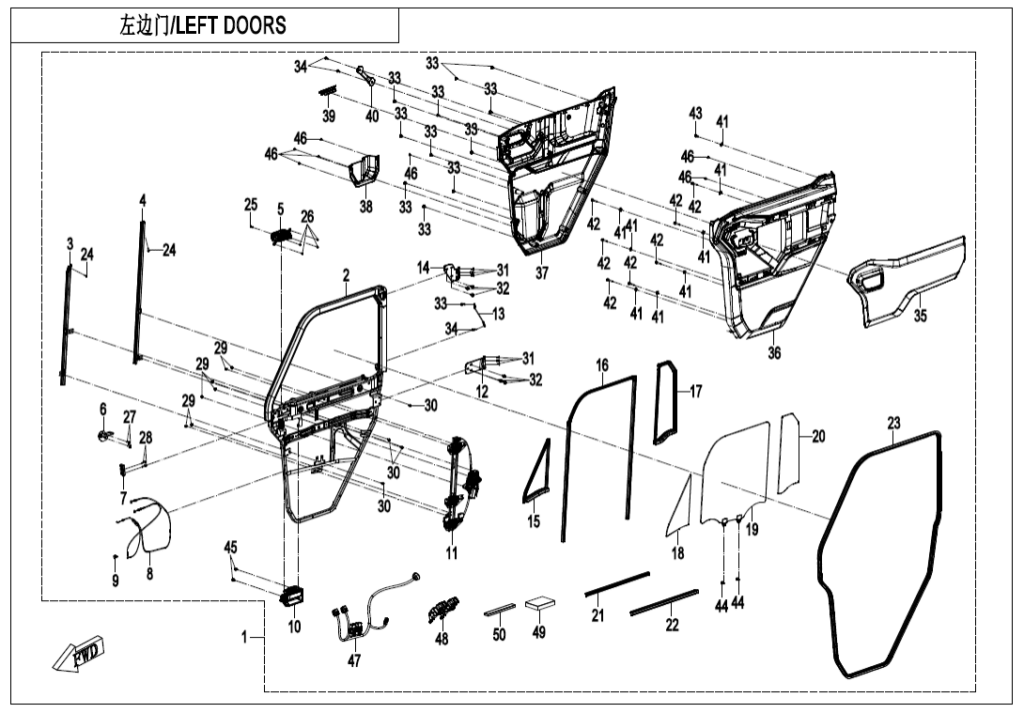

F80-4 LEFT DOORS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT LH DOOR ASSY 5HYV-807100-9001-0RT00 | Skladem | |||
| 1 | FRONT LH SIDE DOOR ASSY 5HYV-807100-9001-0RE00 | Skladem | |||
| 1 | U10 PRO Dveře s elektricky ovládaným oknem (zelené) 5HYV-807100-9001-0GG00 | Skladem | 32 949,99 Kč | ||
| 2 | FRONT LH DOOR FRAME ASSY 5HYV-372100-9000-0BP00 | Skladem | 12 056,25 Kč | ||
| 3 | FRONT LH DOOR FRONT GUIDE RAIL ASSY 5HYV-372400-9000 | Skladem | 1 662,39 Kč | ||
| 4 | FRONT LH DOOR REAR GUIDE RAIL ASSY 5HYV-372500-9000 | Skladem | 1 662,39 Kč | ||
| 5 | FRONT LH DOOR INSIDE HANDLE ASSY 5HYV-372001-9000 | Skladem | 1 553,64 Kč | ||
| 6 | FRONT LH DOOR LATCH ASSY 5HYV-377000-9000 | Skladem | 1 382,74 Kč | ||
| 7 | LH DOOR LOCK KIT 5BWV-372060-5100 | Skladem | 1 398,28 Kč | ||
| 8 | FRONT DOOR CABLE ASSY 5HYV-372002-9000 | Skladem | 357,34 Kč | ||
| 9 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 10 | FRONT LH DOOR OUTSIDE HANDLE ASSY 5HYV-372600-9000 | Skladem | 2 252,78 Kč | ||
| 11 | FRONT LH DOOR GLASS LIFTER ASSY 5HYV-372003-9000 | Skladem | 2 501,36 Kč | ||
| 12 | FRONT LH DOOR LOWER HINGE ASSY 5HYV-372300-9000 | Skladem | 1 149,69 Kč | ||
| 13 | LIMIT CABLE ASSY 5HYV-372030-9000 | Skladem | 124,29 Kč | ||
| 14 | FRONT LH DOOR UPPER HINGE ASSY 5HYV-372200-9000 | Skladem | 1 149,69 Kč | ||
| 15 | FRONT LH DOOR FRONT CORNER SEAL STRIP 5HYV-372011-9000 | Skladem | 761,28 Kč | ||
| 16 | FRONT LH DOOR GLASS GUIDE CHANNEL 5HYV-372010-9000 | Skladem | 1 258,45 Kč | ||
| 17 | FRONT LH DOOR REAR CORNER SEAL STRIP 5HYV-372012-9000 | Skladem | 838,97 Kč | ||
| 18 | FRONT LH DOOR FRONT CORNER WINDOW GLASS 5HYV-372005-9000 | Skladem | 761,28 Kč | ||
| 19 | FRONT LH DOOR GLASS ASSY 5HYV-372004-9000 | Skladem | 1 460,42 Kč | ||
| 20 | FRONT LH DOOR REAR CORNER WINDOW GLASS 5HYV-372006-9000 | Skladem | 761,28 Kč | ||
| 21 | FRONT LH DOOR INNER BELT LINE 5HYV-372009-9000 | Skladem | 838,97 Kč | ||
| 22 | FRONT DOOR OUTER BELT LINE 5HYV-372008-9000 | Skladem | 838,97 Kč | ||
| 23 | FRONT DOOR SEAL STRIP 5HYV-372007-9000 | Skladem | 761,28 Kč | ||
| 24 | SCREW M5x10 30105-050010410 | Skladem | 15,54 Kč | ||
| 25 | Šroub (vrut) 30102-050012870 | Skladem | 15,54 Kč | ||
| 26 | SELF-TAPPING SCREW 30110-420095470 | Skladem | 15,54 Kč | ||
| 27 | SCREW M8x25 30121-080025160 | Skladem | 31,07 Kč | ||
| 28 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 29 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 30 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 31 | SCREW 30122-080016870 | Skladem | 15,54 Kč | ||
| 32 | Šroub 30006-080020870 | Skladem | 15,54 Kč | ||
| 33 | INNER HEX BOLT M6x14 5BWV-040001-5000 | Skladem | 15,54 Kč | ||
| 34 | INNER HEX BOLT M6x18 5BWV-040005-5000 | Skladem | |||
| 35 | FRONT LH DOOR DECO PLATE 5HYV-372014-9000-0RE00 | Skladem | |||
| 35 | FRONT LH DOOR DECO PLATE 5HYV-372014-9000-0RT00 | Skladem | 2 454,75 Kč | ||
| 35 | FRONT LH DOOR DECO PLATE 5HYV-372014-9000-0GG00 | Skladem | 2 454,75 Kč | ||
| 36 | FRONT LH DOOR OUTER PLATE 5HYV-372013-9000 | Skladem | 1 879,90 Kč | ||
| 37 | FRONT LH DOOR INNER PLATE 5HYV-372015-9000 | Skladem | 1 879,90 Kč | ||
| 38 | FRONT LH DOOR GLOVE BOX 5HYV-372016-9000 | Skladem | 233,05 Kč | ||
| 39 | FRONT LH DOOR SWITCH BRACKET 5HYV-372019-9000-0HQ00 | Skladem | 636,99 Kč | ||
| 40 | FRONT LH DOOR HANDLE 5HYV-372017-9000 | Skladem | 1 040,94 Kč | ||
| 41 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 42 | BOLT M6x35 30006-060035810 | Skladem | 15,54 Kč | ||
| 43 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 44 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 45 | Šroub 30006-080012810 | Skladem | 15,54 Kč | ||
| 46 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 47 | FRONT LH DOOR CABLE 5HYV-150131-9001 | Skladem | 2 392,61 Kč | ||
| 48 | LH GLASS LIFTER SWITCH 5HYV-169371-6000 | Skladem | 466,09 Kč | ||
| 49 | SEAL SPONGE 5HYV-046002-9000 | Skladem | 31,07 Kč | ||
| 50 | TOP ROOF REAR SEAL SPONGE 5HYV-260223-9000 | Skladem | 15,54 Kč | ||
