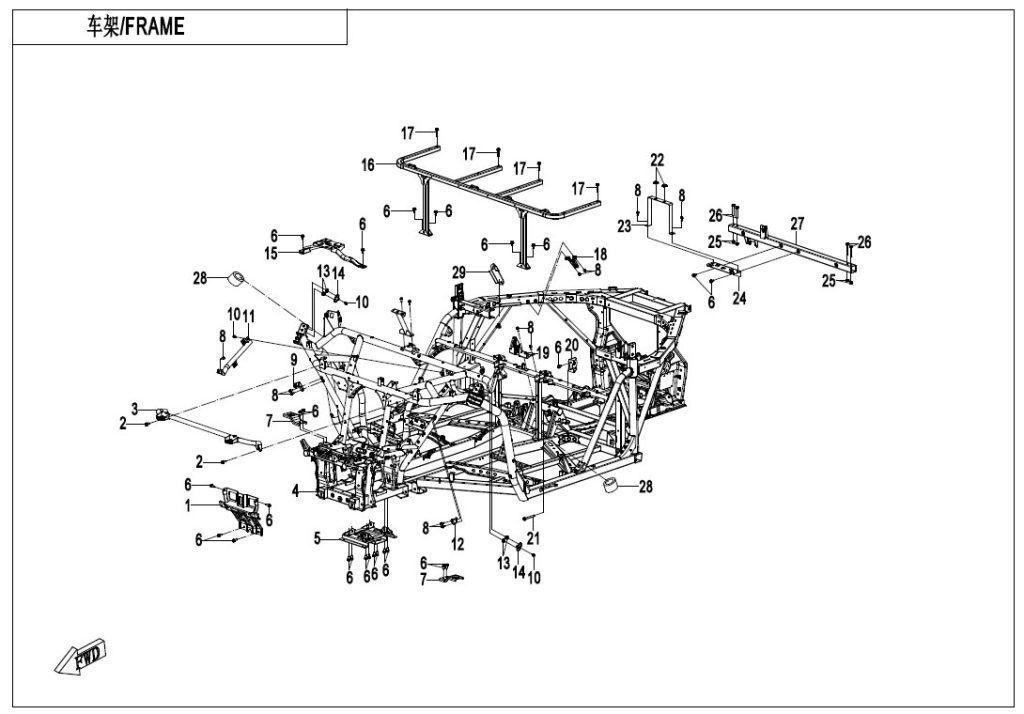

F03-B FRAME(BASIC)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | WINCH BRACKET ASSY 5HYV-030020-6000 | Skladem | 885,57 Kč | ||
| 2 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 3 | RESERVOIR UPPER BRACKET ASSY 5HYV-030100-6000 | Skladem | 668,07 Kč | ||
| 4 | FRAME ASSY 5HYV-031000-1R00-0BP00 | Skladem | |||
| 5 | BRACKET, FRONT GEAR CASE 5HY0-030600 | Skladem | 730,21 Kč | ||
| 6 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 7 | RESERVOIR LOWER ADAPTER BRACKET 5HYV-030008-6000 | Skladem | 108,75 Kč | ||
| 8 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 9 | REFLECTOR RH BRACKET 5HYV-030006-6000-0BP00 | Skladem | 62,15 Kč | ||
| 10 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 11 | EPS BRACKET 5HYV-030010-6000 | Skladem | 310,73 Kč | ||
| 12 | REFLECTOR LH BRACKET 5HYV-030009-6000-0BP00 | Skladem | 62,15 Kč | ||
| 13 | Matice 30225-102810 | Skladem | 31,07 Kč | ||
| 14 | CAB FRONT BOLT BRACKET 5HYV-030062-6000 | Skladem | 31,07 Kč | ||
| 15 | AIR FILTER BRACKET 5HYV-030080-6000 | Skladem | 574,85 Kč | ||
| 16 | SEAT BRACKET 5HYV-030200-6000 | Skladem | 2 967,45 Kč | ||
| 16 | SEAT BRACKET 5HYV-030200-6001 | Skladem | 2 796,55 Kč | ||
| 17 | Šroub 30006-080040810 | Skladem | 31,07 Kč | ||
| 18 | MOUNT SEAT, REGULATOR 5HY0-030410 | Skladem | 155,36 Kč | ||
| 19 | WATER PIPE BRACKET 1 5HYV-030030-6000 | Skladem | 155,36 Kč | ||
| 20 | FRONT LH SUSPENSION LH BRACKET 5HYV-030061-6000 | Skladem | 139,83 Kč | ||
| 21 | BOLT M8x75 30006-080075810 | Skladem | 46,61 Kč | ||
| 22 | RUBBER WASHER, BATTERY 9010-030005 | Skladem | 15,54 Kč | ||
| 23 | BATTERY TIE BAND 5HYV-030821-6000 | Skladem | 108,75 Kč | ||
| 24 | BATTERY BASE ASSY 5HYV-030600-6000 | Skladem | 233,05 Kč | ||
| 24 | BATTERY BASE ASSY 5HYV-030600-6001 | Skladem | 233,05 Kč | ||
| 25 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 26 | Šroub 30006-080060810 | Skladem | 31,07 Kč | ||
| 27 | REINFORCEMENT PIPE ASSY 5HYV-030500-1R00 | Skladem | 1 056,48 Kč | ||
| 28 | SMALL FENDER SEAL SPONGE 5HYV-046001-9000 | Skladem | 93,22 Kč | ||
| 29 | MANUAL CARGO BOX CABLE HOLDER 5HYV-030700-1R00 | Skladem | 248,58 Kč | ||
