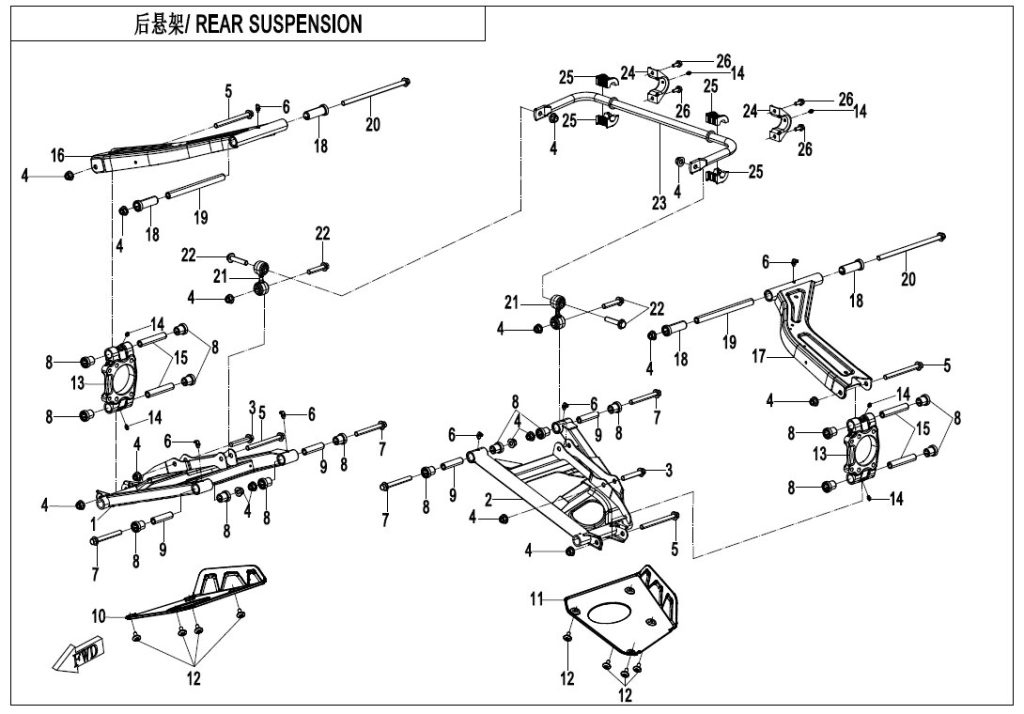

F06-1 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | REAR LOWER RH SWING ARM ASSY 5HYV-060410-6000-0BP00 | Skladem | 5 266,84 Kč | ||
| 2 | REAR LOWER LH SWING ARM ASSY 5HYV-060210-6000-0BP00 | Skladem | 5 266,84 Kč | ||
| 3 | BOLT M10x1.25×70 30001-122070160 | Skladem | 77,68 Kč | ||
| 4 | NUT 30204-122110 | Skladem | 31,07 Kč | ||
| 5 | BOLT 30024-122130110 | Skladem | 108,75 Kč | ||
| 6 | GREASE NOZZLE 3121400 | Skladem | 31,07 Kč | ||
| 7 | Šroub 30024-122100110 | Není skladem | 77,68 Kč | ||
| 8 | SHORT BUSHING, SWING ARM 5SYV-060202-6000 | Skladem | 108,75 Kč | ||
| 9 | SHORT MIDDLE SPACER, SWING ARM 5SYV-060201-6000 | Skladem | 159,72 Kč | ||
| 10 | REAR RH SWING ARM GUARD 5HYV-060401-6000 | Skladem | 310,73 Kč | ||
| 11 | REAR LH SWINGARM GUARD 5HYV-060201-6000 | Skladem | 310,73 Kč | ||
| 12 | INNER HEX BOLT M6x14 5BWV-040001-5000 | Skladem | 15,54 Kč | ||
| 13 | REAR WHEEL SHAFT CARRIER 5HYV-060703-6000 | Skladem | 2 237,24 Kč | ||
| 14 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 15 | REAR WHEEL SHAFT CARRIER MIDDLE SPACER 5HYV-060701-6000 | Skladem | 77,68 Kč | ||
| 16 | REAR UPPER RH SWING ARM ASSY 5HYV-060310-6000-0BP00 | Skladem | 1 942,05 Kč | ||
| 17 | REAR UPPER LH SWING ARM ASSY 5HYV-060110-6000-0BP00 | Skladem | 1 942,05 Kč | ||
| 18 | DAMPING SLEEVE, FRONT UPPER SWING ARM 5BY0-050102 | Skladem | 139,83 Kč | ||
| 19 | MIDDLE SPACER, SWING ARM 5SYV-050101-6000 | Není skladem | 201,97 Kč | ||
| 20 | SHAFT, SWNG ARM 5SYV-050103-6000 | Skladem | 186,44 Kč | ||
| 21 | SWAY BAR BALL PIN ASSY 5HYV-060700-6000 | Skladem | 1 180,77 Kč | ||
| 22 | BOLT M10x1.25×60 30001-122060160 | Skladem | 101,56 Kč | ||
| 23 | REAR SWAY BAR ASSY 5HYV-060610-6000 | Skladem | 1 444,89 Kč | ||
| 24 | SWAY BAR PRESS COVER 9AWV-060610-8000 | Skladem | 116,16 Kč | ||
| 25 | SUPPORT, STABILIZER BAR 7000-060003 | Skladem | 101,56 Kč | ||
| 26 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
