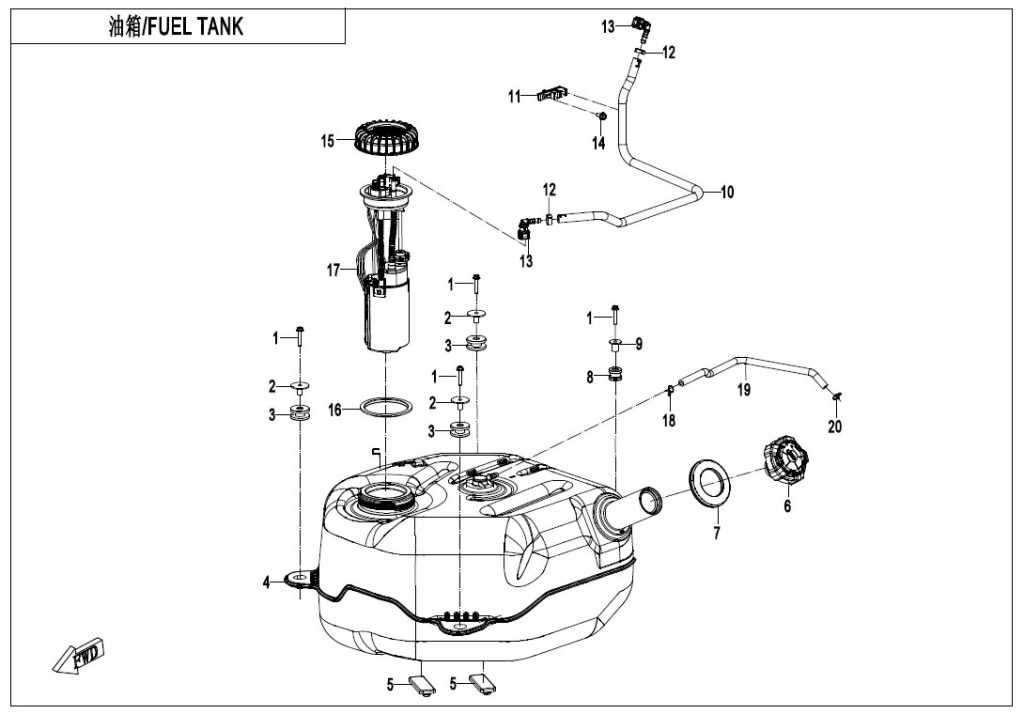

F12-B FUEL TANK(FOR NON FUEL EVAPORATION SYSTEM)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 2 | LINER 5HYV-120103-6000 | Skladem | 46,61 Kč | ||
| 3 | CUSHION SLEEVE ASSY 5HYV-120104-6000 | Skladem | 31,07 Kč | ||
| 4 | PLASTIC FUEL TANK ASSY 5HYV-120100-6000 | Skladem | 5 297,91 Kč | ||
| 5 | DAMPER, FUEL TANK 9AWA-120001-00001 | Skladem | 46,61 Kč | ||
| 6 | CAP, FUEL TANK 9DS#-120300-6000 | Skladem | 310,73 Kč | ||
| 7 | RUBBER, FUEL TANK FILLER 9AW#-120002-2500 | Skladem | 101,56 Kč | ||
| 8 | DAMPER，FUEL TANK 7020-120103 | Skladem | 15,54 Kč | ||
| 9 | CUSHION LINER, FUEL TANK 7020-120160 | Skladem | 31,07 Kč | ||
| 10 | HIGH-PRESSURE FUEL HOSE ASSY 5HYV-120210-6000 | Skladem | 947,72 Kč | ||
| 11 | FLUID PIPE BRACKET 5HYV-120004-6000 | Skladem | 31,07 Kč | ||
| 12 | CLAMP φ16.6 7020-120006 | Skladem | 46,61 Kč | ||
| 13 | QUICK JOINT 6090-120210 | Skladem | 217,62 Kč | ||
| 14 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 15 | CAP, FUEL PUMP 9AWV-120101-2500 | Skladem | 188,60 Kč | ||
| 16 | SEAL RING, FUEL PUMP 9AWV-120102-2500 | Skladem | 72,54 Kč | ||
| 17 | FUEL PUMP ASSY 5BWV-150900-5000 | Skladem | 4 676,46 Kč | ||
| 18 | CLAMP A12 30601-112010 | Skladem | 15,54 Kč | ||
| 19 | FUEL TANK BREATHER HOSE 5HYV-360005-6000 | Skladem | 62,15 Kč | ||
| 20 | CLAMP A11 30601-111010 | Skladem | 15,54 Kč | ||
