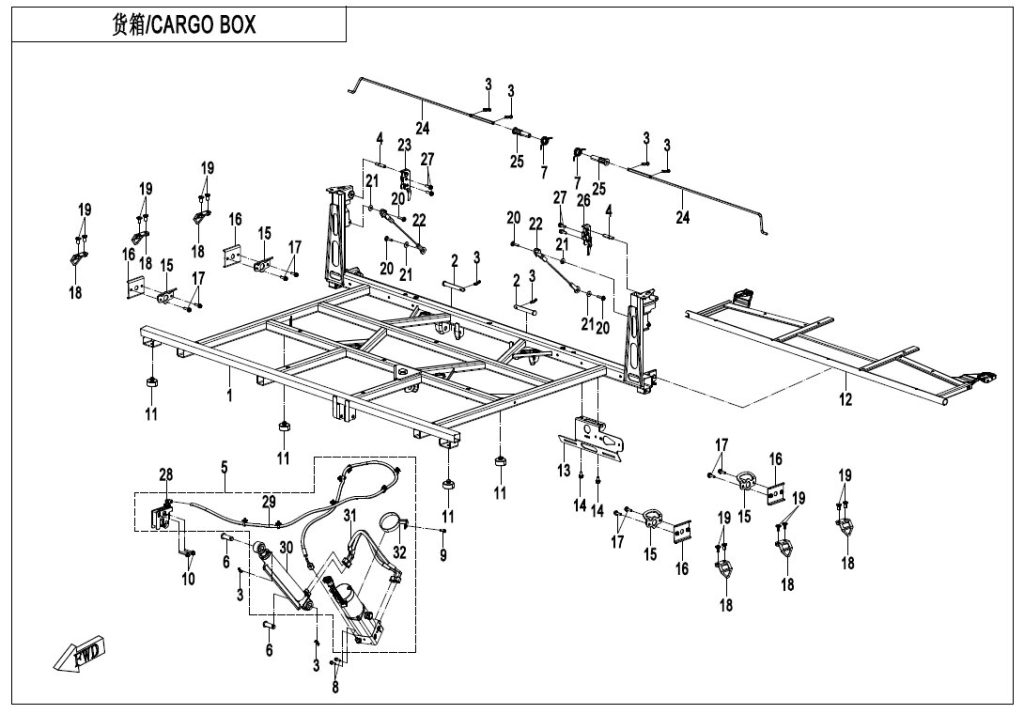

F22-2-A-V2 CARGO BOX(PREMIUM)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | CARGO BOX SKELETON ASSY 5HYV-221000-6000 | Skladem | 11 061,92 Kč | ||
| 1 | CARGO BOX SKELETON ASSY 5HYV-221000-6002 | Skladem | 10 052,05 Kč | ||
| 2 | PIN SHAFT 5HYV-220011-6000 | Skladem | 62,15 Kč | ||
| 3 | PIN SHAFT 5HY#-220008-1000 | Skladem | 15,54 Kč | ||
| 4 | SCREW, PIN SHAFT 5HY#-221601-1000 | Není skladem | 46,61 Kč | ||
| 5 | HUDRAULIC LIFT 5HYV-222080-4100 | Skladem | 36 184,28 Kč | ||
| 6 | PIN SHAFT SCREW 5HYV-220012-6000 | Skladem | 62,15 Kč | ||
| 7 | LEVER SPRING 5HYV-220015-6000 | Skladem | 31,07 Kč | ||
| 8 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 9 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 10 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 11 | RUBBER MAT 5HY0-220004 | Skladem | 46,61 Kč | ||
| 12 | CARGO BOX DOOR STEERING SHAFT 5HYV-220003-6002 | Skladem | 2 827,62 Kč | ||
| 13 | REAR LICENCE BRACKET 5HYV-220010-6000 | Skladem | 217,51 Kč | ||
| 14 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 15 | HOOK,BAND 9030-220004 | Skladem | 62,15 Kč | ||
| 16 | MOUNTING BRACKET，HOOK 7030-221140 | Skladem | 77,68 Kč | ||
| 17 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
| 18 | HOOK, CARGO BOX 5HY0-222010 | Skladem | 201,97 Kč | ||
| 19 | BOLT 5HYV-040001-6000 | Skladem | 15,54 Kč | ||
| 20 | CABLE BOLT, TAIL BOX 7030-010508 | Skladem | 31,07 Kč | ||
| 21 | Podložka 30305-060112 | Skladem | 15,54 Kč | ||
| 22 | FIXING CABLE, TAIL BOX 7030-010500-10000 | Skladem | 348,19 Kč | ||
| 23 | REAR RH DOOR LOCK 5HYV-222070-6000 | Skladem | 279,66 Kč | ||
| 24 | CARGO BOX TORSION BAR 5HYV-220002-6000 | Skladem | 124,29 Kč | ||
| 25 | SLEEVE, WRENCH 5HY0-223035 | Skladem | 15,54 Kč | ||
| 26 | REAR LH DOOR LOCK 5HYV-222060-6000 | Skladem | 279,66 Kč | ||
| 27 | BOLT M6x22 30006-060022810 | Skladem | 15,54 Kč | ||
| 28 | HYDRAULIC LOCK 5HYV-222083-4100 | Skladem | 3 045,13 Kč | ||
| 29 | HYDRAULIC LOCK OIL PIPE 5HYV-222084-4100 | Skladem | 2 221,71 Kč | ||
| 30 | CYLINDER 5HYV-222081-4100 | Skladem | 9 352,91 Kč | ||
| 31 | CYLINDER OIL PIPE 5HYV-222085-4100 | Skladem | 1 072,01 Kč | ||
| 32 | CLAMP 5HYV-222080-4100-20 | Skladem | 248,58 Kč | ||
