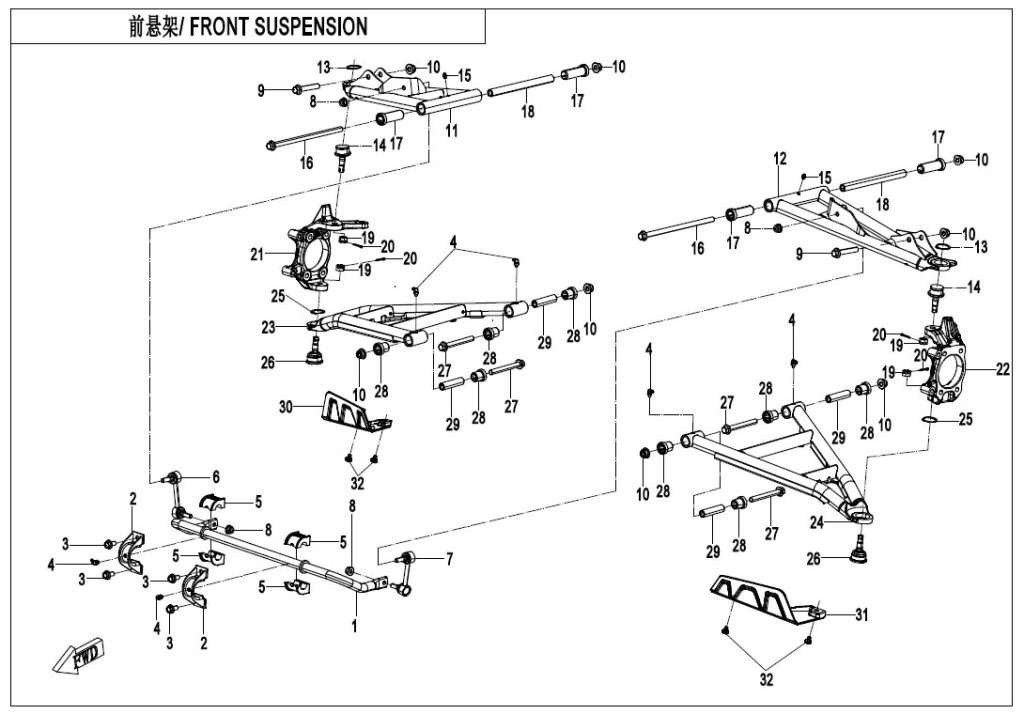

F05-1 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT SWAY BAR ASSY 5HYV-050610-6000 | Skladem | 1 398,28 Kč | ||
| 2 | SWAY BAR PRESS COVER 5GYV-050620-1000 | Skladem | 139,83 Kč | ||
| 2 | SWAY BAR PRESS COVER 5GYV-050620-1001 | Skladem | 139,83 Kč | ||
| 3 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 4 | GREASE NOZZLE 3121400 | Skladem | 31,07 Kč | ||
| 5 | SUPPORT, STABILIZER BAR 7000-060003 | Skladem | 101,56 Kč | ||
| 6 | RH BALL PIN ASSY 5HYV-050660-6000 | Skladem | 683,60 Kč | ||
| 7 | LH BALL PIN ASSY 5HYV-050650-6000 | Skladem | 683,60 Kč | ||
| 8 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 9 | BOLT M10x1.25×70 30001-122070160 | Skladem | 77,68 Kč | ||
| 10 | NUT 30204-122110 | Skladem | 31,07 Kč | ||
| 11 | FRONT UPPER RH SWING ARM 5HYV-050310-6001-0BP00 | Skladem | 3 076,21 Kč | ||
| 12 | FRONT UPPER LH SWING ARM 5HYV-050110-6001-0BP00 | Skladem | 3 076,21 Kč | ||
| 13 | CIRCLIPS FOR SHAFT32 30801-03205 | Skladem | 15,54 Kč | ||
| 14 | MAIN PIN COMP. 9030-050600-10000 | Skladem | 1 009,87 Kč | ||
| 15 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 16 | SHAFT, SWNG ARM 5SYV-050103-6000 | Skladem | 186,44 Kč | ||
| 17 | DAMPING SLEEVE, FRONT UPPER SWING ARM 5BY0-050102 | Skladem | 139,83 Kč | ||
| 18 | MIDDLE SPACER, SWING ARM 5SYV-050101-6000 | Není skladem | 201,97 Kč | ||
| 19 | Matice 30219-122810 | Skladem | 31,07 Kč | ||
| 20 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 21 | RH STEERING KNUCKLE 5HYV-050801-6000 | Skladem | 3 153,89 Kč | ||
| 22 | LH STEERING KNUCKLE 5HYV-050701-6000 | Skladem | 3 153,89 Kč | ||
| 23 | FRONT LOWER RH SWING ARM ASSY 5HYV-050410-6000-0BP00 | Skladem | 3 868,56 Kč | ||
| 24 | FRONT LOWER LH SWING ARM ASSY 5HYV-050210-6000-0BP00 | Skladem | 3 868,56 Kč | ||
| 25 | CIRCLIPS FOR SHAFT 34 30801-03405 | Skladem | 15,54 Kč | ||
| 26 | BALL PIN COMP. 9060-050900-10000 | Skladem | 1 009,87 Kč | ||
| 27 | Šroub 30024-122100110 | Není skladem | 77,68 Kč | ||
| 28 | SHORT BUSHING, SWING ARM 5SYV-060202-6000 | Skladem | 108,75 Kč | ||
| 29 | SHORT MIDDLE SPACER, SWING ARM 5SYV-060201-6000 | Skladem | 159,72 Kč | ||
| 30 | FRONT RH SWING ARM GUARD 5HYV-050401-6000 | Skladem | 139,83 Kč | ||
| 31 | FRONT LH SWING ARM GUARD 5HYV-050201-6000 | Skladem | 139,83 Kč | ||
| 32 | INNER HEX BOLT M6x14 5BWV-040001-5000 | Skladem | 15,54 Kč | ||
