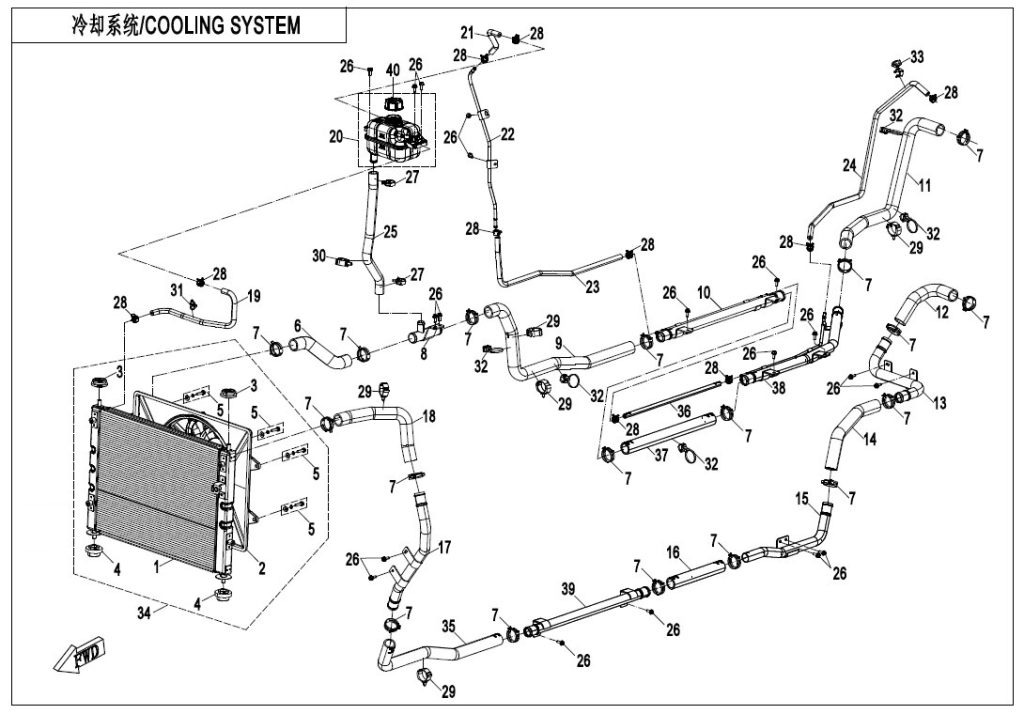

F18-V2 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | RADIATOR 5HYV-181120-6001 | Skladem | 2 920,84 Kč | ||
| 2 | FAN 5HYV-181130-6001 | Skladem | 2 501,36 Kč | ||
| 3 | UPPER INSULATION 5HYV-181140-6000 | Skladem | 636,99 Kč | ||
| 4 | LOWER INSULATION 5HYV-181150-6000 | Skladem | 636,99 Kč | ||
| 5 | BOLT ASSY 5HYV-181100-6000-20 | Skladem | 124,29 Kč | ||
| 6 | RADIATOR INLET PIPE 5HYV-182040-6000 | Skladem | 233,05 Kč | ||
| 7 | CLAMP B38 5HYV-187002-6000 | Skladem | 46,61 Kč | ||
| 8 | T-JOINT 5HYV-185070-6000 | Skladem | 233,05 Kč | ||
| 9 | CONNECTING TUBE 1 5HYV-182500-6000 | Skladem | 699,14 Kč | ||
| 10 | CONNECTING ALU PIPE 2 5SYV-183510-8000 | Skladem | |||
| 11 | ENGINE WATER INTLET PIPE 5HYV-182050-6000 | Skladem | 699,14 Kč | ||
| 12 | ENGINE WATER OUTLET PIPE 5HYV-182060-6000 | Skladem | 248,58 Kč | ||
| 13 | CONNECTING ALUM PIPE 1 5HYV-183500-6000 | Skladem | 419,48 Kč | ||
| 14 | CONNECTING TUBE 2 5HYV-182510-6000 | Skladem | 372,87 Kč | ||
| 15 | ENGINE OUTLET ALUM PIPE 5SYV-183060-8000 | Skladem | 388,41 Kč | ||
| 16 | CONNECTING TUBE 7 5SYV-182560-8000 | Skladem | 170,90 Kč | ||
| 17 | RADIATOR INLET ALUM PIPE 5HYV-183030-6000 | Skladem | 481,63 Kč | ||
| 18 | RADIATOR INLET PIPE 5HYV-182030-6000 | Skladem | 357,34 Kč | ||
| 19 | RADIATOR AIR REMOVAL PIPE 5HYV-182400-6001 | Skladem | 186,44 Kč | ||
| 20 | ENGINE EXPANSION BOX 5HYV-184030-6000 | Skladem | 978,79 Kč | ||
| 21 | CONNECTING TUBE 4 5HYV-182530-6001 | Skladem | 108,75 Kč | ||
| 22 | ENGINE REMOVAL ALUM PIPE 5HYV-183420-6000 | Skladem | 248,58 Kč | ||
| 23 | CONNECTING TUBE 5 5HYV-182540-6001 | Skladem | 233,05 Kč | ||
| 24 | ENGINE REMOVAL PIPE 5HYV-182420-6001 | Skladem | 310,73 Kč | ||
| 25 | ENGINE FEED PIPE 5HYV-182410-6000 | Skladem | 310,73 Kč | ||
| 26 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 27 | CLAMP B28 6KM0-180004 | Skladem | 101,64 Kč | ||
| 28 | CLAMP 30605-114060 | Skladem | 15,54 Kč | ||
| 29 | CLASP 37 5HYV-188003-6000 | Skladem | 31,07 Kč | ||
| 30 | CLASP 27 5HYV-188002-6000 | Skladem | 31,07 Kč | ||
| 31 | CLASP 15 5HYV-188001-6000 | Skladem | 31,07 Kč | ||
| 32 | CLIP 15-37 5HYV-188004-6000 | Skladem | 31,07 Kč | ||
| 33 | CLIP 15-20 5HYV-188005-6000 | Skladem | 31,07 Kč | ||
| 34 | COOLING MODULE 5HYV-181100-6001 | Skladem | 20 181,78 Kč | ||
| 35 | CONNECTING ALU PIPE 3 5SYV-183520-8000 | Skladem | |||
| 36 | CONNECTING TUBE 8 5SYV-182570-8001 | Skladem | 139,83 Kč | ||
| 37 | CONNECTING TUBE 6 5SYV-182550-8000 | Skladem | 295,19 Kč | ||
| 38 | ENGINE INLET ALUM PIPE 5SYV-183050-8000 | Skladem | |||
| 39 | CONNECTING TUBE 3 5SYV-182520-8000 | Skladem | 543,77 Kč | ||
| 40 | PRESSURE CAP 5HYV-184032-6000-21 | Skladem | 295,19 Kč | ||
