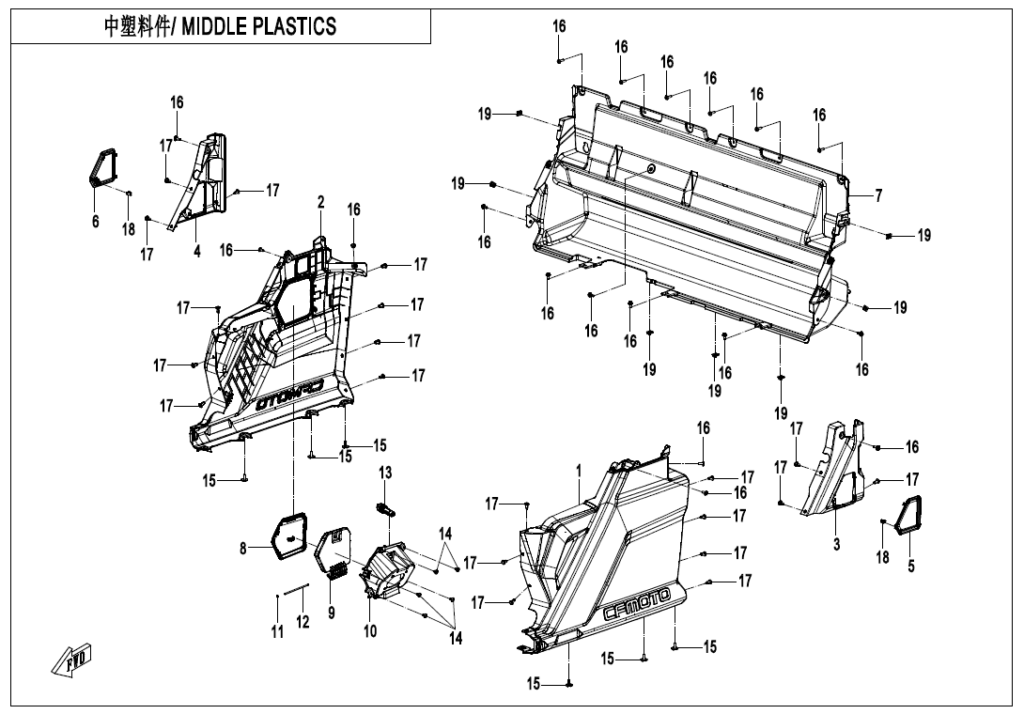

F04-4 MIDDLE PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR LH PANEL 5ASV-042023-5001 | Skladem | 1 336,13 Kč | ||
| 02 | REAR RH PANEL 7DHV-043032-1000 | Skladem | 1 009,87 Kč | ||
| 03 | REAR LH UPPER PANEL 5ASV-042021-6000 | Skladem | 170,90 Kč | ||
| 04 | REAR RH UPPER PANEL 5ASV-042022-6000 | Skladem | 170,90 Kč | ||
| 05 | LH SERVICE COVER 5ASV-042031-6000 | Skladem | 77,68 Kč | ||
| 06 | RH SERVICE COVER 5ASV-042032-6000 | Skladem | 77,68 Kč | ||
| 07 | REAR BAFFLE, SEAT 7DHV-044414-1000 | Skladem | 2 485,82 Kč | ||
| 08 | CHARGING PORT COVER 7DHV-045543-1000-0PX00 | Skladem | 93,22 Kč | ||
| 09 | CHARGING PORT HINGE 7DHV-045544-1001 | Skladem | 93,22 Kč | ||
| 10 | CHARGING PORT BASE 7DHV-045542-1001 | Skladem | 155,36 Kč | ||
| 11 | COTTER CIRCLIP 3 30802-00303 | Skladem | 15,54 Kč | ||
| 12 | PIN SHAFT, CHARGING PORT CAP EAEV-042015-1000 | Skladem | 46,61 Kč | ||
| 13 | STORAGE BOX COVER ACTUATOR 7DHV-045576-1000 | Skladem | 295,19 Kč | ||
| 14 | INNER HEX SLEF-TAPPING SCREW ST4.8×13 5BWV-040015-5000 | Skladem | 15,54 Kč | ||
| 15 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
| 16 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 17 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 18 | CLASP 8080-000001 | Skladem | 15,54 Kč | ||
| 19 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
