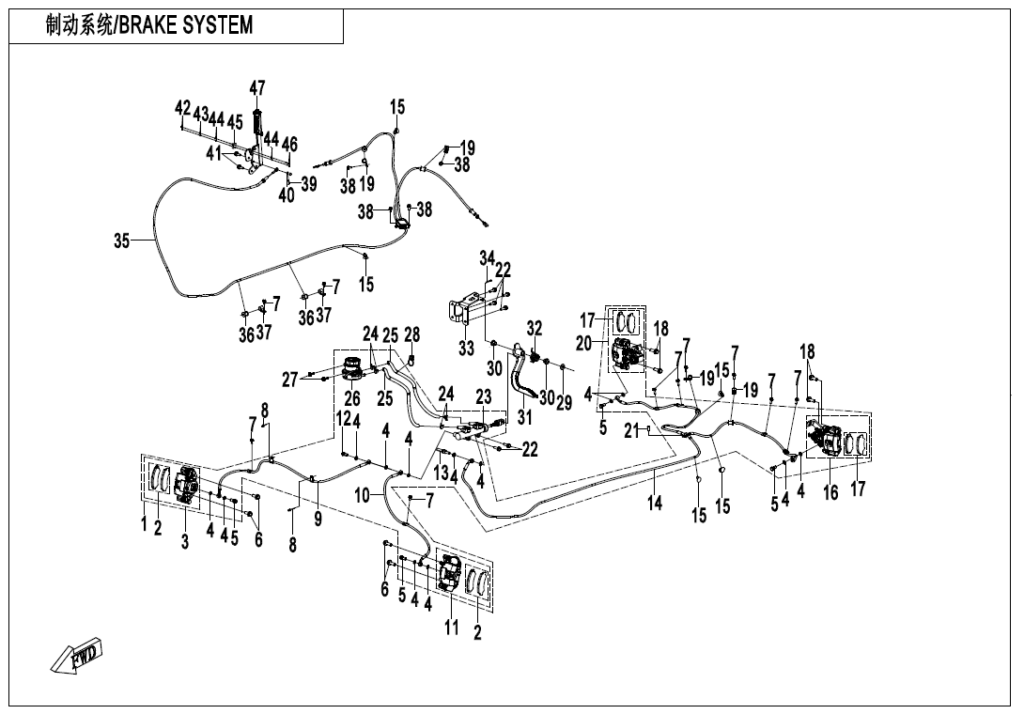

F08 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HYDRAULIC BRAKE ASSY 7DHV-081000-1001 | Skladem | |||
| 2 | FRONT BRAKE PAD ASSY 5HYV-0811A0 | Skladem | 1 336,13 Kč | ||
| 3 | FRONT RH BRAKE CALIPER ASSY 7DHV-081400-1000 | Skladem | 4 163,76 Kč | ||
| 4 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 5 | BOLT, FUEL PIPE 6KM#-080103-8101 | Skladem | 101,56 Kč | ||
| 6 | Šroub 30006-102025810 | Skladem | 31,07 Kč | ||
| 7 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 8 | BLIND RIVET 30902-0400820 | Skladem | 15,54 Kč | ||
| 9 | FRONT RH BRAKE CALIPER ASSY 7DHV-081M00-1000 | Skladem | 1 553,64 Kč | ||
| 10 | LH FRONT BRAKE FLUID HOSE 5ASV-081010-6000 | Skladem | 901,11 Kč | ||
| 11 | FRONT LH BRAKE CALIPER ASSY 7DHV-081300-1000 | Skladem | 4 163,76 Kč | ||
| 12 | BANJO BOLT, LONG 7020-081005 | Skladem | 31,07 Kč | ||
| 13 | HYDRAULIC SENSOR SWITCHASSY 5HYV-080010-6000 | Skladem | 947,72 Kč | ||
| 14 | REAR BRAKE FLUID HOSE ASSY 7DHV-081H00-1001 | Skladem | 5 033,79 Kč | ||
| 15 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 16 | REAR LH BRAKE CALIPER 7DHV-081500-1000 | Skladem | 7 364,25 Kč | ||
| 17 | REAR BRAKE PAD ASSY 5HYV-0813A0 | Skladem | 1 196,30 Kč | ||
| 18 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 19 | WIRE CLIP, OIL HOSE 5HYV-080410-1C00 | Skladem | 46,61 Kč | ||
| 20 | REAR RH BRAKE CALIPER ASSY 7DHV-081600-1000 | Skladem | 7 364,25 Kč | ||
| 21 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 22 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 23 | BRAKE MASTER CYLINDER ASSY 7DHV-081C00-1000 | Skladem | 2 982,99 Kč | ||
| 24 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 25 | FLUID RESERVOIR HOSE 7DHV-081003-1000 | Skladem | 170,90 Kč | ||
| 26 | FLUID RESERVOIR ASSY 7DHV-081F00-1000 | Skladem | 1 289,52 Kč | ||
| 27 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 28 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 29 | Podložka 30306-120112 | Skladem | 15,54 Kč | ||
| 30 | Pouzdro 9060-105002 | Skladem | 46,61 Kč | ||
| 31 | BRAKE PEDAL ASSY 5ASV-082000-6001 | Skladem | 1 165,23 Kč | ||
| 32 | RETURN SPRING 9060-080003 | Skladem | 77,68 Kč | ||
| 33 | FIXED BRACKET, FOOT PEDAL 5BY0-080010 | Skladem | 636,99 Kč | ||
| 34 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 35 | PARKING CABLE 7DHV-083100-1000 | Skladem | 1 289,52 Kč | ||
| 36 | RUBBER, FUEL PIPE 9030-180008 | Skladem | 15,54 Kč | ||
| 37 | FIXING CLIP 9AWA-080004 | Skladem | 62,15 Kč | ||
| 38 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 39 | COTTER PIN 30903-0162520 | Skladem | 15,54 Kč | ||
| 40 | PIN 30904-0602010 | Skladem | 43,52 Kč | ||
| 41 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 42 | Matice 30200-020500 | Skladem | 15,54 Kč | ||
| 43 | Podložka 30303-020900 | Skladem | 15,54 Kč | ||
| 44 | Podložka 30306-020800 | Skladem | 15,54 Kč | ||
| 45 | MICRO SWITCH 7000-082210-20000 | Skladem | 507,78 Kč | ||
| 46 | Šroub (vrut) 30105-020016700 | Skladem | 15,54 Kč | ||
| 47 | HAND BRAKE ASSY 5HYV-083100-1000 | Skladem | 1 709,00 Kč | ||
