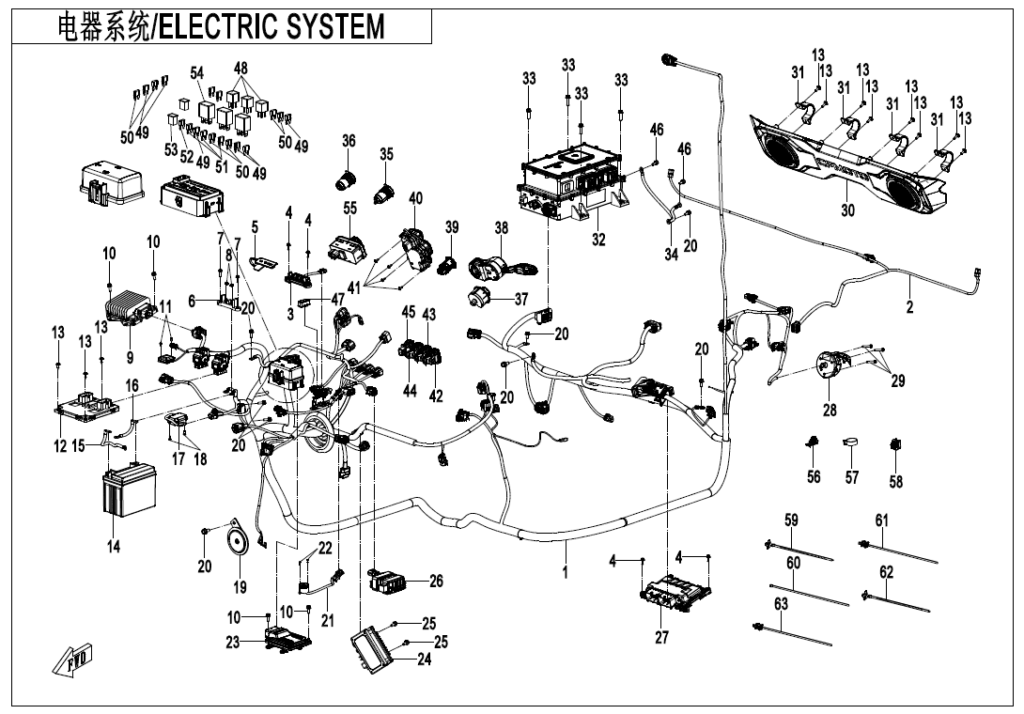

F15-1 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 7DHV-150100-1001 | Skladem | |||
| 01 | MAIN CABLE 7DHV-150100-1002 | Skladem | 44 573,93 Kč | ||
| 02 | TAIL LIGHT ADAPTER CABLE 7DHV-150184-1000 | Skladem | 916,65 Kč | ||
| 02 | TAIL LIGHT ADAPTER CABLE 7DHV-150184-1001 | Skladem | 1 258,45 Kč | ||
| 03 | EXTENSION POWER TERMINAL 5BWV-156905-5000-M1 | Skladem | 403,95 Kč | ||
| 04 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 05 | EXTENSION POWER TERMINAL CAP 5BWV-156906-5000-M1 | Skladem | 31,07 Kč | ||
| 06 | TERMINAL, CABLE 5SY0-151610-6000 | Skladem | 233,05 Kč | ||
| 07 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 08 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 09 | SOUND AMPLIFIER 5HYV-155210-6001 | Skladem | 8 156,61 Kč | ||
| 10 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 11 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 12 | BCM 7DHV-151900-1000 | Skladem | 14 044,91 Kč | ||
| 13 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 14 | BATTERY 31021200 | Skladem | 3 340,33 Kč | ||
| 15 | BATTERY NEGATIVE CABLE 7DHV-150420-1001 | Skladem | 481,63 Kč | ||
| 16 | BATTERY POSITIVE CABLE 7DHV-150310-1001 | Skladem | 310,73 Kč | ||
| 16 | BATTERY POSITIVE CABLE 7DHV-150310-1002 | Skladem | 326,26 Kč | ||
| 17 | HORN EAEV-150900-1000 | Skladem | 450,56 Kč | ||
| 17 | HORN EAEV-150900-1001 | Skladem | 450,56 Kč | ||
| 18 | SELF-TAPPING SCREW ST4.2×13-C-H 30110-420130070 | Skladem | 29,02 Kč | ||
| 19 | ELECTRIC HORN 5020-150700 | Skladem | 290,16 Kč | ||
| 20 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 21 | ALARM 9AWV-156800-2800-10 | Skladem | 823,43 Kč | ||
| 22 | Šroub (vrut) 30110-290095010 | Skladem | 15,54 Kč | ||
| 23 | SWITCH ASSY 7DHV-155100-1000 | Skladem | 7 488,54 Kč | ||
| 24 | EPS CONTROLLER 7DHV-150810-1000 | Skladem | 10 440,46 Kč | ||
| 25 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 26 | T-BOX SN1V-691100-1200-14 | Skladem | |||
| 26 | T-BOX SN1V-691100-1500-14 | Skladem | |||
| 27 | VEHICLE CONTROLLER ASSY 7DHV-440100-1200 | Skladem | 12 475,73 Kč | ||
| 28 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 29 | SCREW M5x35 30105-050035410 | Skladem | 15,54 Kč | ||
| 30 | SPEAKER ASSY 5HYV-150410-6001 | Skladem | 4 086,07 Kč | ||
| 31 | SPEAKER CLAMP 5HYV-150413-6000 | Skladem | 77,68 Kč | ||
| 32 | 3.3KW POWER 3 IN 1 ASSY 7DHV-440300-1000 | Skladem | |||
| 32 | 3.3KW POWER 3 IN 1 ASSY 7DHV-440300-1001 | Skladem | 56 525,82 Kč | ||
| 33 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 34 | DC NEGATIVE CABLE 7DHV-150330-1001 | Skladem | 574,85 Kč | ||
| 35 | USB OUTPUT SEAT ASSY 9AWV-151200-8000 | Skladem | 1 569,18 Kč | ||
| 36 | POWER OUTLET 6WWV-150500-5000-10 | Skladem | 574,85 Kč | ||
| 37 | 2WD/4WD SWITCH 5HYV-169080-6000 | Skladem | 1 196,30 Kč | ||
| 38 | SWITCHGROUP 5GYV-169480-1200 | Skladem | 1 522,57 Kč | ||
| 39 | ONE-CLICK START SWITCH 5HYV-169150-6000 | Skladem | 1 522,57 Kč | ||
| 40 | E-SHIFTER 7DHV-169390-1000 | Skladem | 6 245,63 Kč | ||
| 41 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 42 | HAZARD SWITCH 5HYV-169070-6000 | Skladem | 512,70 Kč | ||
| 43 | DIMMER SWITCH 7DHV-169030-1200 | Skladem | 512,70 Kč | ||
| 44 | WINCH SWITCH ASSY 5HYV-169360-6001 | Skladem | 994,33 Kč | ||
| 45 | VR SWITCH 5HYV-169570-6000 | Skladem | 481,63 Kč | ||
| 46 | Šroub 30006-080012810 | Skladem | 15,54 Kč | ||
| 47 | DIAGNOSIS CONNECTOR COVER CFCV-11H016-2000-M1 | Skladem | 15,54 Kč | ||
| 48 | AUXILIARY RELAY CFCV-11H804-2000-M1 | Skladem | 108,75 Kč | ||
| 49 | 25A FUSE 806A-151307 | Skladem | 15,54 Kč | ||
| 50 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 51 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 52 | 20A FUSE 806A-151306 | Skladem | 31,07 Kč | ||
| 53 | 40A FUSE 5BY0-150302 | Skladem | 31,07 Kč | ||
| 54 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 55 | FUNCTION SWITCH 7DHV-169500-1000 | Skladem | 3 355,86 Kč | ||
| 56 | CLASP 6GU#-150001-6000-M1 | Skladem | 29,04 Kč | ||
| 57 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 58 | CLIP CFCV-CBC005-2000-M1 | Skladem | 15,54 Kč | ||
| 59 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 60 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 61 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 62 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 63 | TIE BAND 5ASV-150009-6000-M1 | Skladem | 15,54 Kč | ||
