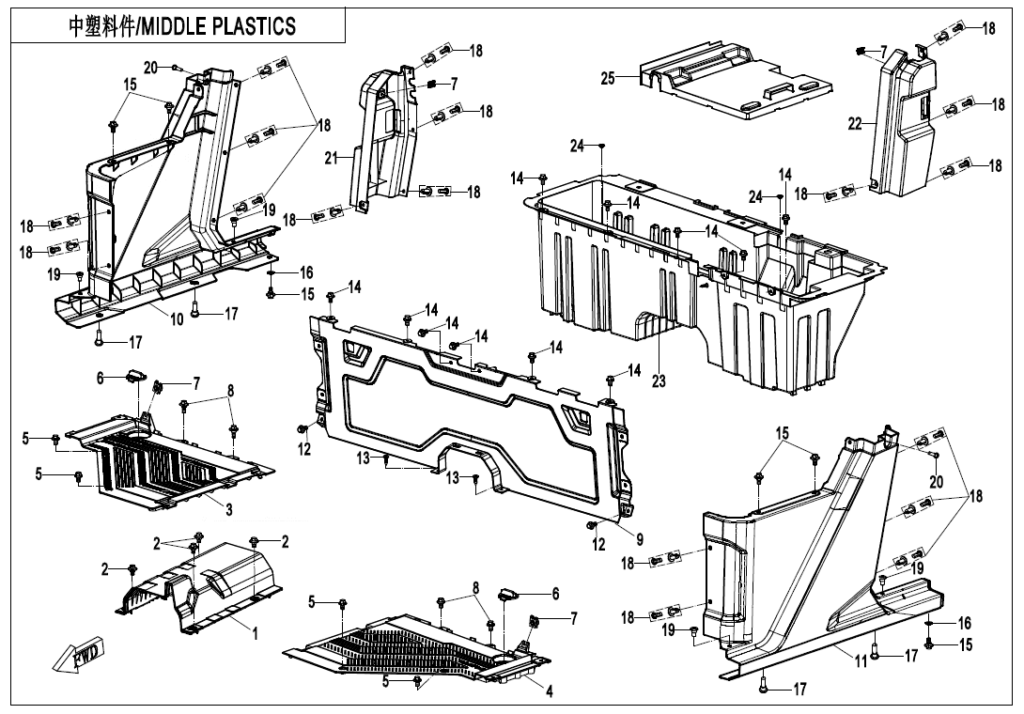

F04-3-V3 MIDDLE PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SERVICE COVER, PEDAL 5HYV-043053-1000 | Skladem | |||
| 2 | BOLT M6x17 5HY#-040002-1000 | Skladem | 15,54 Kč | ||
| 3 | FOOT PEDAL, RH 5HYV-043052-1C00 | Není skladem | 994,33 Kč | ||
| 4 | FOOT PEDAL, LH 5HYV-043051-1C00 | Není skladem | 994,33 Kč | ||
| 5 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 6 | PLUG, PEDAL 5BY0-042032 | Skladem | 31,07 Kč | ||
| 7 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 8 | BOLT M6x14 5HY#-040001-1000 | Skladem | 15,54 Kč | ||
| 9 | FRONT LOWER BAFFLE, SEAT 5HY#-043061-1000-11 | Skladem | |||
| 10 | FRONT RH PANEL 5SYV-044014-6001 | Skladem | |||
| 10 | FRONT RH SIDE PLATE 5SYV-044014-6000 | Skladem | |||
| 11 | FRONT LH PANEL 5SYV-044013-6001 | Skladem | |||
| 11 | FRONT LH SIDE PLATE 5SYV-044013-6000 | Skladem | |||
| 12 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 13 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 14 | INNER HEX SCREW M6x16 6NQ#-000206-6001 | Skladem | 31,07 Kč | ||
| 15 | INNER HEX SCREW M6x20 6NQ#-000203-6001 | Skladem | 29,04 Kč | ||
| 16 | RETAINER 30301-060470 | Skladem | 15,54 Kč | ||
| 17 | BOLT M8x20 5HY0-220113 | Skladem | 31,07 Kč | ||
| 18 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 19 | Šroub 6NQ#-000202-6001 | Skladem | 46,61 Kč | ||
| 20 | MOUNTING SCREW, CHAIN GUARD 6NQ#-000205-6001 | Skladem | 29,02 Kč | ||
| 21 | RH UPPER PANEL, FRONT SEAT 5SYV-044042-6001-11 | Skladem | |||
| 22 | LH UPPER PANEL, FRONT SEAT 5SYV-044041-6001-11 | Skladem | |||
| 23 | STORAGE BOX, FRONT SEAT 5SYV-043061-6000 | Skladem | |||
| 24 | GASKET, ADJUST HOLE 6100-030006 | Není skladem | |||
| 25 | INNER PRESS PLATE, STORAGE BOX 5SYV-043062-6001 | Skladem | |||
