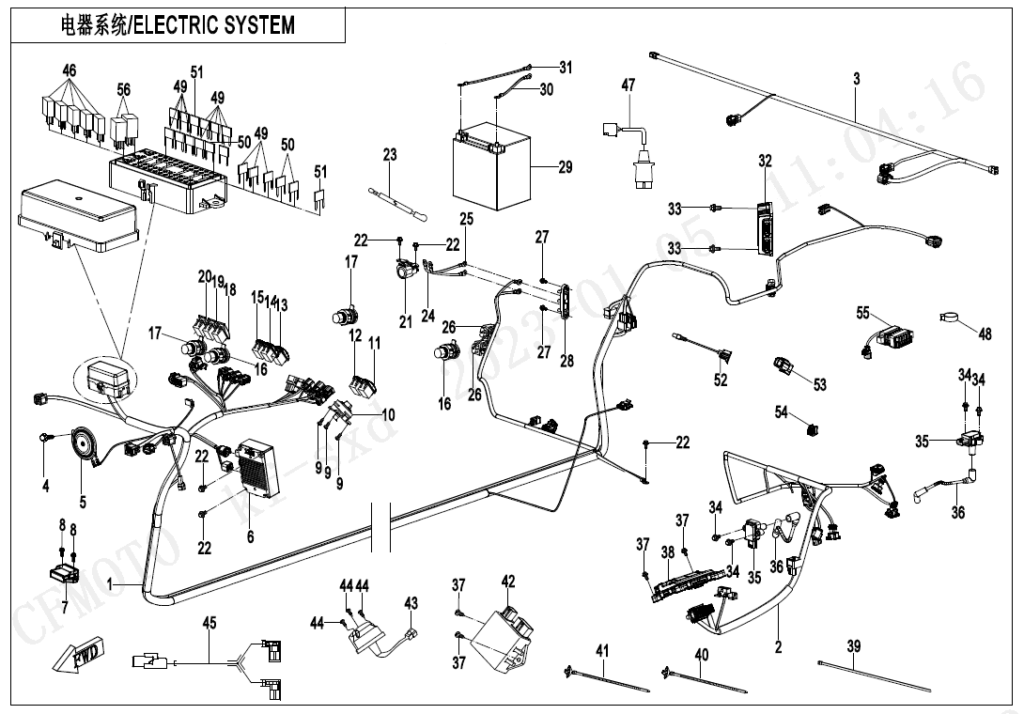

F15-1 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 5SYV-150100-6402 | Skladem | |||
| 01 | MAIN CABLE 5SYV-150100-7201 | Skladem | |||
| 02 | EFI AUXILIARY CABLE 5SYV-150200-6401 | Skladem | |||
| 03 | AUXILIARY CABLE, TAIL LIGHT 5HYV-150300-2D00 | Skladem | |||
| 03 | TAIL LIGHT AUXILIARY CABLE 5HYV-150300-1F00 | Skladem | 1 242,91 Kč | ||
| 04 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 05 | ELECTRIC HORN 6060-150600 | Skladem | 275,65 Kč | ||
| 06 | EPS CONTROLLER 5HYV-150810-1800 | Skladem | 10 720,12 Kč | ||
| 07 | FLASHER 5HYV-161000-1G00 | Skladem | |||
| 07 | Přerušovač blinkrů 5HYV-161000-1G01 | Skladem | 683,60 Kč | ||
| 08 | SELF-TAPPING SCREW 30110-420160070 | Skladem | 15,54 Kč | ||
| 09 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 10 | 2WD/4WD SWITCH ASSY 5ASV-160700-6000 | Skladem | 1 009,87 Kč | ||
| 11 | DIMMER SWITCH 5ASV-169030-6001 | Skladem | 512,70 Kč | ||
| 12 | ILLUMINATION SWITCH 5ASV-169020-6001 | Skladem | 512,70 Kč | ||
| 13 | STOP SWICH 5ASV-169010-6001 | Skladem | |||
| 14 | MODE SWITCH 5ASV-169090-6001 | Skladem | 481,63 Kč | ||
| 15 | OVERRIDE SWITCH 5ASV-169050-6001 | Skladem | |||
| 16 | POWER OUTLET 6WWV-150500-5000-10 | Skladem | 574,85 Kč | ||
| 17 | USB OUTLET 6WWV-150600-5000-10 | Skladem | 1 165,23 Kč | ||
| 18 | HORN SWITCH 5ASV-169040-6001 | Skladem | 512,70 Kč | ||
| 19 | TURN SWITCH 5ASV-169060-6001 | Není skladem | 512,70 Kč | ||
| 20 | HAZARD SWITCH 5ASV-169070-6001 | Není skladem | 512,70 Kč | ||
| 21 | STARTER RELAY 5270-150500 | Skladem | 403,95 Kč | ||
| 22 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 23 | CABLE,STARTER 5HY0-150220 | Skladem | 823,43 Kč | ||
| 24 | CABLE, STARTER RELAY 5HY0-150240-10000 | Skladem | 372,87 Kč | ||
| 25 | NEGATIVE CABLE, STARTER 5HY0-150250-10000 | Skladem | 372,87 Kč | ||
| 26 | FUSE (40A) 9CR6-103501 | Skladem | 101,56 Kč | ||
| 27 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 28 | TERMINAL, CABLE 5SY0-151610-6000 | Skladem | 233,05 Kč | ||
| 29 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 30 | NEGATIVE WIRE,BATTERY 5HY0-150230-10000 | Skladem | 481,63 Kč | ||
| 31 | POSITIVE WIRE,BATTERY 5HY0-150210-10000 | Skladem | 435,02 Kč | ||
| 32 | REGULATOR 0800-177000-30000 | Skladem | 4 303,58 Kč | ||
| 33 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 34 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 35 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 36 | HIGH-TENSION CABLE 0GRB-178000-10000 | Skladem | 372,87 Kč | ||
| 37 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 38 | ECU ASSY 5SYV-001000-7100 | Skladem | |||
| 38 | ECU ASSY 5SYV-001000-7100-01 | Skladem | |||
| 38 | ECU ASSY 5SYV-001000-6300 | Skladem | |||
| 38 | ECU ASSY 5SYV-001000-7200 | Skladem | |||
| 39 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 40 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 41 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 42 | DRL CONTROLLER 9AWA-150880-20000 | Skladem | 1 413,81 Kč | ||
| 43 | POWER SOCKET，TRAILER 9010-151010-1000 | Skladem | 435,02 Kč | ||
| 43 | TAILER POWER SOCKET 7020-150800-20000 | Skladem | |||
| 44 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 45 | ADAPTOR CABLE, HORN 5HYV-150191-2900 | Skladem | 93,22 Kč | ||
| 46 | AUXILIARY RELAY 5BY4-150330 | Skladem | 203,11 Kč | ||
| 47 | ADAPTOR SEAT, TRAILER POWER 9010-151020-20000 | Skladem | |||
| 48 | RUBBER RING, T-BOX 6KMV-150901-B001 | Skladem | 31,07 Kč | ||
| 49 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 50 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 51 | FUSE 5A 8010-151301 | Skladem | 15,54 Kč | ||
| 52 | LINK CABLE, OIL PRESSURE SWITCH 0JWA-012202-10000 | Skladem | |||
| 53 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
| 54 | CLIP CFCV-CBC005-2000-M1 | Skladem | 15,54 Kč | ||
| 55 | Jednotka T-BOX 6NTV-150900-C201-M1 | Skladem | |||
| 55 | Jednotka T-BOX 6GUV-151800-7501-M1 | Skladem | 6 943,23 Kč | ||
| 55 | Jednotka T-BOX 9DQV-151800-4100-M2 | Skladem | |||
| 55 | Jednotka T-BOX 6GUV-151800-6801-M1 | Skladem | |||
| 55 | Jednotka T-BOX 6GUV-151800-7502-M1 | Skladem | |||
| 56 | AUXILIARY RELAY CFCV-150521-2000-M1 | Skladem | 124,29 Kč | ||
