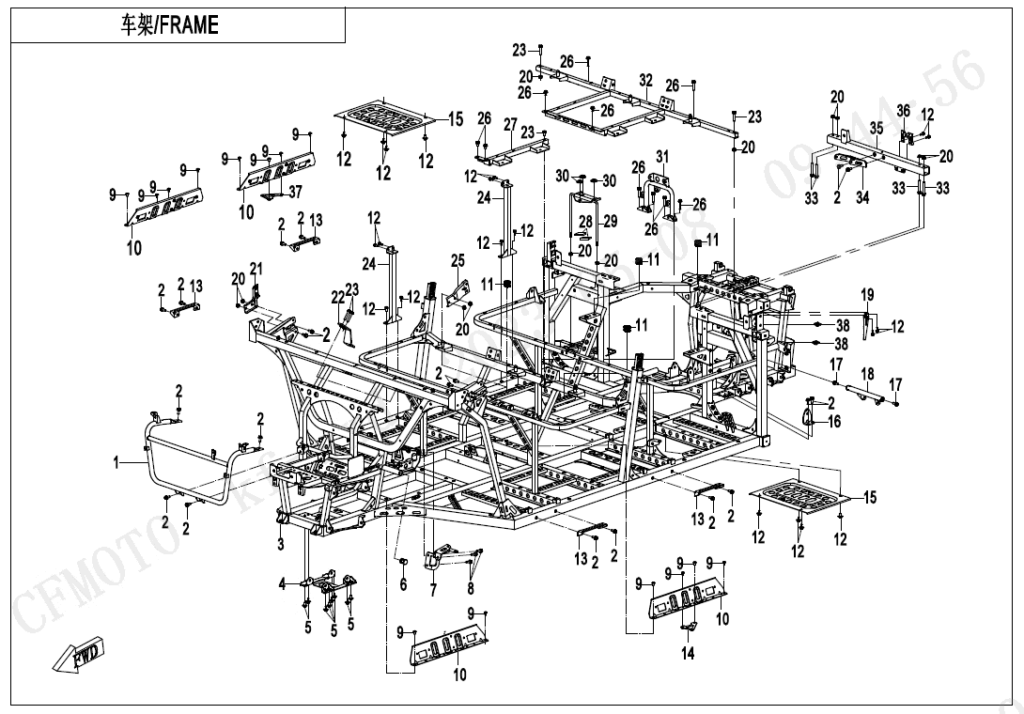

F03 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | PROTECTION PIPE, RESERVOIR 5HY0-030100-10000 | Není skladem | |||
| 02 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 03 | FRAME ASSY 5SYV-031000-6004-01 | Skladem | |||
| 03 | FRAME ASSY 5SYV-031000-6005-01 | Skladem | |||
| 03 | FRAME ASSY 5SYV-031000-6007-01 | Skladem | |||
| 04 | BRACKET, FRONT GEAR CASE 5HY0-030600 | Skladem | 730,21 Kč | ||
| 05 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 06 | PLUG, REAR BUMPER 9CR6-230001 | Skladem | 29,02 Kč | ||
| 07 | FIXED BRACKET, BRAKE PADEL 5HY0-030300 | Skladem | |||
| 08 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 09 | BOLT M6x16 A010-120003 | Skladem | 31,07 Kč | ||
| 10 | ACCESSORY BRACKET 5HYV-030070-1H00 | Skladem | |||
| 11 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 12 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 13 | SUPPORT, FOOTREST 5HY0-030003 | Skladem | |||
| 14 | LH BRACKET, PEDAL PLATE 5SYV-030010-6000 | Skladem | |||
| 15 | PROTECTION PLATE, FUEL TANK 5HY0-030090 | Skladem | |||
| 16 | REAR JOINT PLATE,ENGINE 5HY0-030001 | Skladem | |||
| 17 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 18 | MOUNT ASSEMBLY,REAL GEAR CASE 5HY0-030040 | Skladem | |||
| 19 | MOUNT SEAT, REGULATOR 5HY0-030410 | Skladem | |||
| 20 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 21 | MOUNT SEAT, RH LOCK HOOK 5HY0-030430 | Skladem | |||
| 22 | BRACKET, GEAR SHIFTING LINE 5HY0-030450 | Skladem | |||
| 23 | Šroub 30006-080040810 | Skladem | 31,07 Kč | ||
| 24 | SEAT BRACKET 5HY0-030440-10000 | Skladem | |||
| 25 | MOUNT SEAT, lh LOCK HOOK 5HY0-030420 | Skladem | |||
| 26 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 27 | FRONT SEAT BRACKET 5SYV-030030-6000 | Skladem | |||
| 28 | SPONGE PAD, FUEL TANK 9010-120008 | Skladem | 31,07 Kč | ||
| 29 | PRESS PLATE, BATTERY 7000-031820 | Skladem | |||
| 30 | RUBBER WASHER, BATTERY 9010-030005 | Skladem | 15,54 Kč | ||
| 31 | MIDDLE BACKREST, FRONT SEAT 5SYV-030040-6000 | Skladem | |||
| 32 | SEAT BRACKET 5HYV-030200-1H00 | Skladem | |||
| 33 | Šroub 30006-080060810 | Skladem | 31,07 Kč | ||
| 34 | MOUNT PLATE 5HY0-030053 | Skladem | |||
| 35 | MIDDLE BAR REINFORCEMENT CONNECTING PIPE 5HY0-030500-10000 | Skladem | |||
| 36 | MOUNT SEAT, IGNITION COIL 5HY0-030060 | Skladem | |||
| 37 | RH BRACKET, PEDAL PLATE 5SYV-030020-6000 | Skladem | |||
| 38 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
