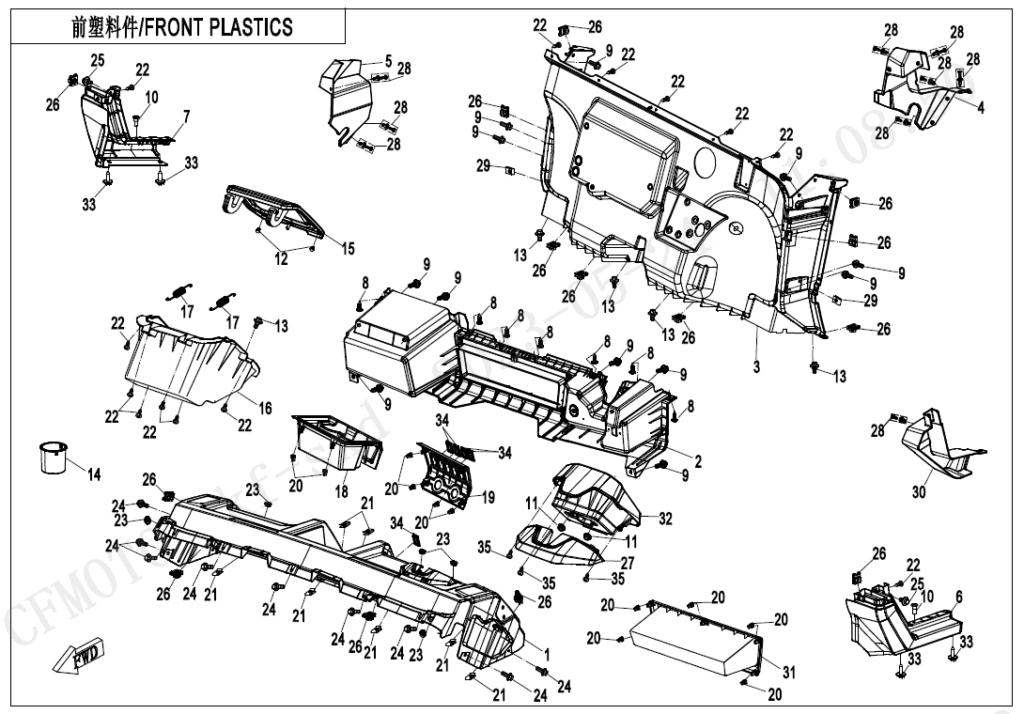

F04-2-V2 FRONT PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | DASHBOARD UPPER PART 5HYV-043011-1H00 | Skladem | |||
| 02 | DASHBOARD LOWER BODY 5HYV-043031-1H00 | Skladem | |||
| 03 | FRONT FENDER 5HYV-043041-1H00 | Skladem | |||
| 04 | LH FRONT INNER FENDER 5HYV-043042-1000 | Skladem | |||
| 05 | FRONT INNER FENDER, RH 5HY0-043043 | Skladem | |||
| 06 | FRONT LH SIDE PANEL 5HY#-041053-1000 | Skladem | 388,41 Kč | ||
| 07 | FRONT RH SIDE PANEL 5HY#-041054-1000 | Skladem | 388,41 Kč | ||
| 08 | SELF-TAPPING SCREW 30110-480160070 | Skladem | 43,52 Kč | ||
| 09 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 10 | Šroub 6NQ#-000202-6001 | Skladem | 46,61 Kč | ||
| 11 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 12 | RUBBER MAT 5HYV-040003-1000 | Skladem | |||
| 13 | BOLT M6x14 5HY#-040001-1000 | Skladem | 15,54 Kč | ||
| 14 | HOLDER 5HY0-043012 | Skladem | |||
| 15 | STORAGE BOX COVER 5HYV-043013-1C00 | Skladem | |||
| 16 | STORAGE BOX COVER 5HY0-043014 | Skladem | |||
| 17 | SPRING 5HY0-043015 | Skladem | 31,07 Kč | ||
| 18 | STORAGE BOX 5HY0-043016-00001 | Skladem | 512,70 Kč | ||
| 19 | SWITCH PANEL 5HYV-043017-1C00 | Skladem | |||
| 20 | CLASP 8080-000001 | Skladem | 15,54 Kč | ||
| 21 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 22 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 23 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
| 24 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 25 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 26 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 27 | DECO COVER, DASHBOARD 5HY0-043092 | Skladem | |||
| 28 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 29 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 30 | FRONT INNER FENDER 5HYV-043044-1000 | Skladem | |||
| 31 | GLOVE BOX 5HY0-043033 | Skladem | |||
| 32 | COVER, DASHBOARD TRUE TIMBER CAMO 5HYV-043091-1C00-0RE00 | Skladem | |||
| 32 | COVER, DASHBOARD TWILIGHT BLUE 5HYV-043091-1C00-0ET00 | Skladem | |||
| 32 | DASHBOARD COVER 5HYV-043091-1C00-0YG00 | Skladem | 683,60 Kč | ||
| 32 | DASHBOARD GUARD 5HYV-043091-1C00-0BM00 | Skladem | 683,60 Kč | ||
| 33 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
| 34 | SWITCH HOLE COVER 5ASV-152200-6001 | Skladem | |||
| 35 | SELF-TAPPING SCREW ST4.2×16 30110-420160010 | Skladem | 15,54 Kč | ||
