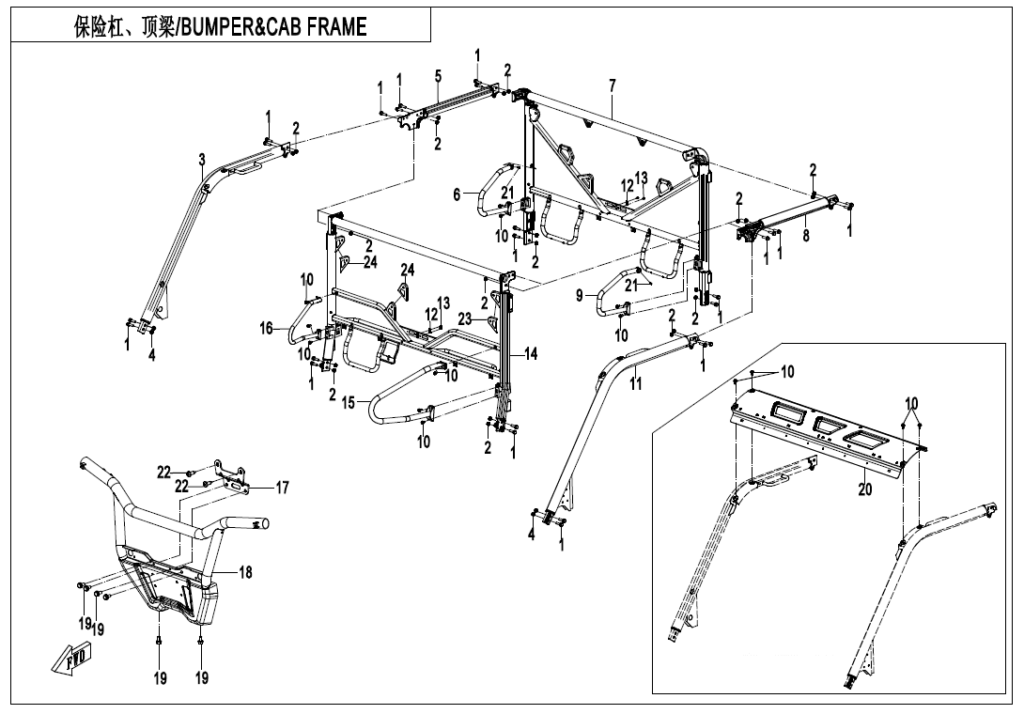

F23-V2 BUMPER @^ CAB FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | BOLT M10x1.25×35 30006-102035110 | Skladem | |||
| 2 | Matice 30225-102810 | Skladem | 31,07 Kč | ||
| 3 | FRONT CAB RH ASSY 5SYV-230400-6702-0BP00 | Skladem | |||
| 3 | FRONT RH CAB ASSY 5SYV-230400-6700-0BP00 | Skladem | |||
| 4 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 5 | RH CONNECTING BEAM ASSY 5SYV-230800-6002-0BP00 | Skladem | |||
| 5 | RH CONNECTING GIRDER ASSY 5SYV-230800-6000-0BP00 | Skladem | |||
| 6 | REAR PASSENGER RH PROTECTING PIPE ASSY 5SYV-230440-6000-0BP00 | Skladem | |||
| 7 | REAR CAB ASSY 5SYV-230200-6001-0BP00 | Skladem | |||
| 7 | REAR CAB ASSY 5SYV-230200-6003-0BP00 | Skladem | |||
| 8 | LH CONNECTING BEAM ASSY 5SYV-230700-6000-0BP00 | Skladem | |||
| 8 | LH CONNECTING BEAM ASSY 5SYV-230700-6002-0BP00 | Skladem | |||
| 9 | REAR PASSENGER LH PROTECTING PIPE ASSY 5SYV-230430-6000-0BP00 | Skladem | |||
| 10 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 11 | FRONT CAB LH ASSY 5SYV-230100-6702-0BP00 | Skladem | |||
| 11 | FRONT LH CAB ASSY 5SYV-230100-6700-0BP00 | Skladem | |||
| 12 | FIXING SEAT, MIDDLE BACKREST 5HY0-230520 | Skladem | |||
| 13 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 14 | MIDDLE CAB ASSY 5SYV-230600-6000-0BP00 | Skladem | |||
| 14 | MIDDLE CAB ASSY 5SYV-230600-6003-0BP00 | Skladem | |||
| 15 | FRONT PASSENGER LH PROTECTING PIPE ASSY 5SYV-230410-6000-0BP00 | Skladem | |||
| 16 | FRONT PASSENGER RH PROTECTING PIPE ASSY 5SYV-230420-6000-0BP00 | Skladem | |||
| 17 | REINFORCEMENT BRACKET, WINCH BRACKET 5HY0-230010 | Skladem | |||
| 18 | BUMPER ASSY 5HY0-231100-2BP00 | Skladem | |||
| 19 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 20 | TOP ROOF BRACKET 5HYV-230107-1H00-0BP00 | Skladem | 9 787,93 Kč | ||
| 21 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
| 22 | Šroub (vrut) 30102-102020810 | Skladem | 31,07 Kč | ||
| 23 | RUBBER SLEEVE, LH SEAT BELT BRACKET 5SYV-230803-6000 | Skladem | |||
| 24 | RUBBER SLEEVE, RH SEAT BELT BRACKET 5SYV-230804-6000 | Skladem | |||
