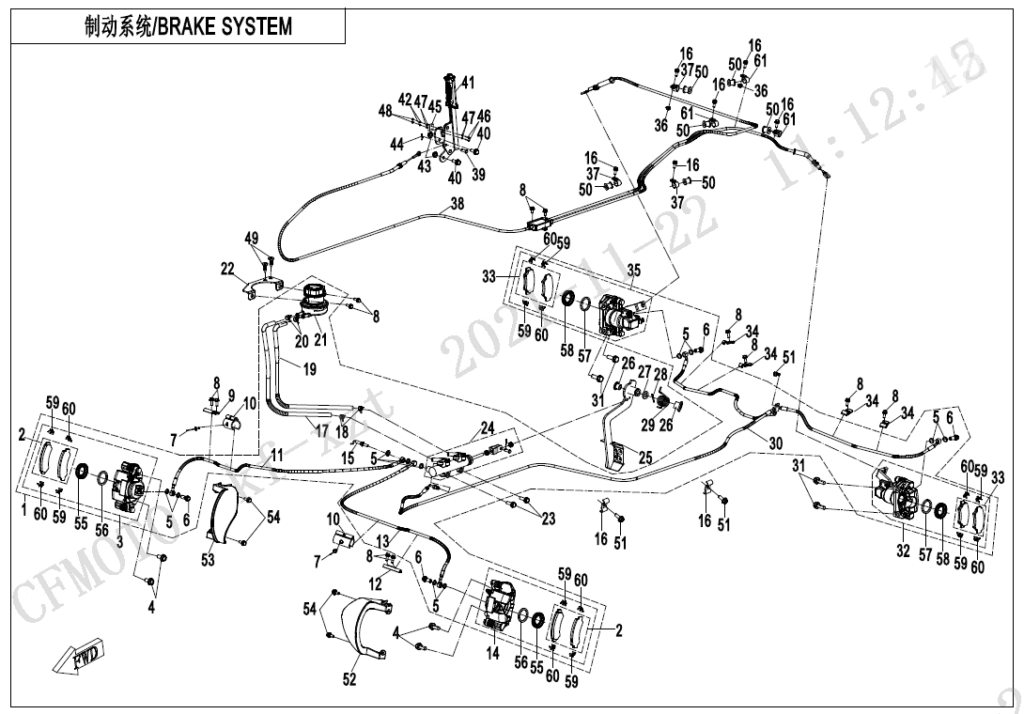

F08 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BRAKE 5SYV-081000-6301 | Skladem | |||
| 02 | FRONT BRAKE PAD ASSY 5HYV-0811A0 | Skladem | 1 336,13 Kč | ||
| 03 | FRONT RH BRAKE CALIPER 9AWA-081200-4000 | Skladem | |||
| 04 | Šroub 30006-102025810 | Skladem | 31,07 Kč | ||
| 05 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 06 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 07 | BLIND RIVET 30902-0400820 | Skladem | 15,54 Kč | ||
| 08 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 09 | CLIP, FRONT RH BRAKE FLUID PIPE 5HY0-080004 | Skladem | |||
| 10 | PLASTIC CLASP 9AWA-080001 | Skladem | |||
| 11 | RH FRONT BRAKE FLUID HOSE 5HYV-081020-2500 | Skladem | 1 040,94 Kč | ||
| 12 | CLIP, FRONT LH BRAKE FLUID PIPE 5HY0-080003 | Skladem | |||
| 13 | LH FRONT BRAKE FLUID HOSE 5HYV-081010-2500 | Skladem | 776,82 Kč | ||
| 14 | FRONT LH BRAKE CALIPER 9AWA-081100-4000 | Skladem | |||
| 15 | HYDRAULIC INDUCTION SWITCH 5HY0-080010-20000 | Skladem | 574,85 Kč | ||
| 16 | CLIP I, LH OIL HOSE 5BY0-080001 | Skladem | 101,64 Kč | ||
| 17 | HOSE , FLUID RESERVOIR 5UWB-081002 | Skladem | |||
| 18 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 19 | HOSE , FLUID RESERVOIR 5UWB-081001 | Skladem | |||
| 20 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 21 | RESERVOIR ASSY 5BW1-080150-20000 | Skladem | 1 149,69 Kč | ||
| 22 | BRACKET, OIL CUP 5UWB-030110 | Skladem | 108,75 Kč | ||
| 23 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 24 | MASTER CYLINDER 5SYV-081100-6000 | Skladem | 2 485,82 Kč | ||
| 25 | BRAKE PEDAL ASSY 5HYV-082000-1201 | Skladem | 559,31 Kč | ||
| 26 | Pouzdro 9060-105002 | Skladem | 46,61 Kč | ||
| 27 | Podložka 30306-120112 | Skladem | 15,54 Kč | ||
| 28 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 29 | RETURN SPRING 9060-080003 | Skladem | 77,68 Kč | ||
| 30 | REAR BRAKE FLUID HOSE 5SYV-081030-6000 | Skladem | 3 899,64 Kč | ||
| 31 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 32 | REAR LH BRAKE CALIPER ASSY 5HYV-081050-2G00 | Skladem | 7 519,62 Kč | ||
| 33 | REAR BRAKE PAD ASSY 5HYV-0813A0 | Skladem | 1 196,30 Kč | ||
| 34 | CLIP, REAR BRAKE FLUID PIPE 5HY0-080002 | Skladem | |||
| 35 | REAR RH BRAKE CALIPER ASSY 5HYV-081060-2G00 | Skladem | 7 519,62 Kč | ||
| 36 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 37 | CIRCLIP 9010-080104 | Skladem | 46,61 Kč | ||
| 38 | PARKING CABLE 5SYV-083200-6000 | Skladem | |||
| 39 | PIN 30904-0602010 | Skladem | 43,52 Kč | ||
| 40 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 41 | HAND BRAKE 5HY0-083100 | Skladem | 1 662,39 Kč | ||
| 41 | HAND BRAKE ASSY 5HYV-083100-1000 | Skladem | 1 709,00 Kč | ||
| 42 | Podložka 30303-020900 | Skladem | 15,54 Kč | ||
| 43 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 44 | COTTER PIN 30903-0162010 | Skladem | 15,54 Kč | ||
| 45 | MICRO SWITCH 7000-082210-20000 | Skladem | 507,78 Kč | ||
| 46 | Šroub (vrut) 30105-020016700 | Skladem | 15,54 Kč | ||
| 47 | Podložka 30306-020800 | Skladem | 15,54 Kč | ||
| 48 | Matice 30200-020500 | Skladem | 15,54 Kč | ||
| 49 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 50 | RUBBER, FUEL PIPE 9030-180008 | Skladem | 15,54 Kč | ||
| 51 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 52 | GUARD, FRONT LH BRAKE CALIPER 5BY0-080007 | Skladem | 101,56 Kč | ||
| 53 | GUARD, FRONT RH BRAKE CALIPER 5BY0-080008 | Skladem | 101,56 Kč | ||
| 54 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 55 | DUST SEAL, PISTON 5HYV-081100-1B00-20 | Skladem | 72,60 Kč | ||
| 56 | DUST SEAL, PISTON 5HYV-081100-1B00-21 | Skladem | 72,60 Kč | ||
| 57 | DUST SEAL, PISTON 5HYV-081300-1B00-21 | Skladem | 72,60 Kč | ||
| 58 | DUST SEAL, PISTON 5HYV-081300-1B00-20 | Skladem | 72,60 Kč | ||
| 59 | BRACKET 1 5HYV-081100-1B00-22 | Není skladem | 46,61 Kč | ||
| 60 | BRACKET 2 5HYV-081100-1B00-23 | Není skladem | 46,61 Kč | ||
| 61 | WIRE CLIP, OIL HOSE 5HYV-080410-1C00 | Skladem | 46,61 Kč | ||
