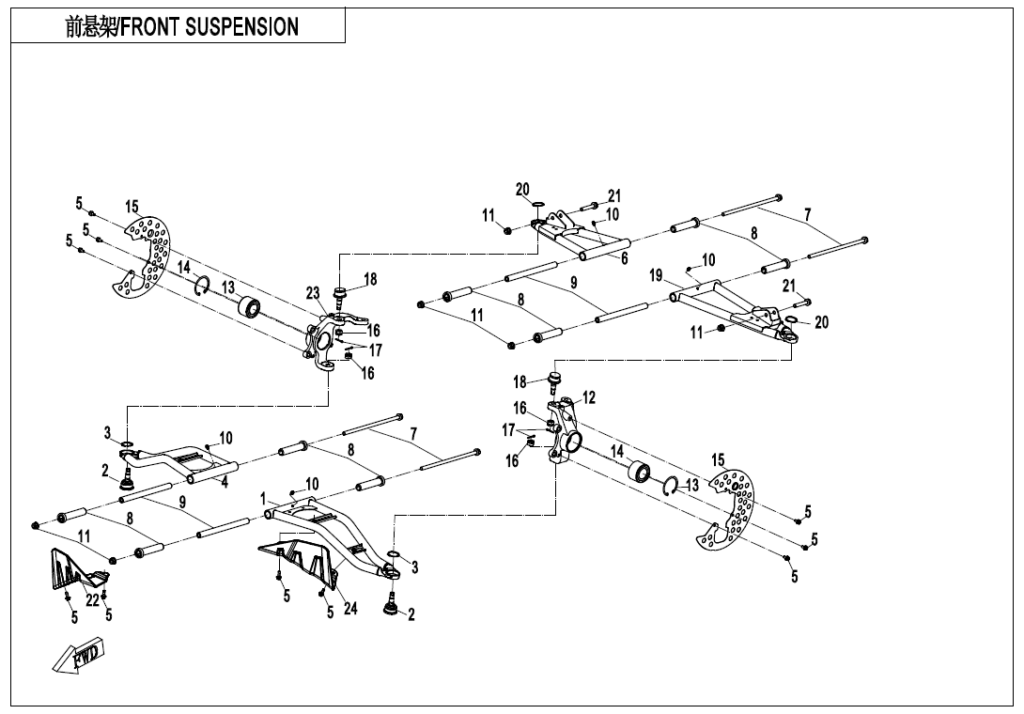

F05-1 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT LOWER SWING ARM,LH 5HY0-050210 | Skladem | 2 066,34 Kč | ||
| 02 | BALL PIN COMP. 9060-050900-10000 | Skladem | 1 009,87 Kč | ||
| 02 | BALL PIN COMP. 9060-050900 | Skladem | 1 009,87 Kč | ||
| 03 | CIRCLIPS FOR SHAFT 34 30801-03405 | Skladem | 15,54 Kč | ||
| 04 | FRONT LOWER SWING ARM,RH 5HY0-050410 | Skladem | 2 066,34 Kč | ||
| 05 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 06 | FRONT UPPER SWING ARM,RH 5HY0-050310 | Skladem | 2 439,21 Kč | ||
| 07 | MOUNTING SHAFT, REAR ARM 4060-060101 | Skladem | 155,36 Kč | ||
| 08 | LONG BUSH，SWING ARM 9060-050002 | Skladem | 217,62 Kč | ||
| 09 | SPACER, REAR UPPER SWING ARM 9060-060101-00001 | Skladem | 159,59 Kč | ||
| 10 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 11 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 12 | STEERING KNUCKLE,LH 5HY0-050701 | Skladem | 2 206,17 Kč | ||
| 13 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 14 | HUB BEARING 30411-03080 | Skladem | 1 475,96 Kč | ||
| 15 | GUARD, BRAKE DISC 7020-050005 | Skladem | 186,44 Kč | ||
| 16 | Matice 30219-122810 | Skladem | 31,07 Kč | ||
| 17 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 18 | MAIN PIN COMP. 9030-050600-10000 | Skladem | 1 009,87 Kč | ||
| 18 | MAIN PIN COMP. 9030-050600 | Skladem | 1 009,87 Kč | ||
| 19 | FRONT UPPER SWING ARM,LH 5HY0-050110 | Skladem | 2 439,21 Kč | ||
| 20 | CIRCLIPS FOR SHAFT32 30801-03205 | Skladem | 15,54 Kč | ||
| 21 | Šroub 30006-102055810 | Skladem | 58,03 Kč | ||
| 22 | GUARD, FRONT RH SWING ARM 5HY0-050401 | Skladem | |||
| 23 | STEERING KNUCKLE,RH 5HY0-050801 | Skladem | 2 206,17 Kč | ||
| 24 | GUARD, FRONT LH SWINGARM 5HY0-050201 | Skladem | |||
