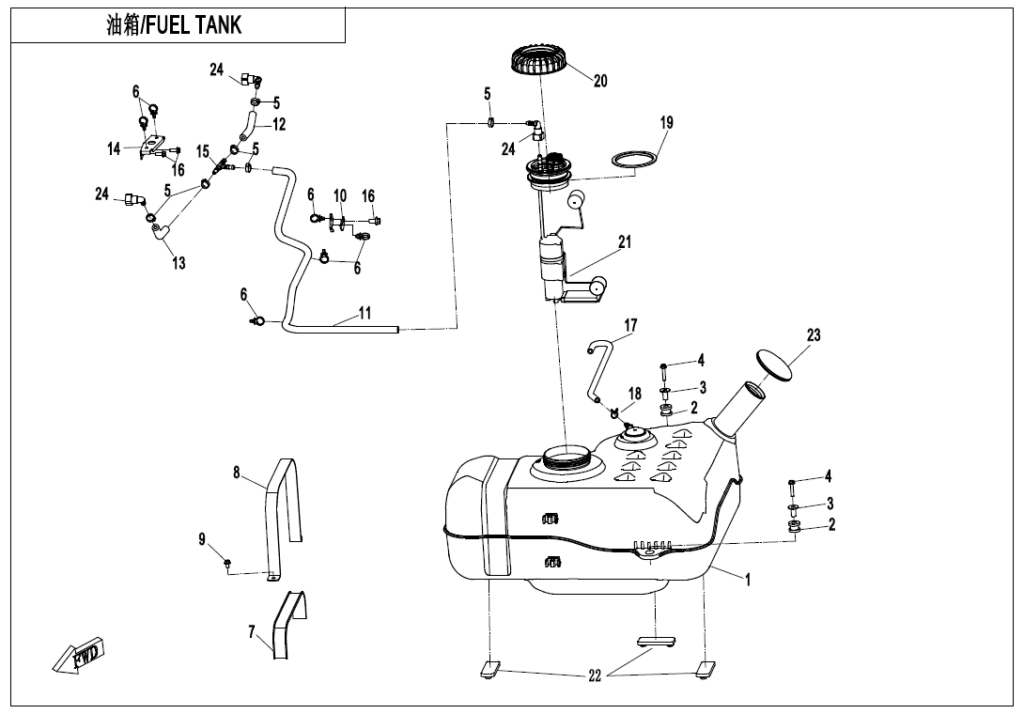

F12 FUEL TANK
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FUEL TANK, PLASTIC 5HY0-120100 | Skladem | |||
| 02 | DAMPER，FUEL TANK 7020-120103 | Skladem | 15,54 Kč | ||
| 03 | CUSHION LINER, FUEL TANK 7020-120160 | Skladem | 31,07 Kč | ||
| 04 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 05 | CLAMP φ16.6 7020-120006 | Skladem | 46,61 Kč | ||
| 06 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 07 | RUBBER DAMPER 5190-020102 | Skladem | 93,22 Kč | ||
| 08 | STRIP, FUEL TANK 5HY0-120002 | Skladem | |||
| 09 | Šroub 30006-100020810 | Skladem | 31,07 Kč | ||
| 10 | BRACKET, OIL PIPE 5HY0-120001 | Skladem | |||
| 11 | HIGH PRESSURE FUEL HOSE 1 5HY0-120210 | Skladem | |||
| 12 | HIGH PRESSURE FUEL HOSE 2 5HY0-120220 | Skladem | |||
| 13 | HIGH PRESSURE FUEL HOSE 3 5HY0-120230 | Skladem | |||
| 14 | BRACKET, FUEL PIPE 5HY0-120003 | Skladem | |||
| 15 | T-JOINT, OIL PIPE 5HY0-120004 | Skladem | |||
| 16 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 17 | FUEL VAPOR HOSE V 8080-120005 | Skladem | |||
| 18 | CLAMP A12 30601-112010 | Skladem | 15,54 Kč | ||
| 19 | SEAL RING, FUEL PUMP 7020-120102 | Skladem | 116,06 Kč | ||
| 20 | CAP, FUEL PUMP 7020-120101 | Skladem | 188,60 Kč | ||
| 21 | FUEL PUMP 7020-150900 | Skladem | 6 634,04 Kč | ||
| 22 | DAMPER, FUEL TANK 9AWA-120001 | Skladem | 46,61 Kč | ||
| 23 | RUBBER, FUEL TANK PORT 9AWA-120002 | Skladem | 101,56 Kč | ||
| 24 | QUICK JOINT 6090-120210 | Skladem | 217,62 Kč | ||
