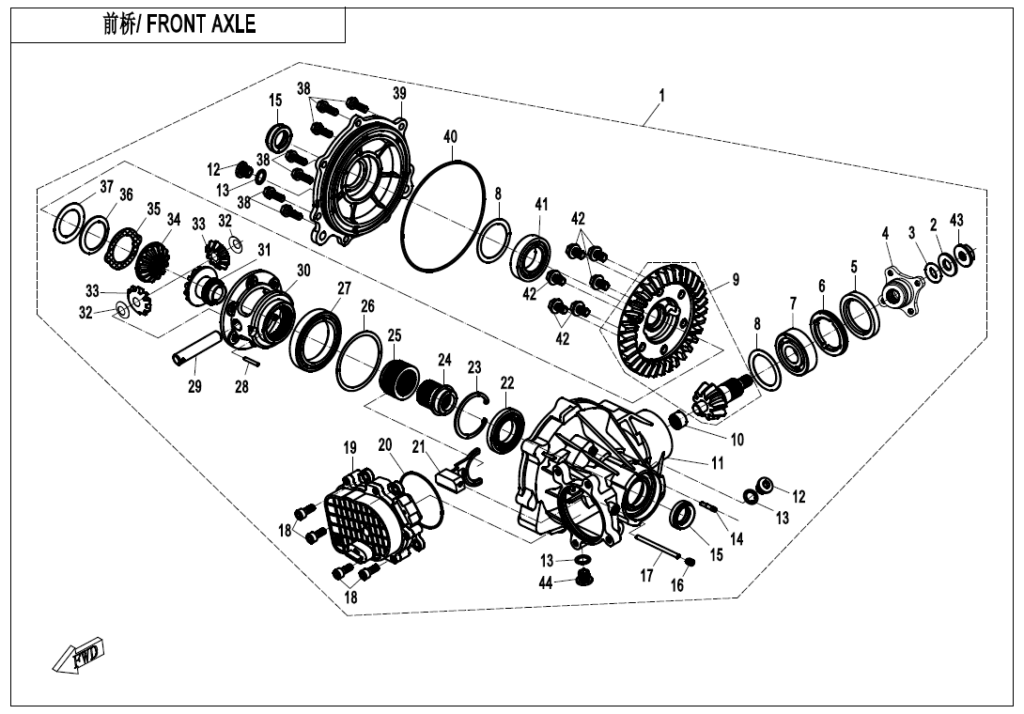

F31 FRONT AXLE
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | QDS1 FRONT GEAR CASE Q810-310000-10000 | Skladem | 22 621,00 Kč | ||
| 02 | NUT WASHER 0180-312005-0050 | Skladem | 43,52 Kč | ||
| 03 | O-Kroužek 0180-312006 | Skladem | 15,54 Kč | ||
| 04 | COUPLER, FRONT GEAR CASE Q810-311005 | Skladem | |||
| 05 | OIL SEAL 0180-312002 | Skladem | 93,22 Kč | ||
| 06 | BEARING RETAINER Q810-311003 | Skladem | 186,44 Kč | ||
| 07 | BEARING 16017/C2 30400-02502 | Skladem | 290,16 Kč | ||
| 08 | ADJUST SHIM(61*48*0.1) 0180-310006 | Skladem | 43,52 Kč | ||
| 08 | ADJUST SHIM(61*48*0.2) 0180-310006-0001 | Skladem | 43,52 Kč | ||
| 08 | ADJUST SHIM(61*48*0.3) 0180-310006-0002 | Skladem | 43,52 Kč | ||
| 08 | ADJUST SHIM(61*48*0.4) 0180-310006-0003 | Skladem | 43,52 Kč | ||
| 08 | ADJUST SHIM(61*48*0.5) 0180-310006-0004 | Skladem | 43,52 Kč | ||
| 08 | ADJUST SHIM(61*48*1.0) 0180-310006-0005 | Skladem | 46,61 Kč | ||
| 09 | BEVEL GEAR ASSY, FRONT GEAR CASE Q810-310010-00001 | Skladem | 5 033,79 Kč | ||
| 09 | BEVEL GEAR COMP., FRONT AXLE Q810-310010 | Skladem | 5 033,79 Kč | ||
| 10 | NEEDLE BEARING 30499-01502 | Skladem | 683,60 Kč | ||
| 11 | CASE , FRONT AXLE Q810-311001 | Skladem | 2 905,31 Kč | ||
| 12 | BOLT M14×1.25×12 0180-021008-0010 | Skladem | 58,03 Kč | ||
| 13 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 14 | JOINT , BREATHER HOSE 0180-311004-0020 | Skladem | 31,07 Kč | ||
| 15 | OIL SEAL 24×38×8 0180-311001 | Skladem | 62,15 Kč | ||
| 16 | Šroub (vrut) 30130-080010810 | Skladem | 15,54 Kč | ||
| 17 | PIN SHAFT 0180-310002 | Skladem | 62,15 Kč | ||
| 18 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
| 19 | MOTOR ASSY., FRONT AXLE Q800-314000 | Skladem | 3 697,66 Kč | ||
| 20 | O-RING φ81.2×1.9 0180-310001 | Skladem | 31,07 Kč | ||
| 21 | SHIFT FORK 0180-315000 | Skladem | 372,87 Kč | ||
| 22 | BEARING 16007 30400-03501 | Skladem | 233,05 Kč | ||
| 23 | RETAINER 62 30800-06200 | Skladem | 31,07 Kč | ||
| 24 | DRIVE CLUTCH COVER 0180-311003-0050 | Skladem | 574,85 Kč | ||
| 25 | DRIVE CLUTCH 0180-310003-0050 | Skladem | 466,09 Kč | ||
| 26 | ADJUST SHIM(83*71*0.2) 0180-310004-0001 | Skladem | 43,52 Kč | ||
| 26 | ADJUST SHIM(83*71*0.3) 0180-310004-0002 | Skladem | 43,52 Kč | ||
| 26 | ADJUST SHIM(83*71*0.4) 0180-310004-0003 | Skladem | 43,52 Kč | ||
| 26 | ADJUST SHIM(83*71*0.5) 0180-310004-0004 | Skladem | 46,61 Kč | ||
| 26 | ADJUST SHIM(83*71*1.0) 0180-310004-0005 | Skladem | 46,61 Kč | ||
| 26 | ADJUSTING WASHER 0180-310004 | Skladem | 43,52 Kč | ||
| 27 | BEARING 61912 30499-06000 | Skladem | 1 273,98 Kč | ||
| 28 | PIN 30906-0503000 | Skladem | 29,02 Kč | ||
| 29 | GEAR SHAFT(CENTER),DIFF 0180-313002-10000 | Skladem | 174,09 Kč | ||
| 30 | FRONT DIFFERENTIAL CASE Q810-313002-10000 | Skladem | 1 709,00 Kč | ||
| 31 | DRIVE GEAR, DIFFERENTIAL 0180-313001-00001 | Skladem | 1 040,94 Kč | ||
| 32 | WEARING RING 0181-313011 | Skladem | 31,07 Kč | ||
| 33 | GEAR(CENTER), DIFFERENTIAL 0180-313003-00004 | Skladem | 233,05 Kč | ||
| 34 | DRIVEN GEAR,DIFFERENTIAL 0180-313006-00001 | Skladem | 668,07 Kč | ||
| 35 | GASKET 0180-313009-0010 | Skladem | 58,03 Kč | ||
| 36 | PLAIN WASHER 0180-313005-10000 | Skladem | 46,61 Kč | ||
| 37 | ADJUST GASKET 0180-313010-0005 | Skladem | 43,52 Kč | ||
| 37 | ADJUST GASKET 0180-313010-0004 | Skladem | 43,52 Kč | ||
| 37 | ADJUST GASKET 0180-313010-0003 | Skladem | 43,52 Kč | ||
| 37 | ADJUST GASKET 0180-313010-0002 | Skladem | 43,52 Kč | ||
| 37 | ADJUST GASKET 0180-313010-0001 | Skladem | 43,52 Kč | ||
| 37 | ADJUST GASKET 0180-313010 | Skladem | 46,61 Kč | ||
| 38 | Šroub 0180-310100-0010 | Skladem | 31,07 Kč | ||
| 39 | CASE COVER, FRONT GEAR CASE Q810-310001-10000 | Skladem | |||
| 40 | O-RING φ141×2.4 0180-310005 | Skladem | 43,52 Kč | ||
| 41 | BEARING 6007 30400-03502 | Skladem | 333,68 Kč | ||
| 42 | BOLT M10×1.25×18 0180-313100-0010 | Skladem | 31,07 Kč | ||
| 43 | Matice 0180-312004-0010 | Skladem | 43,52 Kč | ||
| 44 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
