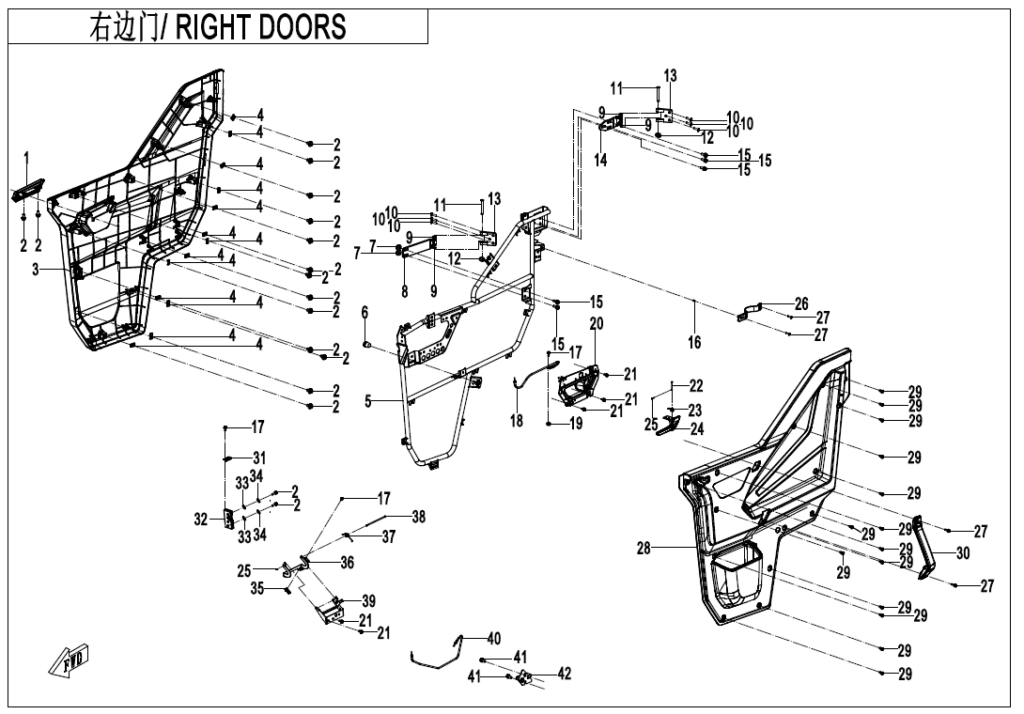

F37-4-V2 RIGHT DOORS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | OUTSIDE HANDLE, RH DOOR 5HY0-374401-0BA00 | Skladem | |||
| 01 | OUTSIDE HANDLE, RH DOOR 5HY0-374401-0EK00 | Skladem | |||
| 01 | OUTSIDE HANDLE, RH DOOR 5HY0-374401-0RE00 | Skladem | |||
| 01 | OUTSIDE HANDLE, RH DOOR 5HY0-374401-0W000 | Skladem | |||
| 01 | OUTSIDE HANDLE, RH DOOR 5HY0-374401-0EJ00 | Skladem | |||
| 01 | OUTSIDE HANDLE, RH DOOR MATTE PEARL BLACK 5HY0-374401-0B800 | Skladem | |||
| 02 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 03 | DECO PLATE, RH LOWER DOOR 5HY0-374002-0BA00 | Skladem | |||
| 03 | DECO PLATE, RH LOWER DOOR 5HY0-374002-0EK00 | Skladem | |||
| 03 | DECO PLATE, RH LOWER DOOR 5HY0-374002-0RE00 | Skladem | |||
| 03 | DECO PLATE, RH LOWER DOOR 5HY0-374002-0W000 | Skladem | |||
| 03 | DECO PLATE, RH LOWER DOOR 5HY0-374002-0EJ00 | Skladem | |||
| 04 | NUT CLIP M6 8030-040800 | Skladem | 15,54 Kč | ||
| 05 | RH DOOR FRAME ASSY 5HY0-374200 | Skladem | |||
| 06 | CUSHION RUBBER 9030-370901-10000 | Skladem | |||
| 07 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 08 | LOWER CONNECTING PLATE 5HY0-372006 | Skladem | |||
| 09 | Pouzdro 5HY0-372032 | Skladem | |||
| 10 | Šroub (vrut) 30122-080016810 | Skladem | 31,07 Kč | ||
| 11 | PIN SHAFT 5HY0-372005 | Skladem | |||
| 12 | CIRCLIP 6 30802-00605 | Skladem | 15,54 Kč | ||
| 13 | MOUNTING PLATE, JOINT PLATE 5HY0-372031 | Skladem | |||
| 14 | UPPER CONNECTNG PLATE 5HY0-372001 | Skladem | |||
| 15 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 16 | Pouzdro 6090-040303 | Skladem | 15,54 Kč | ||
| 17 | Matice 30006-050010810 | Skladem | 15,54 Kč | ||
| 18 | DOOR CABLE ASSY 5HY0-372310 | Skladem | |||
| 19 | NUT M5 30200-050810 | Skladem | 15,54 Kč | ||
| 20 | SOCKET, RIGHT INSIDE HANDLE 5HY0-374307-10000 | Skladem | |||
| 21 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 22 | PIN SHAFT 5HY0-372301 | Skladem | 31,07 Kč | ||
| 23 | RH HANDLEBAR SPRING 5HY0-374302 | Skladem | |||
| 24 | INSIDE HANDLE, RH DOOR 5HY0-374306-0B800 | Skladem | |||
| 24 | INSIDE HANDLE, RH DOOR ATHENS BLUE 5HY0-374306-0EK00 | Skladem | |||
| 24 | INSIDE HANDLE, RH DOOR MATTE ROYAL BLUE 5HY0-374306-0EJ00 | Skladem | |||
| 24 | INSIDE HANDLE, RH DOOR MATTE TITANIUM GREY 5HY0-374306-0BA00 | Skladem | |||
| 24 | INSIDE HANDLE, RH DOOR NEW MAPLE CAMO 5HY0-374306-0W000 | Skladem | |||
| 24 | INSIDE HANDLE, RH DOOR TRUE TIMBER CAMO 5HY0-374306-0RE00 | Skladem | |||
| 25 | COTTER PIN 30903-0160810 | Skladem | |||
| 26 | RUBBER 5HY0-372008 | Skladem | |||
| 27 | INNER HEX SCREW M6x20 A000-040703 | Skladem | 31,07 Kč | ||
| 28 | INNER PLATE, RH LOWER DOOR 5HY0-374003 | Skladem | |||
| 29 | SELF-TAPPING SCREW 30118-420130010 | Skladem | 29,02 Kč | ||
| 30 | INNER ARMREST, RH DOOR 5HY0-374004 | Skladem | 124,29 Kč | ||
| 31 | CABLE BRACKET 5HY0-372007 | Skladem | |||
| 32 | RH DOOR LOCK ASSY 5HY0-374100 | Skladem | |||
| 33 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 34 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 35 | RH CABLE BRACKET ASSY 5HY0-374440 | Skladem | |||
| 36 | RETAINER PLATE, RH HANDLEBAR 5HY0-374410 | Skladem | |||
| 37 | RH HANDLEBAR SPRING 5HY0-374404 | Skladem | |||
| 38 | PIN SHAFT 5HY0-372403 | Skladem | |||
| 39 | RH HANDLEBAR BRACKET ASSY 5HY0-374420 | Skladem | |||
| 40 | DOOR CABLE ASSY 5HY0-372430 | Skladem | |||
| 41 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 42 | RH LOCK GROOVE ASSY 5HY0-374020 | Skladem | 130,57 Kč | ||
