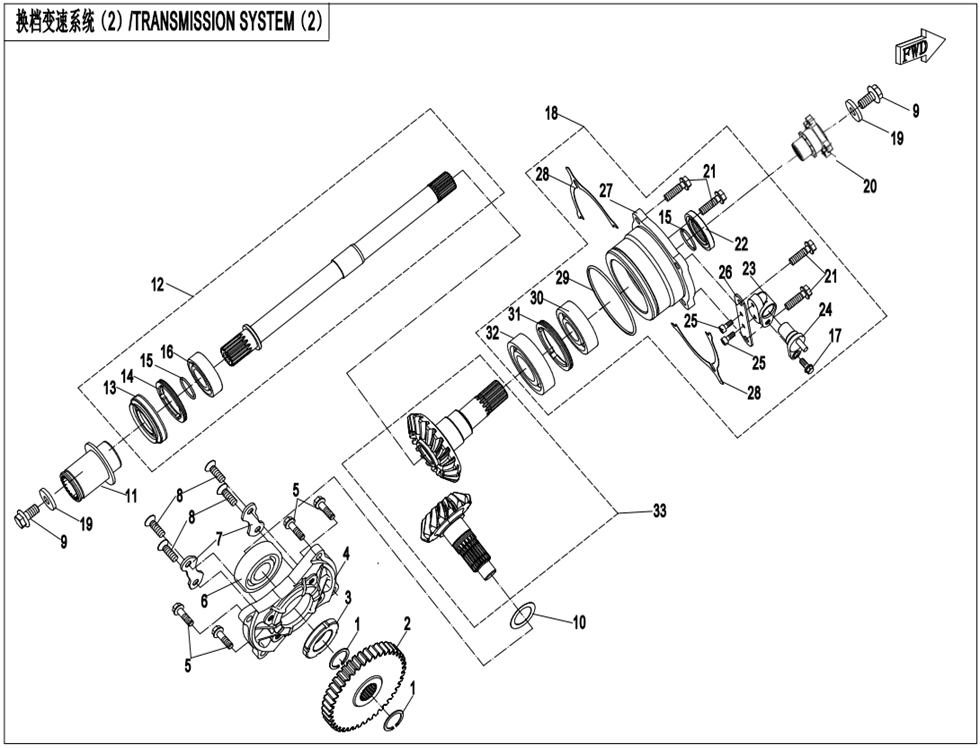

Převodovka V
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | CIRCLIP 25 0180-061007-0050 | Skladem | 15,54 Kč | ||
| 02 | OUTPUT DRIVEN GEAR 0800-062102 | Skladem | 1 258,45 Kč | ||
| 03 | LOCK NUT, BEVEL GEAR 0JYA-062102 | Skladem | 101,56 Kč | ||
| 04 | BEARING SEAT,DRIVE BEVEL GEAR 0JYA-062103 | Skladem | 683,60 Kč | ||
| 05 | BOLT M8*28 0JYA-062104 | Skladem | 43,52 Kč | ||
| 06 | BEARING 28×68×18 0110-041007 | Skladem | 1 196,30 Kč | ||
| 07 | LIMITATOR, BEARING 0180-062104-0010 | Skladem | 46,61 Kč | ||
| 08 | SCREW M8X25 30124-080025810 | Skladem | 15,54 Kč | ||
| 09 | BOLT M10×1.25×30 0JWA-060002 | Skladem | 62,15 Kč | ||
| 10 | ADJUST GASKET, DRIVE BEVEL GEAR 0JYA-062101-00500 | Skladem | 15,54 Kč | ||
| 10 | ADJUST GASKET, DRIVE BEVEL GEAR 0JYA-062101-00400 | Skladem | 15,54 Kč | ||
| 10 | ADJUST GASKET, DRIVE BEVEL GEAR 0JYA-062101-00300 | Skladem | 15,54 Kč | ||
| 10 | ADJUST GASKET, DRIVE BEVEL GEAR 0JYA-062101-00200 | Skladem | 15,54 Kč | ||
| 10 | ADJUST GASKET, DRIVE BEVEL GEAR 0JYA-062101-00100 | Skladem | 15,54 Kč | ||
| 11 | SLEEVE,FRONT OUTPUT 0GQ0-060100 | Skladem | 605,92 Kč | ||
| 12 | FRONT OUTPUT SHAFT ASSY 0JWA-062300-10000 | Není skladem | |||
| 12 | FRONT OUTPUT SHAFT ASSY 0JWA-062300-10001 | Skladem | 1 755,61 Kč | ||
| 13 | OIL SEAL 35*61*9（14） 0JWA-062302 | Skladem | 372,87 Kč | ||
| 14 | BEARING RETAINER, FRONT OUTPUT SHAFT 0180-060008 | Skladem | 155,36 Kč | ||
| 15 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 16 | Ložisko 30400-02501 | Skladem | 155,36 Kč | ||
| 17 | BOLT M6×14 30001-060014810 | Skladem | 15,54 Kč | ||
| 18 | DRIVEN BEVEL GEAR ASSY. 0800-0622B0 | Není skladem | |||
| 19 | WASHER 10×27.5×4 0GR0-062204 | Skladem | 43,52 Kč | ||
| 20 | COUPLER ASSY., REAR TRANSMISSION OUTPUT 0JYA-060100 | Skladem | 978,79 Kč | ||
| 21 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 22 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 23 | SEAT, SPEED SENSOR 0800-062208 | Skladem | 145,08 Kč | ||
| 24 | SPEED SENSOR 7020-150400 | Skladem | 652,53 Kč | ||
| 25 | SCREW M5x12 30102-050012810 | Skladem | 15,54 Kč | ||
| 26 | PLATE,SPEED SENSOR 0800-062209 | Skladem | 87,05 Kč | ||
| 27 | BEARING HOUSING, DRIVEN BEVEL GEAR 0800-062202-1000 | Skladem | 943,01 Kč | ||
| 28 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0004 | Skladem | 31,07 Kč | ||
| 28 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0003 | Skladem | 31,07 Kč | ||
| 28 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0002 | Skladem | 31,07 Kč | ||
| 28 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0001 | Skladem | 31,07 Kč | ||
| 28 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203 | Skladem | 43,52 Kč | ||
| 29 | O-SEAL RING 88×2.5 0180-062205 | Skladem | 116,06 Kč | ||
| 30 | Ložisko 30499-02501 | Skladem | 636,99 Kč | ||
| 31 | STOPPER NUT, BEARING 0800-062206 | Skladem | 124,29 Kč | ||
| 32 | Ložisko 30400-03500 | Skladem | 264,12 Kč | ||
| 33 | BEVEL GEAR ASSY 0JYA-0622B0-00001 | Není skladem | |||
| 33 | BEVEL GEAR ASSY 0JYA-0622B0-00002 | Skladem | 4 008,39 Kč | ||
| 33 | DRIVE BEVEL GEAR 0JYA-0622B0 | Skladem | 3 449,08 Kč | ||
