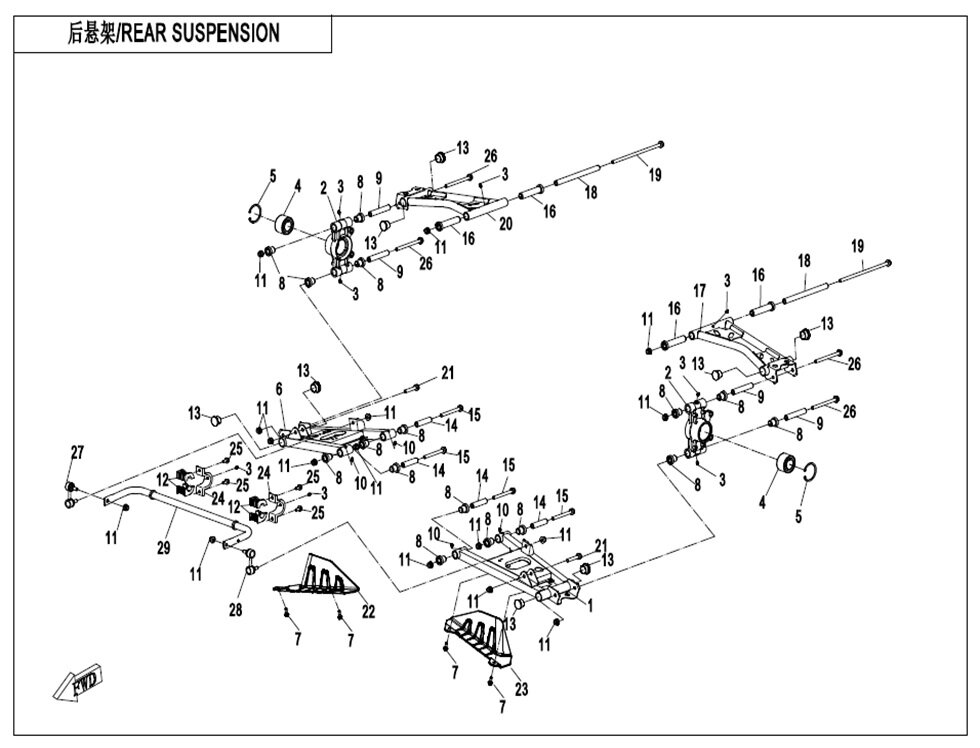

Zadní zavěšení I
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR LOWER SWING ARM,LH 5HY0-060210 | Skladem | 2 050,80 Kč | ||
| 02 | REAR BEARING CARRIER 5HY0-060703 | Skladem | 2 066,34 Kč | ||
| 03 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 04 | HUB BEARING 30411-03080 | Skladem | 1 475,96 Kč | ||
| 05 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 06 | REAR LOWER SWING ARM,RH 5HY0-060410 | Skladem | 2 050,80 Kč | ||
| 07 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 08 | SHORT BUSH，SWING ARM 9060-050003 | Skladem | 145,08 Kč | ||
| 09 | MIDDLE SPACER, REAR BEARING CARRIER 5HY0-060701-00001 | Skladem | 145,08 Kč | ||
| 10 | GREASE NOZZLE 3121400 | Skladem | 31,07 Kč | ||
| 11 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 12 | SUPPORT, STABILIZER BAR 7000-060003 | Skladem | 101,56 Kč | ||
| 13 | PLUG，REAR SUSPENSION 9060-060002 | Skladem | 46,61 Kč | ||
| 14 | MIDDLE SPACER, REAR LOWER SWING ARM 9060-060201-00002 | Skladem | 116,06 Kč | ||
| 15 | Šroub 30001-102095110 | Skladem | 58,03 Kč | ||
| 16 | LONG BUSH，SWING ARM 9060-050002 | Skladem | 217,62 Kč | ||
| 17 | REAR UPPER SWING ARM,LH 5HY0-060110 | Není skladem | |||
| 18 | MIDDLE SPACER, REAR UPPER SWING ARM 9060-060101-00002 | Skladem | 203,11 Kč | ||
| 19 | MOUNTING SHAFT, REAR ARM 4060-060101 | Skladem | 155,36 Kč | ||
| 20 | REAR UPPER SWING ARM,RH 5HY0-060310 | Skladem | 1 677,93 Kč | ||
| 21 | Šroub 30006-102055110 | Skladem | 31,07 Kč | ||
| 22 | GUARD, REAR LH SWING ARM 5HYV-060201-1000 | Skladem | 124,29 Kč | ||
| 23 | GUARD, REAR RH SWING ARM 5HYV-060401-1000 | Skladem | 124,29 Kč | ||
| 24 | RETAINING COVER 9030-060002 | Skladem | 77,68 Kč | ||
| 25 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 26 | Šroub 30001-102120110 | Skladem | 62,15 Kč | ||
| 27 | BALL PIN （RH） 9010-060800-1000 | Skladem | 792,36 Kč | ||
| 27 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 28 | BALL PIN （LH） 9010-060700-1000 | Skladem | 792,36 Kč | ||
| 28 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 29 | REAR SWAY BAR ASSY 5HY0-060610 | Skladem | 1 273,98 Kč | ||
