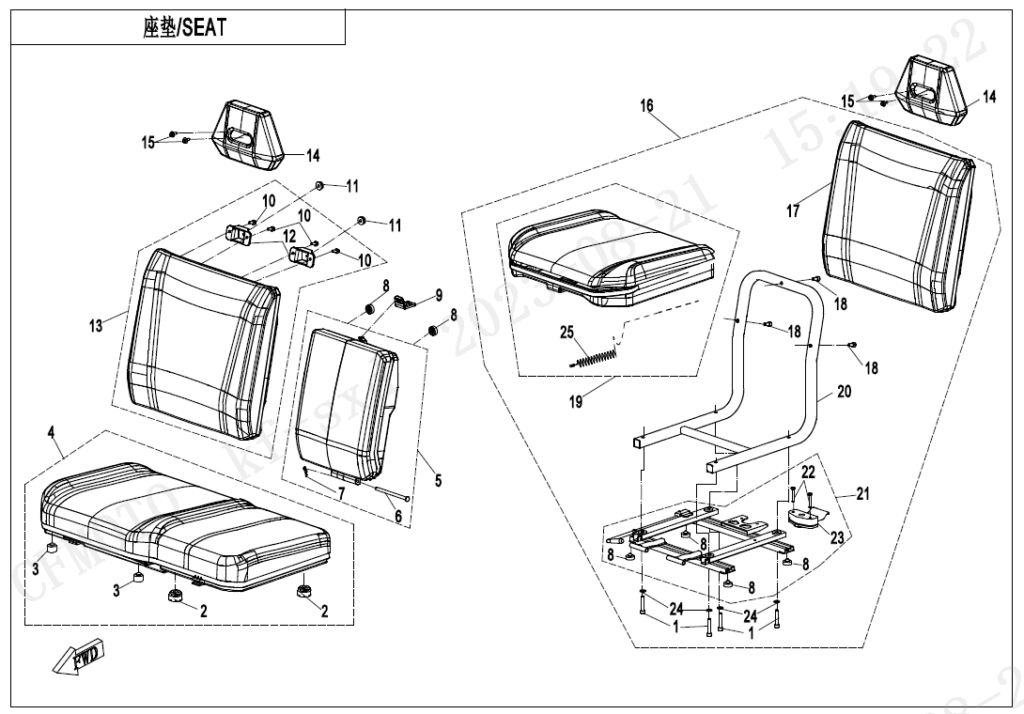

F13 SEAT
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Šroub (vrut) 30102-080045170 | Skladem | |||
| 02 | RUBBER SLEEVE, REAR SEAT 7020-130001 | Skladem | 62,15 Kč | ||
| 03 | CUSHION RUBBER WAHSER 5HY0-132004 | Skladem | |||
| 04 | PASSENGER SEAT 5HY0-132000-40000 | Skladem | 4 800,75 Kč | ||
| 05 | BACKREST 5HYV-134000-1C00 | Skladem | 1 475,96 Kč | ||
| 06 | PIN SHAFT 30904-080A220 | Skladem | |||
| 07 | LOCK PIN 30910-0183220 | Skladem | 58,03 Kč | ||
| 08 | RUBBER 6KM0-130205 | Skladem | 77,68 Kč | ||
| 09 | TIE BAND, RACK COVER 7020-140002 | Skladem | 87,05 Kč | ||
| 10 | BOLT M6x16 30006-060016870 | Skladem | 15,54 Kč | ||
| 11 | BACKREST DAMPING MAT 5HY#-130002-1000 | Skladem | 31,07 Kč | ||
| 12 | REAR BRACKET 5HY#-133001-1000 | Skladem | 46,61 Kč | ||
| 13 | BACKREST ASSY 5HY#-133000-1000 | Skladem | 2 703,33 Kč | ||
| 14 | HEAD REST 5HY0-135000 | Skladem | 1 398,28 Kč | ||
| 15 | BOLT M6x14 5HY#-040001-1000 | Skladem | 15,54 Kč | ||
| 16 | MAIN SEAT ASSY 5HY3-131000-20000 | Skladem | 9 042,18 Kč | ||
| 17 | MAIN BACKREST 5HY0-131300-10000 | Skladem | |||
| 18 | SCREW M8x16 30102-080016170 | Skladem | |||
| 19 | MAIN SEAT ASSY 5HY3-1312A0 | Skladem | |||
| 20 | SUPPORT 5HY0-131010 | Skladem | |||
| 21 | BOTTOM BRACKET, MAIN SEAT 5HY0-131100-10000 | Skladem | |||
| 22 | Šroub 30003-060035840 | Skladem | |||
| 23 | SEAT LOCK 5HY0-131140 | Skladem | 1 180,77 Kč | ||
| 24 | Podložka 30306-080142 | Skladem | 15,54 Kč | ||
| 25 | PRESSURE SENSOR 9GQS-130010 | Skladem | |||
