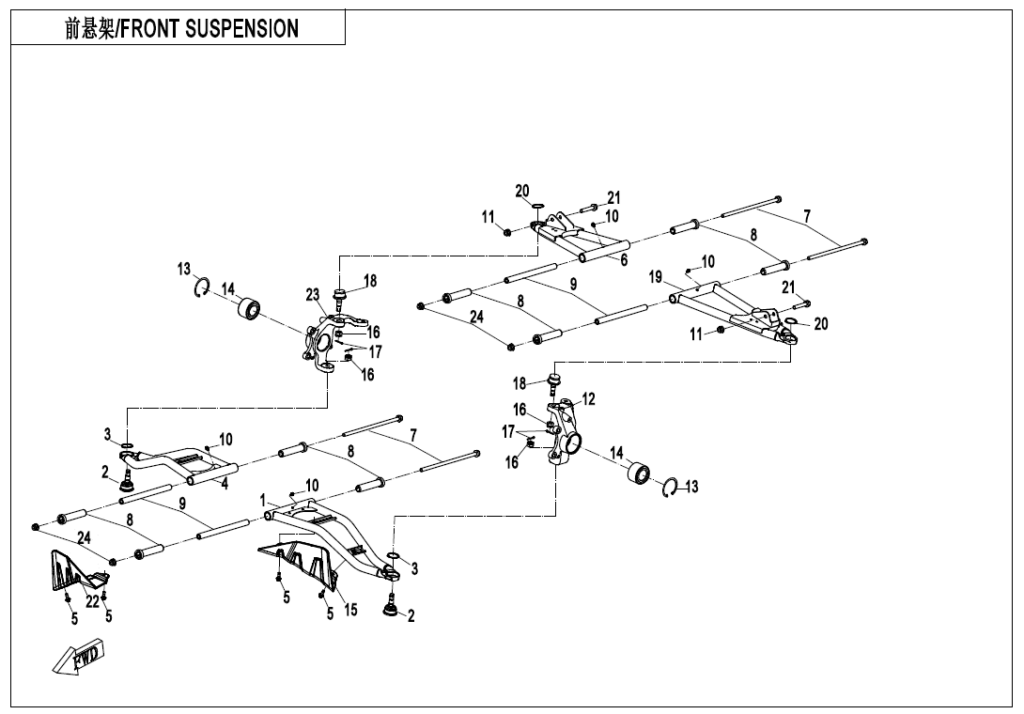

F05-1-V2 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT LH LOWER SWING ARM ASSY 5SYV-050210-6001-0BP00 | Skladem | |||
| 02 | BALL PIN COMP. 9060-050900-10000 | Skladem | 1 009,87 Kč | ||
| 03 | CIRCLIPS FOR SHAFT 34 30801-03405 | Skladem | 15,54 Kč | ||
| 04 | FRONT RH LOWER SWING ARM ASSY 5SYV-050410-6001-0BP00 | Skladem | |||
| 05 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 06 | FRONT RH UPPER SWING ARM ASSY 5SYV-050310-6001-0BP00 | Skladem | |||
| 07 | SHAFT, SWNG ARM 5SYV-050103-6000 | Skladem | 186,44 Kč | ||
| 08 | DAMPING SLEEVE, FRONT UPPER SWING ARM 5BY0-050102 | Skladem | 139,83 Kč | ||
| 09 | MIDDLE SPACER, SWING ARM 5SYV-050101-6000 | Není skladem | 201,97 Kč | ||
| 10 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 11 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 12 | LH STEERING KNUCKLE 5HY0-050701-10000 | Skladem | 2 734,41 Kč | ||
| 13 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 14 | HUB BEARING 30411-03081 | Skladem | 963,26 Kč | ||
| 15 | GUARD, FRONT LH SWING ARM 5ASV-050201-6000 | Skladem | 108,75 Kč | ||
| 16 | Matice 30219-122810 | Skladem | 31,07 Kč | ||
| 17 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 18 | MAIN PIN COMP. 9030-050600-10000 | Skladem | 1 009,87 Kč | ||
| 19 | FRONT LH UPPER SWING ARM ASSY 5SYV-050110-6001-0BP00 | Skladem | |||
| 20 | CIRCLIPS FOR SHAFT32 30801-03205 | Skladem | 15,54 Kč | ||
| 21 | Šroub 30006-102055110 | Skladem | 31,07 Kč | ||
| 22 | GUARD, FRONT RH SWING ARM 5ASV-050401-6000 | Skladem | 108,75 Kč | ||
| 23 | RH STEERING KNUCKLE 5HY0-050801-10000 | Skladem | 2 734,41 Kč | ||
| 24 | Matice 30204-122910 | Skladem | |||
