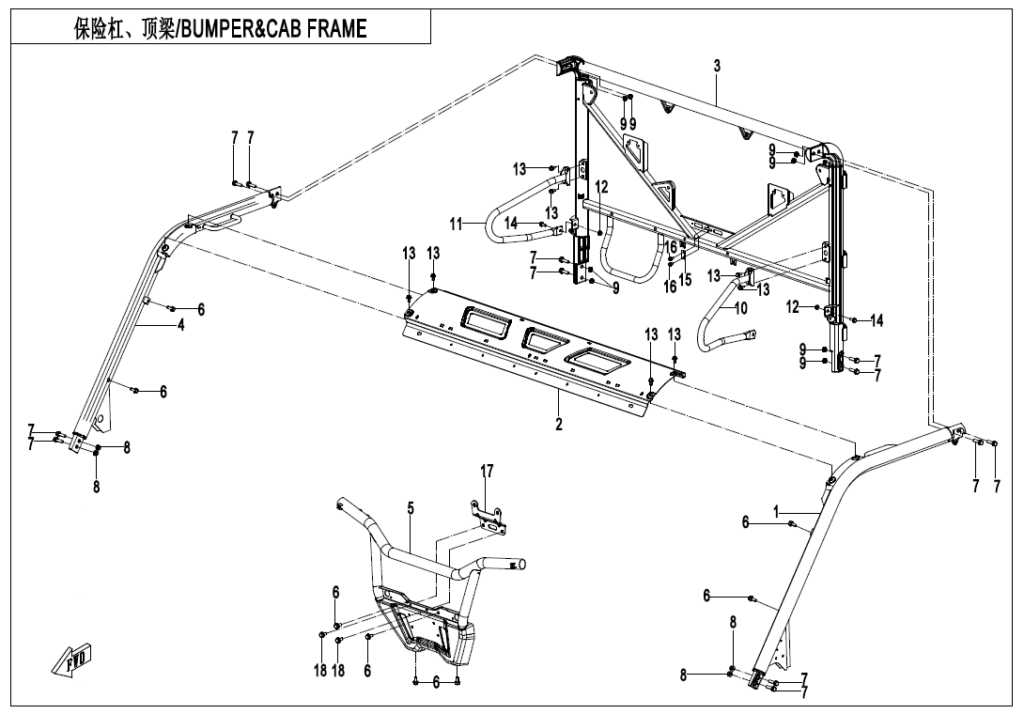

F23-V2 BUMPER @^ CAB FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT CAB LH ASSY 5HYV-230100-1H02-0BP00 | Skladem | 9 446,13 Kč | ||
| 02 | TOP ROOF BRACKET 5HYV-230107-1H00-0BP00 | Skladem | 9 787,93 Kč | ||
| 03 | REAR CAB ASSY 5HY0-230200-9BP00 | Skladem | |||
| 03 | REAR CAB ASSY 5HY0-230200-ABP00 | Skladem | |||
| 04 | FRONT CAB RH ASSY 5HYV-230400-1H02-0BP00 | Skladem | 9 446,13 Kč | ||
| 05 | BUMPER ASSY 5HY0-231100-2BP00 | Skladem | |||
| 06 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 07 | BOLT 30006-102035160 | Skladem | 46,61 Kč | ||
| 08 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 09 | Matice 30225-102810 | Skladem | 31,07 Kč | ||
| 10 | LH PROTECTING PIPE, PASSENGER 5HY0-230410-2BP00 | Skladem | |||
| 11 | RH PROTECTING PIPE, PASSENGER 5HY0-230420-2BP00 | Skladem | |||
| 12 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 13 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 14 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 15 | FIXING SEAT, MIDDLE BACKREST 5HY0-230520 | Skladem | |||
| 16 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 17 | REINFORCEMENT BRACKET, WINCH BRACKET 5HY0-230010 | Skladem | |||
| 18 | Šroub (vrut) 30102-102020810 | Skladem | 31,07 Kč | ||
