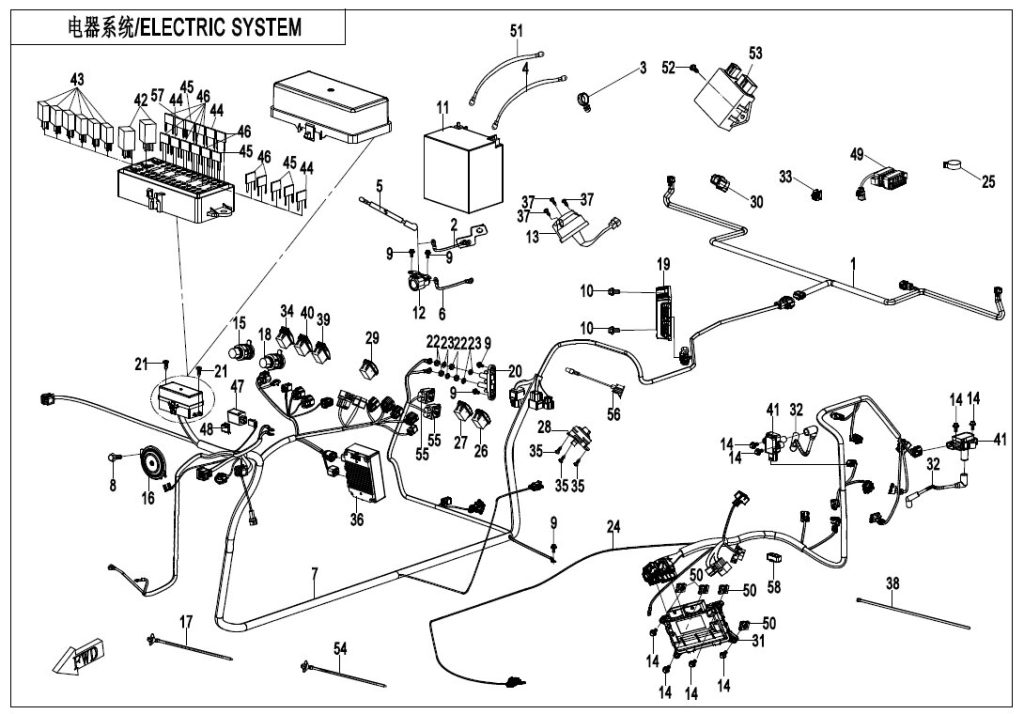

F15-1-V5 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | TAIL LIGHT AUXILIARY CABLE 5HYV-150300-3100 | Skladem | |||
| 02 | CABLE, STARTER RELAY 5HY0-150240-10000 | Skladem | 372,87 Kč | ||
| 03 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 04 | POSITIVE WIRE,BATTERY 5HY0-150210-10000 | Skladem | 435,02 Kč | ||
| 05 | CABLE,STARTER 5HY0-150220 | Skladem | 823,43 Kč | ||
| 06 | NEGATIVE CABLE, STARTER 5HY0-150250-10000 | Skladem | 372,87 Kč | ||
| 07 | MAIN HARNESS 5HYV-150100-3100 | Skladem | |||
| 08 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 09 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 10 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 11 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 12 | STARTER RELAY 5BWV-150510-5300 | Skladem | 823,43 Kč | ||
| 13 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 14 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 15 | POWER OUTLET SOCKET ASSY 9DSV-150500-6R01 | Skladem | 543,77 Kč | ||
| 16 | ELECTRIC HORN 6060-150600 | Skladem | 275,65 Kč | ||
| 17 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 18 | USB OUTLET SOCKET ASSY 9DSV-150600-6R01 | Skladem | 1 072,01 Kč | ||
| 19 | REGULATOR 9DSV-151000-4000-10 | Skladem | 3 588,91 Kč | ||
| 20 | TERMINAL, CABLE 5SY0-151610-6000 | Skladem | 233,05 Kč | ||
| 21 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 22 | Matice 7030-151613 | Skladem | |||
| 23 | Podložka 7030-151614 | Skladem | |||
| 24 | EFI AUXILIARY CABLE 5HYV-150200-2F02 | Skladem | |||
| 25 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 26 | ILLUMINATION SWITCH 5ASV-169020-5300 | Skladem | 497,16 Kč | ||
| 27 | DIMMER SWICH 5ASV-169030-5300 | Skladem | 497,16 Kč | ||
| 28 | 2WD/4WD SWITCH ASSY 5ASV-169080-6R01 | Skladem | 1 009,87 Kč | ||
| 29 | HORN SWITCH 5ASV-169040-5300 | Skladem | 497,16 Kč | ||
| 30 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
| 31 | ECM ASSY 5HYV-001000-2F01 | Skladem | |||
| 31 | ECM ASSY 5HYV-001000-2F01-10 | Skladem | |||
| 32 | HIGH-TENSION CABLE 0GRB-178000-10000 | Skladem | 372,87 Kč | ||
| 33 | CLIP CFCV-CBC005-2000-M1 | Skladem | 15,54 Kč | ||
| 34 | MODE SWITCH 5ASV-169090-5300 | Skladem | 466,09 Kč | ||
| 35 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 36 | EPS CONTROLLER 5HYV-150810-1800 | Skladem | 10 720,12 Kč | ||
| 37 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 38 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 39 | TURNING SWITCH 5ASV-169060-5300 | Skladem | 497,16 Kč | ||
| 40 | HAZARD SWITCH 5HYV-169070-6000 | Skladem | 512,70 Kč | ||
| 41 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 42 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 43 | AUXILIARY RELAY 5BY4-150330 | Skladem | 203,11 Kč | ||
| 44 | FUSE 5A 8010-151301 | Skladem | 15,54 Kč | ||
| 45 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 46 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 47 | FLASHER 5HYV-161000-3300 | Skladem | |||
| 48 | SELF-TAPPING SCREW 30110-420160070 | Skladem | 15,54 Kč | ||
| 49 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 50 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 51 | NEGATIVE WIRE,BATTERY 5HY0-150230-10000 | Skladem | 481,63 Kč | ||
| 52 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 53 | DRL CONTROLLER 5SYV-150880-7500 | Skladem | |||
| 54 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 55 | FUSE (40A) 9CR6-103501 | Skladem | 101,56 Kč | ||
| 56 | LINK CABLE, OIL PRESSURE SWITCH 0JWA-012202-10000 | Skladem | |||
| 57 | 20A FUSE 806A-151306 | Skladem | 31,07 Kč | ||
| 58 | DIAGNOSIS CONNECTOR COVER CFCV-11H016-2000-M1 | Skladem | 15,54 Kč | ||
