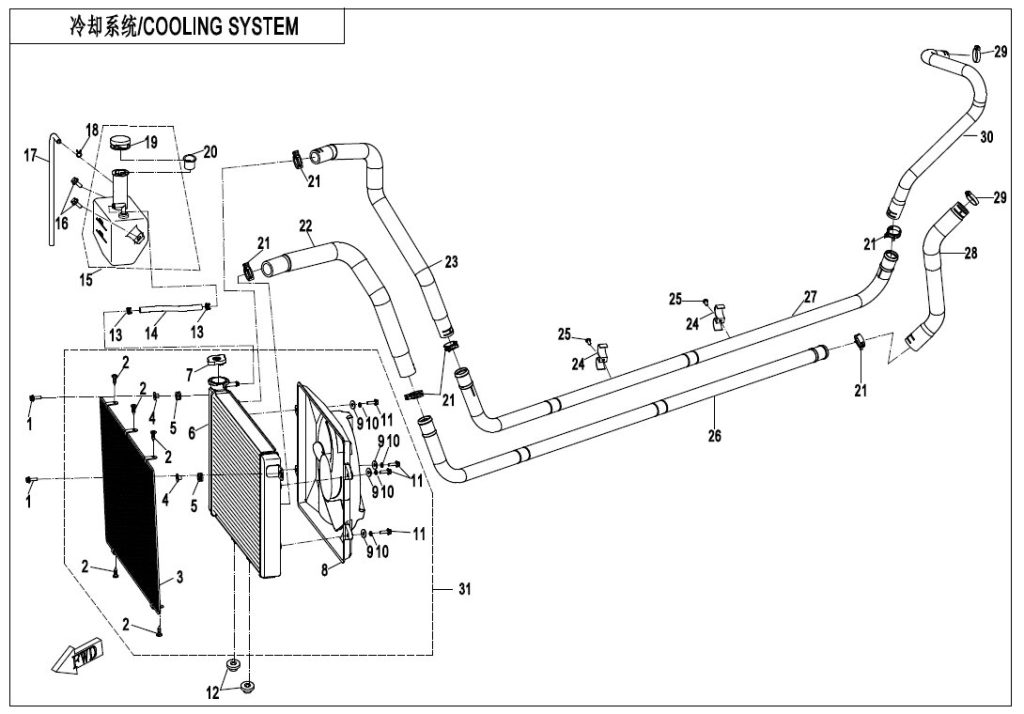

F18-V2 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 02 | SELF-TAPPING SCREW ST3.5×9.5 30110-350095010 | Skladem | 15,54 Kč | ||
| 03 | PROTECTOR, RADIATOR 5HY0-181010 | Skladem | 792,36 Kč | ||
| 04 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 05 | RUBBER CUSHION ，RADIATOR 9060-180027 | Skladem | 15,54 Kč | ||
| 06 | RADIATOR ASSY 5HY0-181100 | Skladem | 10 269,56 Kč | ||
| 07 | CAP，WATER FILLER 8010-180024 | Skladem | 232,13 Kč | ||
| 08 | FAN MOTOR ASSY 5HY0-181400-10000 | Skladem | 5 328,99 Kč | ||
| 09 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 10 | Podložka 30303-060920 | Skladem | 15,54 Kč | ||
| 11 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 12 | PIN RUBBER CAP, RADIATOR 9060-180026 | Skladem | 43,52 Kč | ||
| 13 | CLAMP A13 30601-113010 | Skladem | 15,54 Kč | ||
| 14 | CONNECTING PIPE, RESERVOIR TANK 5HY0-180003 | Skladem | 62,15 Kč | ||
| 15 | RESERVOIR TANK ASSY 5HY0-180010 | Skladem | 435,02 Kč | ||
| 16 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 17 | OVERFLOW HOSE, RESERVOIR 5HY0-180008 | Skladem | 46,61 Kč | ||
| 18 | CLAMP A11 30601-111010 | Skladem | 15,54 Kč | ||
| 19 | CAP，RESERVOIR TANK 8010-180023 | Skladem | 46,61 Kč | ||
| 20 | GASKET, RESERVOIR 9060-180903 | Skladem | 29,02 Kč | ||
| 21 | CLAMP B32 6WWV-180006-5000 | Skladem | 87,05 Kč | ||
| 22 | RADIATOR WATER OUTLET HOSE 5HYV-180002-1C01 | Skladem | |||
| 23 | RADIATOR WATER INLET HOSE 5HYV-180001-1C01 | Skladem | |||
| 24 | CLASP,WATER HOSE 9030-180006 | Skladem | 15,54 Kč | ||
| 25 | SCREW COMP 30112-060016410 | Skladem | 31,07 Kč | ||
| 26 | WATER OUTLET PIPE, ALUMINUM 5HYV-180007-1C01 | Skladem | |||
| 27 | WATER INLET PIPE, ALUMINUM 5HYV-180006-1C01 | Skladem | |||
| 28 | WATER INLET PIPE,ENGINE 5HYV-180005-1C01 | Skladem | |||
| 29 | CLAMP ，WATER HOSE 9010-180007 | Skladem | 62,15 Kč | ||
| 30 | WATER OUTLET PIPE,ENGINE 5HYV-180004-1C01 | Skladem | |||
| 31 | RADIATOR ASSY 5HY0-181000-10000 | Skladem | |||
