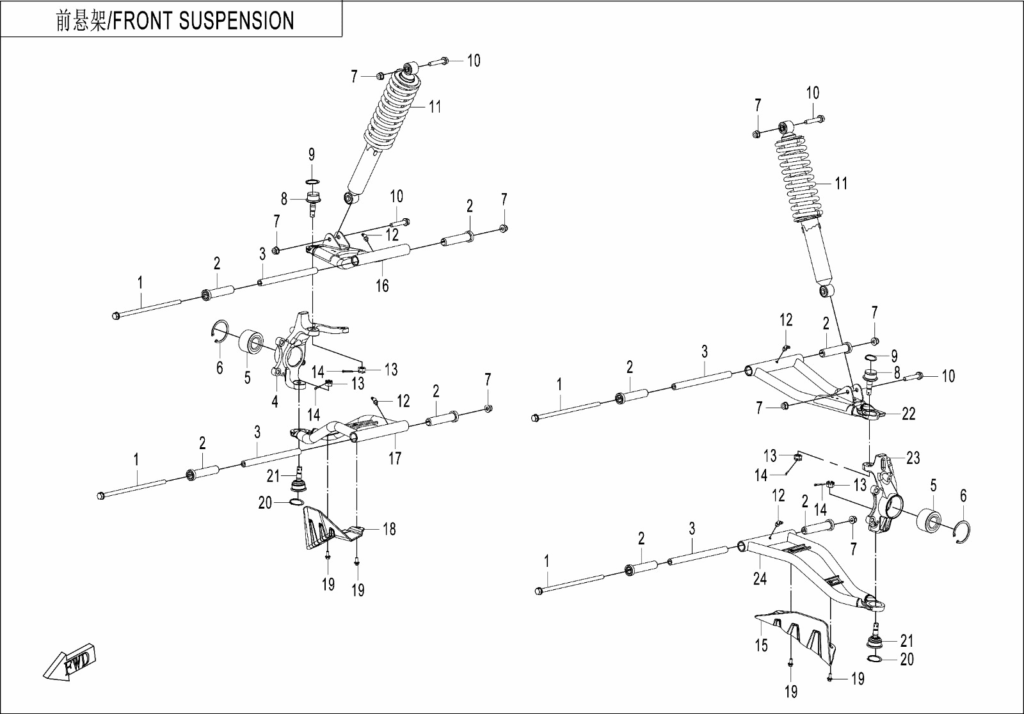

F05 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MOUNTING SHAFT, REAR ARM 4060-060101 | Skladem | 155,36 Kč | ||
| 2 | LONG BUSHING 5ASV-050001-6000 | Skladem | 203,11 Kč | ||
| 3 | MIDDLE SPACER, REAR UPPER SWING ARM 9060-060101-00002 | Skladem | 203,11 Kč | ||
| 4 | RH STEERING KNUCKLE 5ASV-050801-6000 | Skladem | 2 936,38 Kč | ||
| 5 | HUB BEARING 30411-03080 | Skladem | 1 475,96 Kč | ||
| 5 | HUB BEARING 30411-03081 | Skladem | 963,26 Kč | ||
| 6 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 7 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 8 | MAIN PIN COMP. 9030-050600-10000 | Skladem | 1 009,87 Kč | ||
| 9 | CIRCLIPS FOR SHAFT32 30801-03205 | Skladem | 15,54 Kč | ||
| 10 | Šroub 30006-102055110 | Skladem | 31,07 Kč | ||
| 11 | FRONT SHOCK ABSORBER ASSY 5ASV-050500-6000-M1 | Skladem | 5 344,52 Kč | ||
| 12 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 13 | Matice 30219-122810 | Skladem | 31,07 Kč | ||
| 14 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 15 | GUARD, FRONT LH SWING ARM 5ASV-050201-6000 | Skladem | 108,75 Kč | ||
| 16 | FRONT RH UPPER SWING ARM ASSY 5ASV-050310-6003 | Skladem | |||
| 16 | FRONT UPPER SWING ARM, RH 5ASV-050310-6002 | Skladem | |||
| 17 | FRONT LOWER SWING ARM, RH 5ASV-050410-6002 | Skladem | |||
| 18 | GUARD, FRONT RH SWING ARM 5ASV-050401-6000 | Skladem | 108,75 Kč | ||
| 19 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 20 | CIRCLIPS FOR SHAFT 34 30801-03405 | Skladem | 15,54 Kč | ||
| 21 | BALL PIN COMP. 9060-050900-10000 | Skladem | 1 009,87 Kč | ||
| 22 | FRONT LH UPPER SWING ARM ASSY 5ASV-050110-6003 | Skladem | |||
| 22 | FRONT UPPER SWING ARM, LH 5ASV-050110-6002 | Skladem | |||
| 23 | LH STEERING KNUCKLE 5ASV-050701-6000 | Skladem | 2 936,38 Kč | ||
| 24 | FRONT LOWER SWING ARM, LH 5ASV-050210-6002 | Skladem | |||
