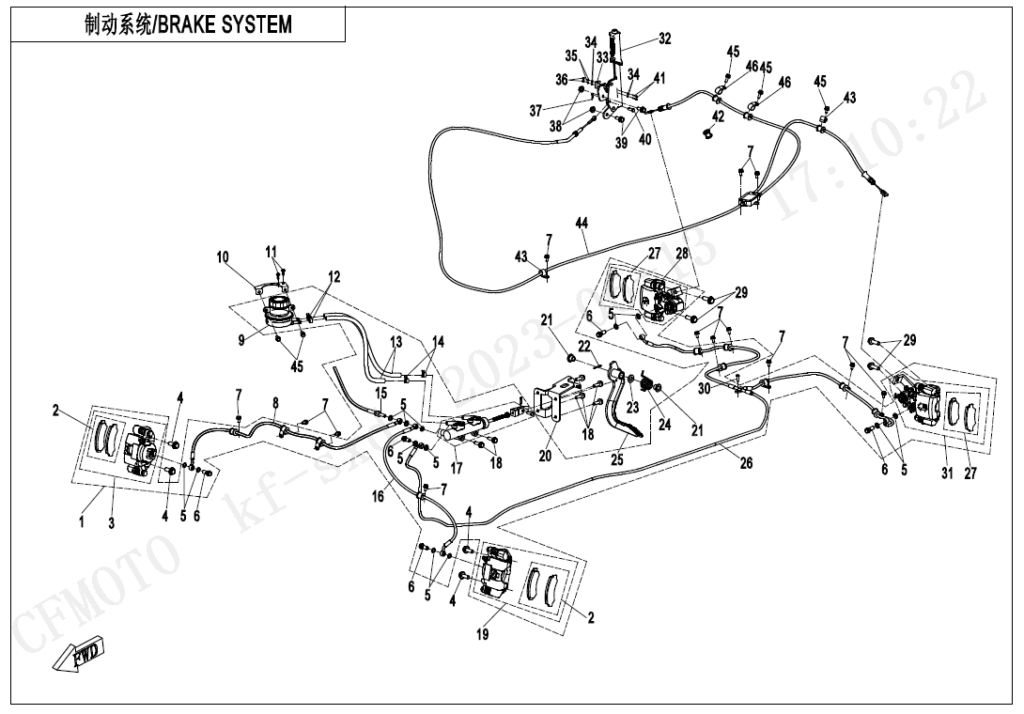

F08-V2 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | HYDRAULIC BRAKE 5ASV-081000-6002 | Skladem | |||
| 02 | FRONT BRAKE PAD ASSY 5HYV-0811A0 | Skladem | 1 336,13 Kč | ||
| 03 | FRONT RH BRAKE CALIPER ASSY 9AWV-081200-4000 | Skladem | 4 101,61 Kč | ||
| 04 | Šroub 30006-102025810 | Skladem | 31,07 Kč | ||
| 05 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 06 | BOLT, FUEL PIPE 6KM#-080103-8101 | Skladem | 101,56 Kč | ||
| 07 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 08 | RH FRONT BRAKE FLUID HOSE 5ASV-081020-6000 | Skladem | 1 289,52 Kč | ||
| 09 | RESERVOIR ASSY 5BW1-080150-20000 | Skladem | 1 149,69 Kč | ||
| 10 | BRACKET, OIL CUP 5UWB-030110 | Skladem | 108,75 Kč | ||
| 11 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 12 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 13 | RESERVOIR HOSE 5ASV-081001-6000 | Skladem | 574,85 Kč | ||
| 14 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 15 | HYDRAULIC INDUCTION SWITCH 5HY0-080010-20000 | Skladem | 574,85 Kč | ||
| 16 | LH FRONT BRAKE FLUID HOSE 5ASV-081010-6000 | Skladem | 901,11 Kč | ||
| 17 | MASTER PUMP ASSY 5BWB-081100-00002 | Skladem | 2 920,84 Kč | ||
| 18 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 19 | FRONT LH BRAKE CALIPER ASSY 9AWV-081100-4000 | Skladem | 4 101,61 Kč | ||
| 20 | FIXED BRACKET, FOOT PEDAL 5BY0-080010 | Skladem | 636,99 Kč | ||
| 21 | Pouzdro 9060-105002 | Skladem | 46,61 Kč | ||
| 22 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 23 | Podložka 30306-120112 | Skladem | 15,54 Kč | ||
| 24 | RETURN SPRING 9060-080003 | Skladem | 77,68 Kč | ||
| 25 | BRAKE PEDAL ASSY 5ASV-082000-6001 | Skladem | 1 165,23 Kč | ||
| 26 | REAR BRAKE FLUID HOSE 5ASV-081030-6001 | Skladem | 4 629,85 Kč | ||
| 27 | REAR BRAKE PAD ASSY 5ASV-0813A0 | Skladem | 1 227,38 Kč | ||
| 28 | REAR LH BRAKE CALIPER ASSY 5ASV-081050-7800 | Skladem | |||
| 29 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 30 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 31 | REAR RH BRAKE CALIPER ASSY 5ASV-081060-7800 | Skladem | |||
| 32 | HAND BRAKE 5HY0-083100 | Skladem | 1 662,39 Kč | ||
| 32 | HAND BRAKE ASSY 5HYV-083100-1000 | Skladem | 1 709,00 Kč | ||
| 33 | MICRO SWITCH 7000-082210-20000 | Skladem | 507,78 Kč | ||
| 34 | Podložka 30306-020800 | Skladem | 15,54 Kč | ||
| 35 | Podložka 30303-020900 | Skladem | 15,54 Kč | ||
| 36 | Matice 30200-020500 | Skladem | 15,54 Kč | ||
| 37 | COTTER PIN 30903-0162520 | Skladem | 15,54 Kč | ||
| 38 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 39 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 40 | PIN 30904-0602010 | Skladem | 43,52 Kč | ||
| 41 | Šroub (vrut) 30105-020016700 | Skladem | 15,54 Kč | ||
| 42 | RUBBER, FUEL PIPE 9030-180008 | Skladem | 15,54 Kč | ||
| 43 | CIRCLIP 9010-080104 | Skladem | 46,61 Kč | ||
| 44 | PARKING CABLE 5ASV-083100-6004 | Skladem | |||
| 45 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 46 | FIXING CLIP 9AWA-080004 | Skladem | 62,15 Kč | ||
