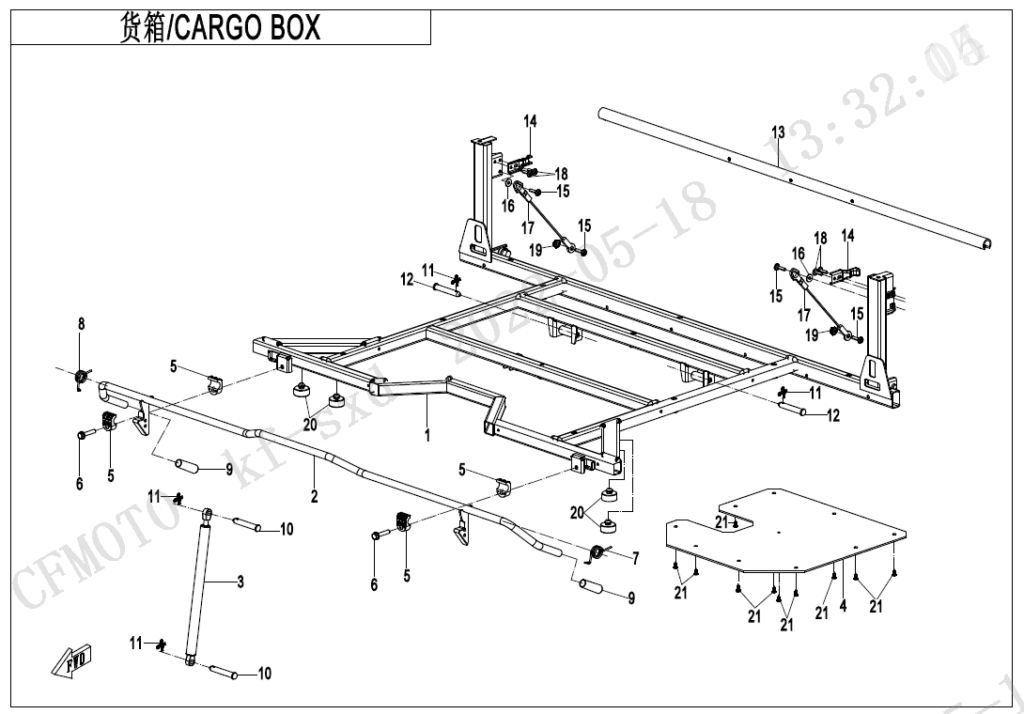

F22-2 CARGO BOX
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BASE FRAME ASSY 5ASV-221000-5000 | Skladem | |||
| 01 | BASE FRAME ASSY 5ASV-221000-5001 | Skladem | |||
| 01 | BASE FRAME ASSY 5ASV-221000-5002 | Skladem | 6 680,65 Kč | ||
| 02 | ROTATION SHAFT ASSY 5ASV-222000-5000 | Skladem | 792,36 Kč | ||
| 03 | GAS SPRING ASSY 5ASV-222080-6000 | Skladem | 605,92 Kč | ||
| 04 | HEAT INSULATOR, CARGO BOX 5ASV-223012-6000 | Není skladem | |||
| 05 | COLLAR, ROTATE SHAFT 7030-221123 | Skladem | 46,61 Kč | ||
| 06 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 07 | LH TORSIONAL SPRING 5ASV-220001-6001 | Skladem | 62,15 Kč | ||
| 08 | RH TORSIONAL SPRING 5ASV-220002-6001 | Skladem | 62,15 Kč | ||
| 09 | SLEEVE, ROTATE 7030-220104 | Skladem | 46,61 Kč | ||
| 10 | PIN SHAFT,GAS SPRING 7030-222251 | Skladem | 62,15 Kč | ||
| 11 | PIN SHAFT 5HY#-220008-1000 | Skladem | 15,54 Kč | ||
| 12 | PIN SAHFT, ROTATION COLOR ZINC 9030-220011-00001 | Skladem | 62,15 Kč | ||
| 13 | STEERING SHAFT, CARGO BOX DOOR 5ASV-220003-6000 | Skladem | 1 242,91 Kč | ||
| 14 | BRACKET, CARGO BOX DOOR HANDLE 5ASV-220004-6000 | Skladem | 170,90 Kč | ||
| 15 | CABLE BOLT, TAIL BOX 7030-010508 | Skladem | 31,07 Kč | ||
| 16 | Podložka 30305-060112 | Skladem | 15,54 Kč | ||
| 17 | FIXING CABLE, TAIL BOX 7030-010500-10000 | Skladem | 348,19 Kč | ||
| 18 | INNER HEX SCREW M6x12 A000-040702 | Skladem | 15,54 Kč | ||
| 19 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 20 | RUBBER MAT 5HY0-220004 | Skladem | 46,61 Kč | ||
| 21 | SELF-TAPPING SCREW 30110-480130010 | Skladem | 15,54 Kč | ||
