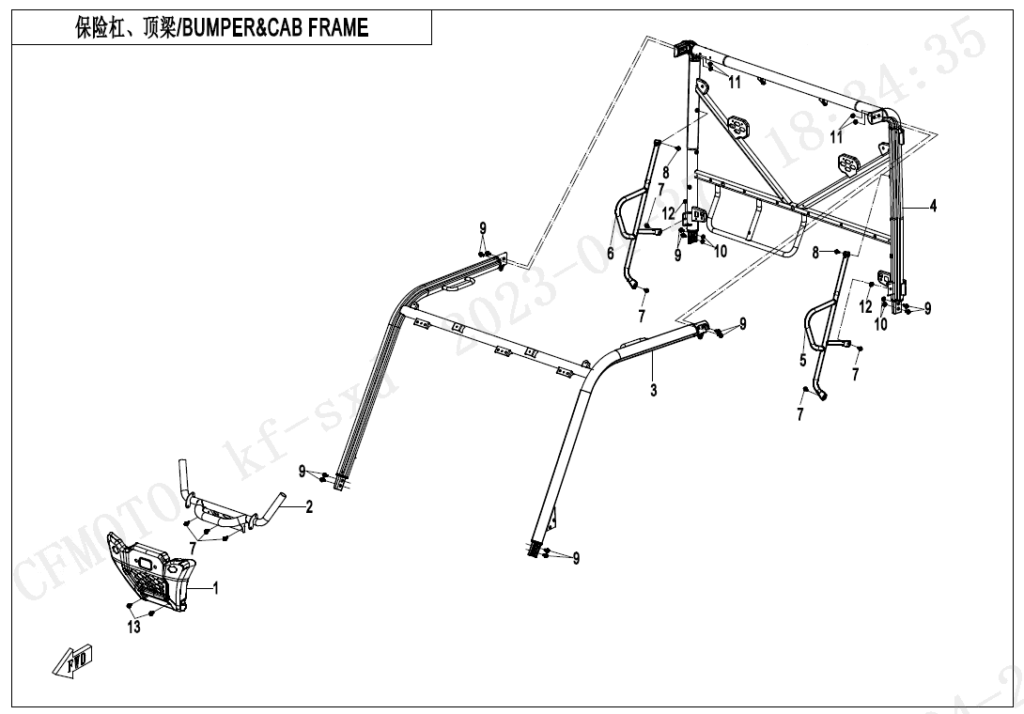

F23 BUMPER @^ CAB FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BUMPER RAIL 5ASV-230301-6001-0BP00 | Skladem | |||
| 01 | BUMPER RAIL 5ASV-230301-6002-0BP00 | Skladem | 2 097,41 Kč | ||
| 02 | BUMPER ASSY 5ASV-230310-6000-0BP00 | Skladem | 1 864,37 Kč | ||
| 03 | FRONT CAB ASSY 5ASV-230100-5100-0BP00 | Skladem | 12 879,68 Kč | ||
| 03 | FRONT CAB ASSY 5ASV-230100-5101-0BP00 | Skladem | |||
| 04 | REAR CAB ASSY 5ASV-230200-5000-0BP00 | Skladem | |||
| 04 | REAR CAB ASSY 5ASV-230200-5001-0BP00 | Skladem | |||
| 04 | REAR CAB ASSY 5ASV-230200-6T00-0BP00 | Skladem | 15 225,67 Kč | ||
| 05 | CAB LH SHORT REINFORCEMENT PIPE ASSY 5ASV-230350-5000-0BP00 | Skladem | |||
| 06 | CAB RH SHORT REINFORCEMENT PIPE ASSY 5ASV-230360-5000-0BP00 | Skladem | |||
| 07 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 08 | SCREW M8x20 30102-080020810 | Skladem | 15,54 Kč | ||
| 09 | BOLT M10x1.25×35 30006-102035110 | Skladem | |||
| 10 | Matice 30225-102810 | Skladem | 31,07 Kč | ||
| 11 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 12 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 13 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
