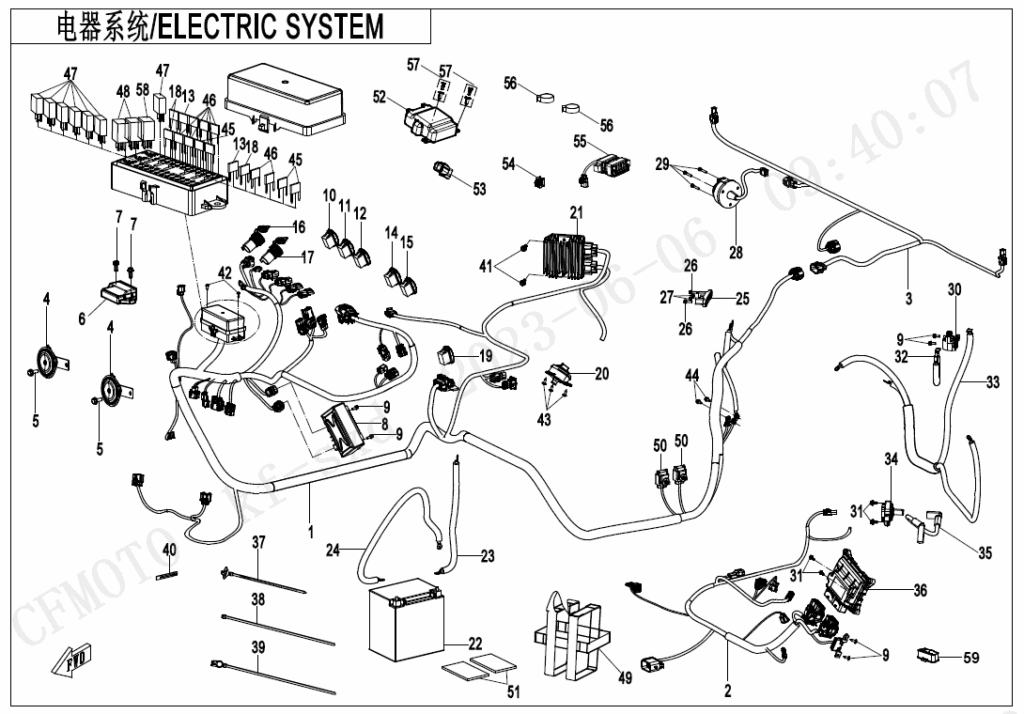

F15-1-B-V4 ELECTRIC SYSTEM(LOF)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 5ASV-150100-7D00 | Skladem | |||
| 02 | EFI AUXILIARY CABLE 5ASV-150200-7A02 | Skladem | |||
| 03 | TAIL LIGHT AUXILIARY CABLE 5ASV-150300-7B00 | Skladem | |||
| 04 | ELECTRIC HORN 6060-150600 | Skladem | 275,65 Kč | ||
| 05 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 06 | Přerušovač blinkrů 5ASV-161000-7801 | Skladem | 699,14 Kč | ||
| 07 | SELF-TAPPING SCREW 30110-420160070 | Skladem | 15,54 Kč | ||
| 08 | EPS CONTROLLER 5ASV-150810-6A00 | Není skladem | |||
| 09 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 10 | HAZARD SWITCH 5ASV-169070-6001 | Není skladem | 512,70 Kč | ||
| 11 | TURN SWITCH 5ASV-169060-6001 | Není skladem | 512,70 Kč | ||
| 12 | MODE SWITCH 5ASV-169090-6001 | Skladem | 481,63 Kč | ||
| 13 | FUSE 5A 8010-151301 | Skladem | 15,54 Kč | ||
| 14 | HORN SWITCH 5ASV-169040-6001 | Skladem | 512,70 Kč | ||
| 15 | DIMMER SWITCH 5ASV-169030-6001 | Skladem | 512,70 Kč | ||
| 16 | USB OUTLET SOCKET ASSY 9DSV-150600-6R01 | Skladem | 1 072,01 Kč | ||
| 17 | POWER OUTLET SOCKET ASSY 9DSV-150500-6R01 | Skladem | 543,77 Kč | ||
| 18 | FUSE 2A CFCV-150010-4500 | Skladem | 93,22 Kč | ||
| 19 | ILLUMINATION SWITCH 5ASV-169020-6001 | Skladem | 512,70 Kč | ||
| 20 | 2/4 WD SWITCH 5ASV-169080-6R00 | Skladem | |||
| 20 | 2WD/4WD SWITCH ASSY 5ASV-169080-6R01 | Skladem | |||
| 21 | REGULATOR 9DSV-151000-4000-10 | Skladem | |||
| 22 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 23 | BATTERY POSITIVE WIRE 5ASV-150210-5000 | Skladem | |||
| 24 | NEGATIVE WIRE, BATTERY 5ASV-150240-6001 | Není skladem | |||
| 25 | TERMINAL, CABLE 5SY0-151610-6000 | Skladem | 233,05 Kč | ||
| 26 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 27 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 28 | POWER SOCKET，TRAILER 9010-151010-1000 | Skladem | 435,02 Kč | ||
| 29 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 30 | STARTER RELAY 5BWV-150510-5300 | Skladem | 823,43 Kč | ||
| 31 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 32 | STARTER RELAY CABLE 5ASV-150230-5000 | Skladem | |||
| 33 | STARTER MOTOR CABLE ASSY 5ASV-150220-5000 | Skladem | |||
| 34 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 35 | HIGH-TENSION CABLE 0GRB-178000-10000 | Skladem | 372,87 Kč | ||
| 36 | ECM ASSY 5ASV-001000-6R00 | Skladem | |||
| 37 | TIE BAND 5ASV-150009-6000-M1 | Skladem | 15,54 Kč | ||
| 38 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 39 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 40 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 41 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 42 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 43 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 44 | SELF-TAPPING SCREW ST4.8×13 30118-480130010 | Skladem | 15,54 Kč | ||
| 45 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 46 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 47 | AUXILIARY RELAY 5BY4-150330 | Skladem | 203,11 Kč | ||
| 48 | AUXILIARY RELAY CFCV-150521-2000-M1 | Skladem | |||
| 49 | BELT,BETTERY 9060-152100 | Skladem | 124,29 Kč | ||
| 50 | 40A FUSE 5BY0-150302 | Skladem | 31,07 Kč | ||
| 51 | FOAM (FR &RR), BATTERY 5270-150002 | Skladem | 15,54 Kč | ||
| 52 | BRACKET, T-BOX 5ASV-043040-5000 | Skladem | |||
| 53 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
| 54 | CLIP CFCV-CBC005-2000-M1 | Skladem | 15,54 Kč | ||
| 55 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 56 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 57 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 58 | AUXILIARY RELAY CFCV-150523-2000-M1 | Skladem | |||
| 59 | DIAGNOSIS CONNECTOR COVER CFCV-11H016-2000-M1 | Skladem | 15,54 Kč | ||
