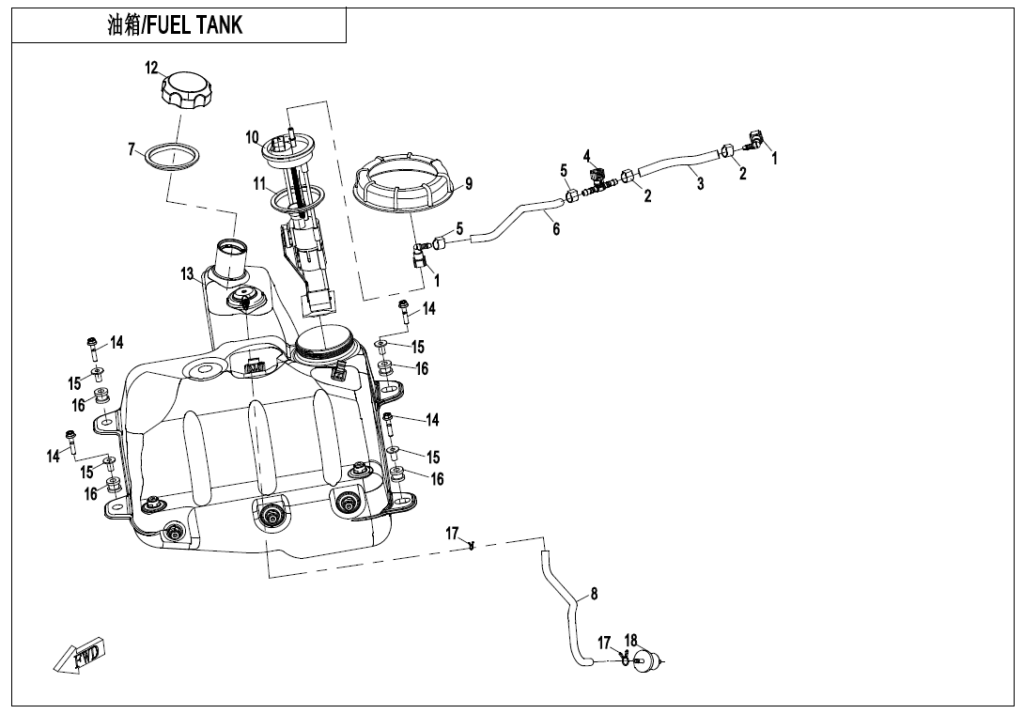

F12-B FUEL TANK(USA)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | QUICK JOINT 6090-120210 | Skladem | 217,62 Kč | ||
| 02 | CLAMP Dia 14.5A 6070-120400 | Skladem | 43,52 Kč | ||
| 03 | HIGH PRESSURE FUEL HOSE 5BY2-120010 | Skladem | 233,05 Kč | ||
| 04 | QUICK T-JOINT 9AWA-120010 | Skladem | 201,97 Kč | ||
| 05 | CLAMP φ16.6 7020-120006 | Skladem | 46,61 Kč | ||
| 06 | HIGH-PRESSURE FUEL HOSE 1 7020-120210-2000 | Skladem | 807,89 Kč | ||
| 07 | RUBBER, FUEL TANK PORT 9AWA-120002 | Skladem | 101,56 Kč | ||
| 08 | FUEL VAPERIZATION PIPE 2 6KM0-360002 | Skladem | 232,13 Kč | ||
| 09 | CAP, FUEL PUMP 7020-120101 | Skladem | 188,60 Kč | ||
| 10 | FUEL PUMP 7020-150900 | Skladem | 6 634,04 Kč | ||
| 11 | SEAL RING, FUEL PUMP 7020-120102 | Skladem | 116,06 Kč | ||
| 12 | CAP, FUEL TANK 9CR6-120300 | Skladem | 310,73 Kč | ||
| 13 | FUEL TANK ASSY. (PLASTIC) 9AWA-120110 | Skladem | 6 152,41 Kč | ||
| 14 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 15 | CUSHION LINER, FUEL TANK 7020-120160 | Skladem | 31,07 Kč | ||
| 16 | DAMPER，FUEL TANK 7020-120103 | Skladem | 15,54 Kč | ||
| 17 | CLAMP A10 30601-110010 | Skladem | 15,54 Kč | ||
| 18 | TWO-WAY VALVE 9GQ0-360100 | Skladem | 217,51 Kč | ||
