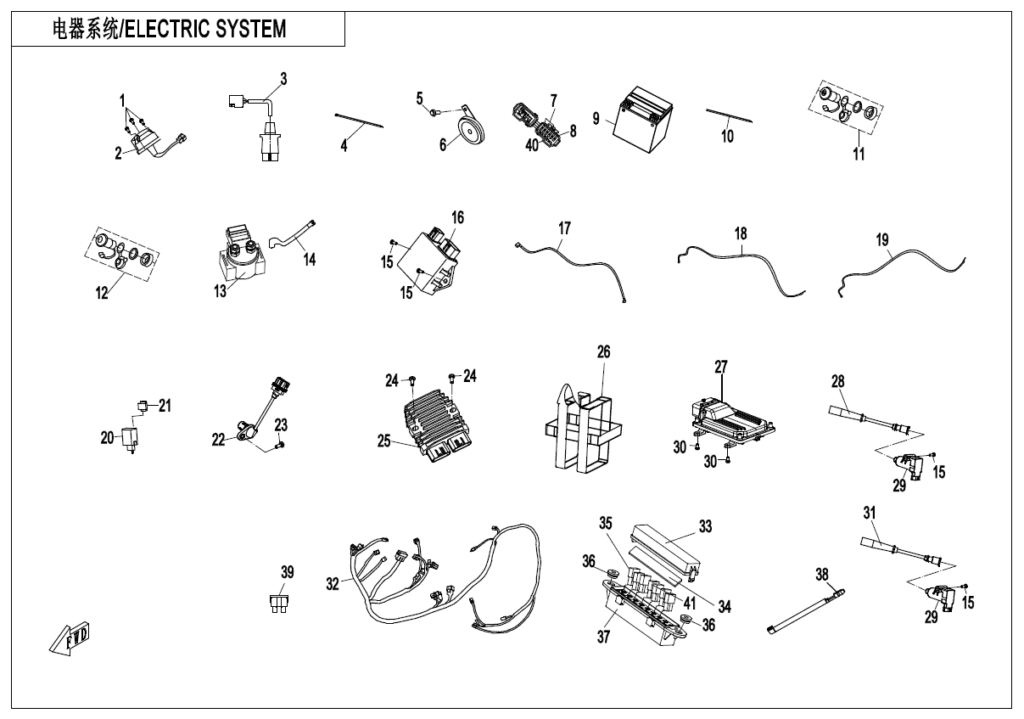

F15-1-V4 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 02 | TAILER POWER SOCKET 7020-150800-20000 | Skladem | |||
| 03 | POWER SOCKET，TRAILER 9010-151010-1000 | Skladem | 435,02 Kč | ||
| 04 | TIE BAND 9010-150004 | Skladem | 15,54 Kč | ||
| 05 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 06 | ELECTRIC HORN 5020-150700 | Skladem | 290,16 Kč | ||
| 07 | FUSE 806A-151303 | Skladem | 15,54 Kč | ||
| 08 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 09 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 10 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 11 | USB OUTLET SOCKET 9GQ0-150600-20000 | Skladem | |||
| 12 | POWER OUTLET SOCKET 9GQ0-150500-20000 | Skladem | |||
| 13 | STARTER RELAY 9CR6-150310 | Skladem | 450,56 Kč | ||
| 14 | CABLE,STARTING MOTOR 9AWA-150220 | Skladem | 730,21 Kč | ||
| 15 | BOLT M6x35 30006-060035810 | Skladem | 15,54 Kč | ||
| 16 | DRL CONTROLLER 9AWA-150880-20000 | Skladem | 1 413,81 Kč | ||
| 17 | POSITIVE WIRE,BATTERY 9AWA-150210-20000 | Skladem | |||
| 18 | NEGATIVE WIRE,BATTERY 9AWA-150230 | Skladem | 341,80 Kč | ||
| 19 | NEGATIVE CABLE, STARTER MOTOR 9AWA-150240-10000 | Skladem | |||
| 20 | Přerušovač blinkrů 9AWA-150340-10000 | Skladem | 372,87 Kč | ||
| 21 | CUSHION WASHER, FLASHER 8010-150002 | Skladem | 15,54 Kč | ||
| 22 | SPEED SENSOR 7020-150400 | Skladem | 652,53 Kč | ||
| 23 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 24 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 25 | REGULATOR 0800-177000-30000 | Skladem | 4 303,58 Kč | ||
| 26 | BELT,BETTERY 9060-152100 | Skladem | 124,29 Kč | ||
| 27 | Řídící jednotka ECU X1000 T3 9AYV-001000-3010 | Skladem | 13 066,11 Kč | ||
| 28 | HIGH VOLTAGE CABLE ASSY 0JYA-179000-10000 | Skladem | 372,87 Kč | ||
| 29 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 30 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 31 | HIGH VOLTAGE CABLE ASSY 0JY0-179100-10000 | Skladem | 403,95 Kč | ||
| 32 | MAIN CABLE 9AY0-150100-H0001 | Skladem | |||
| 32 | MAIN CABLE 9AY0-150100-G0001 | Skladem | |||
| 33 | COVER,RELAY BOX 7020-040412-10000 | Skladem | 145,08 Kč | ||
| 34 | RUBBER WASHER,RELAY BOX COVER 7020-040414 | Skladem | |||
| 35 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 36 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 37 | RELAY BOX 7020-040411 | Skladem | 139,83 Kč | ||
| 38 | LINK CABLE, OIL PRESSURE SWITCH 0JWA-012202-10000 | Skladem | |||
| 39 | FUSE 40A CFC#-150005-4502 | Skladem | |||
| 40 | 25A FUSE 806A-151307 | Skladem | 15,54 Kč | ||
| 41 | AUXILIARY RELAY CFCV-150524-2000-M1 | Skladem | 124,29 Kč | ||
