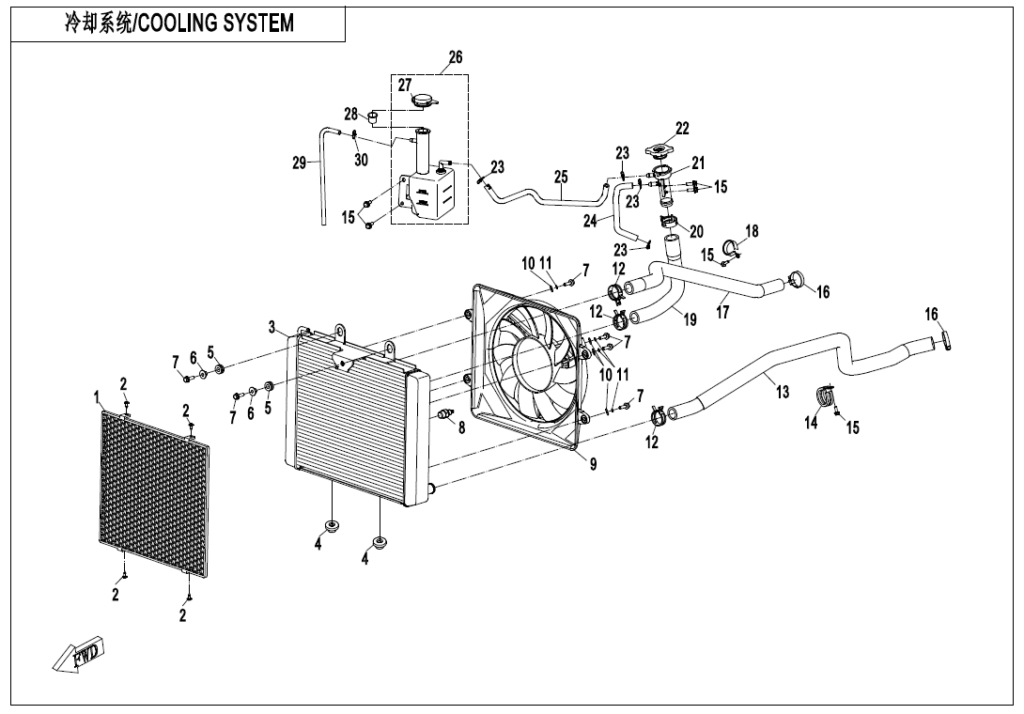

F18-V3 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RADITOR GUARD 9AWA-181002 | Skladem | 357,34 Kč | ||
| 02 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 03 | RADIATOR 9AY0-181100 | Skladem | 7 845,88 Kč | ||
| 03 | RADIATOR ASSY 9AY0-181100-00001 | Skladem | 7 488,54 Kč | ||
| 04 | SLEEVE 9AWA-181001 | Skladem | |||
| 05 | RUBBER CUSHION ，RADIATOR 9060-180027 | Skladem | |||
| 06 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 07 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 08 | OVERFLOW HOSE, RESERVOIR 5HY0-180008 | Skladem | 46,61 Kč | ||
| 09 | FAN MOTOR ASSY 9AWA-181200-40001 | Skladem | 4 458,95 Kč | ||
| 10 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 11 | Podložka 30303-060920 | Skladem | |||
| 12 | CLAMP B30 A000-180006 | Skladem | 87,05 Kč | ||
| 13 | WATER OUTLET HOSE, ENGINE 9AWA-180002 | Skladem | 885,57 Kč | ||
| 14 | WATER HOSE CLIP 1 9AWA-180030 | Skladem | 159,59 Kč | ||
| 15 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 16 | CLAMP ，WATER HOSE 9010-180007 | Skladem | 62,15 Kč | ||
| 17 | WATER INLET HOSE, ENGINE 9AWA-180001 | Skladem | 605,92 Kč | ||
| 18 | CLIP,WATER HOSE 9AWA-180020 | Skladem | 130,68 Kč | ||
| 19 | JOINT PIPE, WATER FILLER 9AWA-180005 | Skladem | 319,17 Kč | ||
| 20 | STEEL BAND CLAMP 34 7000-180007-00001 | Skladem | 101,56 Kč | ||
| 21 | WATER FILLING PORT 9060-180025-1000 | Skladem | 217,51 Kč | ||
| 22 | CAP，WATER FILLER 8010-180024 | Skladem | 232,13 Kč | ||
| 23 | CLAMP A13 30601-113010 | Skladem | 15,54 Kč | ||
| 24 | OVERFLOW HOSE, RADIATOR 9AWA-180003 | Skladem | 77,68 Kč | ||
| 25 | WATER HOSE, RESERVOIR TANK 9AWV-180004-2B00 | Skladem | |||
| 26 | RESERVOIR WATER TANK 9AWA-180010 | Skladem | 326,26 Kč | ||
| 27 | CAP，RESERVOIR TANK 8010-180023 | Skladem | 46,61 Kč | ||
| 28 | GASKET, RESERVOIR 9060-180903 | Skladem | 29,02 Kč | ||
| 29 | CLAMP A11 30601-111010 | Skladem | 15,54 Kč | ||
