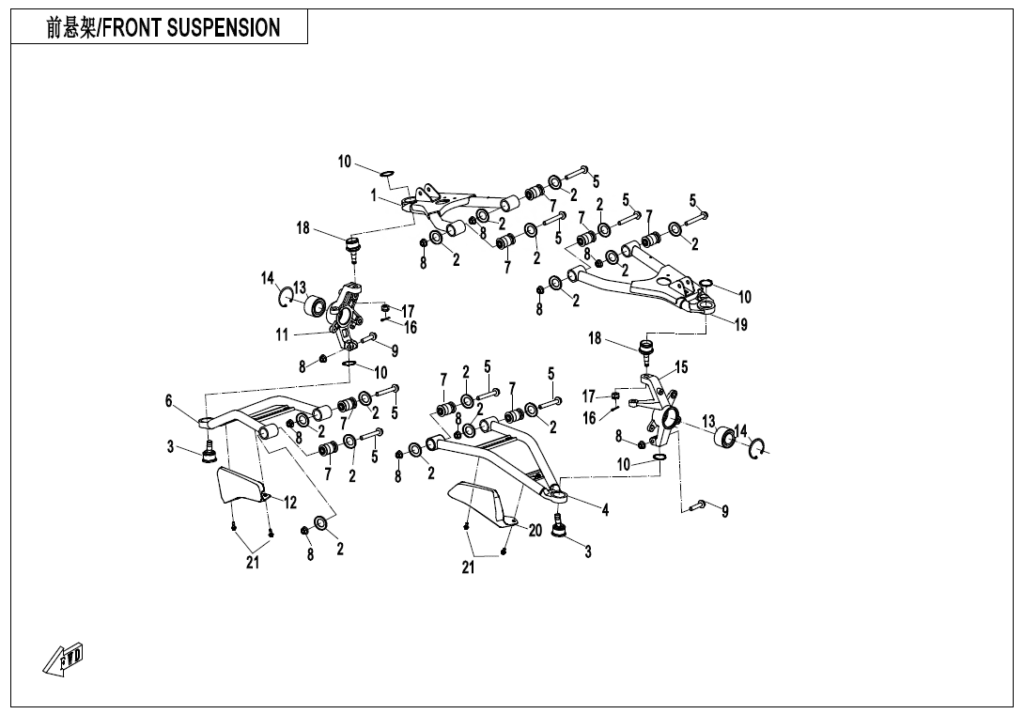

F05-1 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT RH UPPER SWING ARM ASSY 9AWV-050210-2E01-0BP00 | Skladem | 2 408,14 Kč | ||
| 02 | CAP, CUSHION SLEEVE 9DSV-050900-6K00 | Není skladem | 31,07 Kč | ||
| 03 | LOWER BALL PIN ASSY. 9010-050800-20000 | Skladem | 901,11 Kč | ||
| 04 | FRONT LOWER LH SWING ARM ASSY 9AWV-050310-2E01-0BP00 | Skladem | |||
| 05 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 06 | FRONT RH LOWER SWING ARM ASSY 9AWV-050410-2E01-0BP00 | Skladem | |||
| 07 | CUSHION SLEEVE 9010-050500 | Skladem | 116,06 Kč | ||
| 08 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 09 | BOLT M10x1.25×45 30006-102045810 | Skladem | 46,61 Kč | ||
| 09 | Šroub 30006-102040810 | Skladem | 31,07 Kč | ||
| 10 | CIRCLIPS FOR SHAFT 34 30801-03405 | Skladem | 15,54 Kč | ||
| 11 | STEERING KNUCKLE,RH 9AWA-050801 | Skladem | 2 361,53 Kč | ||
| 12 | FRONT SUSPENSION PLATE, RH 9AWA-044042 | Skladem | 116,06 Kč | ||
| 13 | BEARING, HUB 9GQ0-050710 | Skladem | 683,60 Kč | ||
| 14 | CIRCLIP FOR HOLE 55 30800-05505 | Skladem | 31,07 Kč | ||
| 15 | STEERING KNUCKLE,LH 9AWA-050701 | Skladem | 2 361,53 Kč | ||
| 16 | COTTER PIN 30903-0201610 | Skladem | 15,54 Kč | ||
| 17 | 1-TYPE NUT 9010-100002 | Skladem | 46,61 Kč | ||
| 18 | TOP BALL PIN 9010-050700-1000 | Skladem | 901,11 Kč | ||
| 19 | FRONT LH UPPER SWING ARM ASSY 9AWV-050110-2E01-0BP00 | Skladem | 2 408,14 Kč | ||
| 20 | PROTECTION PLATE, FRONT SUSPENSION(LH) 9AWA-044041 | Skladem | 116,06 Kč | ||
| 21 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
