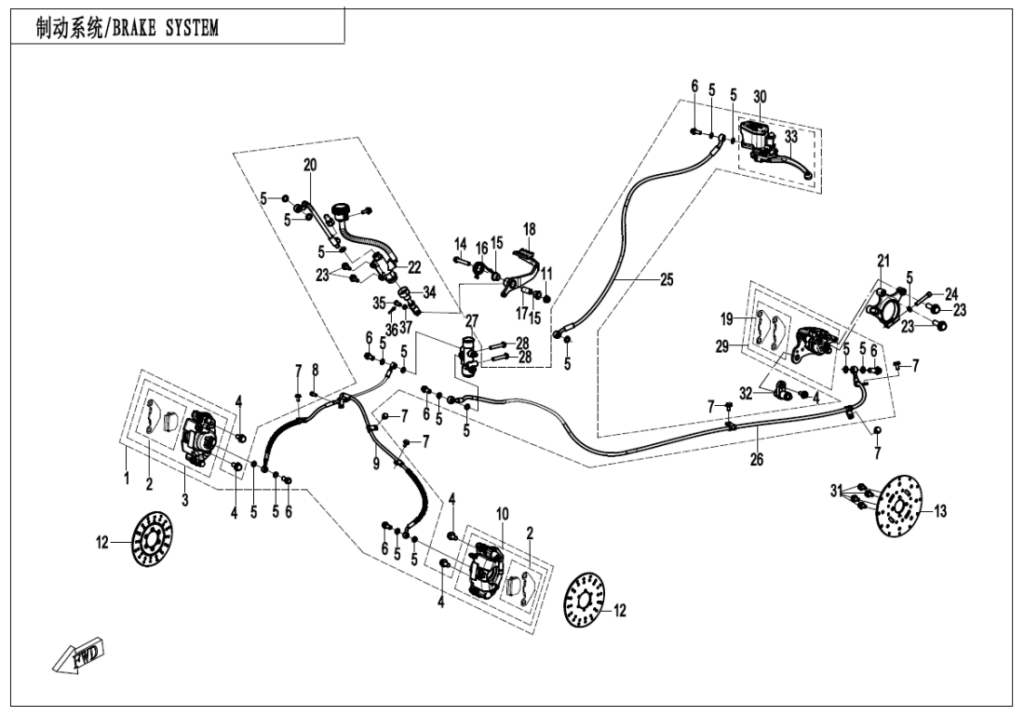

F08 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Brzdový systém 9RHV-081000-1000-M1 | Skladem | |||
| 2 | FRONT BRAKE PAD ASSY 9RHV-0813A0 | Skladem | 246,84 Kč | ||
| 3 | RH LOWER PUMP ASSY 9RHV-081500-1000-M1 | Skladem | 1 165,23 Kč | ||
| 4 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 5 | SULFIDE WASHER 9RHV-081000-1000-21 | Skladem | 15,54 Kč | ||
| 6 | JOINT BOLT 9RHV-081000-1000-20 | Není skladem | |||
| 7 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 8 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 9 | BRAKE HOSE ASSY 4 9RHV-081040-1000-M1 | Skladem | 1 149,69 Kč | ||
| 10 | LH LOWER PUMP ASSY 9RHV-081400-1000-M1 | Skladem | 1 165,23 Kč | ||
| 11 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 12 | FRONT BRAKE DISC 9RHV-081001-1000 | Skladem | 566,28 Kč | ||
| 13 | REAR BRAKE DISC 9RHV-081002-1000 | Skladem | 543,77 Kč | ||
| 15 | Pouzdro HH4V-081303-1000 | Skladem | |||
| 16 | FOOT BRAKE LEVER SPRING 9RHV-080202-1000 | Skladem | |||
| 17 | Pouzdro 9RHV-080201-1000 | Skladem | |||
| 18 | BRAKE PEDAL 9RHV-080200-1000 | Skladem | 357,34 Kč | ||
| 19 | REAR BRAKE PAD ASSY 9RHV-0815A0 | Skladem | 310,73 Kč | ||
| 20 | BRAKE HOSE ASSY 2 9RHV-081020-1000-M1 | Skladem | 388,41 Kč | ||
| 21 | REAR BRAKE CALIPER BRACKET 9RHV-080003-1000 | Skladem | 1 351,67 Kč | ||
| 22 | FOOT BRAKE UPPER PUMP ASSY 9RHV-081600-1000-M1 | Skladem | 1 258,45 Kč | ||
| 23 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 24 | INNER HEX SCREW M8x50 30102-080050870 | Skladem | |||
| 25 | BRAKE HOSE ASSY 1 9RHV-081010-1000-M1 | Skladem | 388,41 Kč | ||
| 26 | BRAKE HOSE ASSY 3 9RHV-081030-1000-M1 | Skladem | 699,14 Kč | ||
| 27 | PROPORTIONAL VALVE ASSY 9RHV-081100-1000-M1 | Skladem | 1 040,94 Kč | ||
| 28 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 29 | REAR LOWER PUMP ASSY 9RHV-081200-1000-M1 | Skladem | 1 460,42 Kč | ||
| 30 | REAR HAND BRAKE UPPER PUMP ASSY 9RHV-081300-1000-M1 | Skladem | 1 258,45 Kč | ||
| 31 | Šroub 30006-080012810 | Skladem | 15,54 Kč | ||
| 32 | SPEED SENSOR 9RHV-081700-1000 | Skladem | 807,89 Kč | ||
| 33 | LEVER 9RHV-081300-1000-27 | Není skladem | |||
| 34 | CLUTCH ROD 9RHV-081000-1000-27 | Skladem | |||
| 35 | PIN SHAFT 9RHV-081000-1000-24 | Skladem | |||
| 36 | COTTER PIN 9RHV-081000-1000-26 | Skladem | |||
| 37 | PLAIN WASHER 9RHV-081000-1000-25 | Skladem | |||
