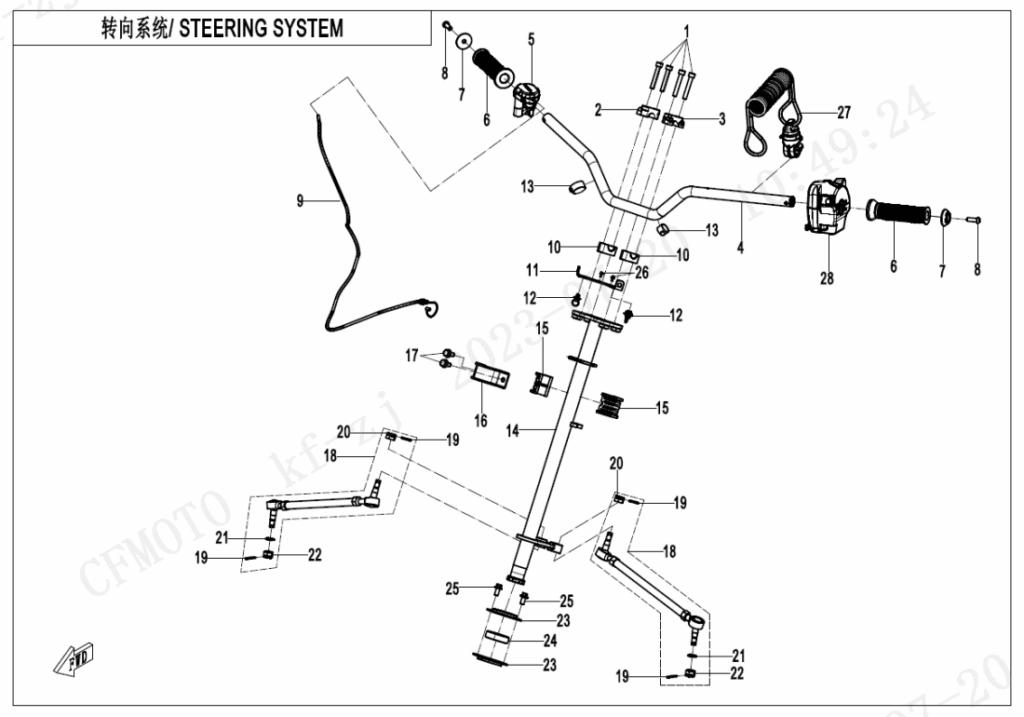

F10-V1 STEERING SYSTERM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | INNER HEX SCREW M8x50 30102-080050810 | Skladem | 15,54 Kč | ||
| 2 | HANDLEBAR BLOCK 3 9RHV-100003-1001 | Skladem | |||
| 2 | HANDLEBAR BLOCK III 9RHV-100003-1000 | Skladem | 145,20 Kč | ||
| 3 | HANDLEBAR BLOCK 2 9RHV-100002-1001 | Skladem | 174,24 Kč | ||
| 3 | HANDLEBAR BLOCK II 9RHV-100002-1000 | Není skladem | 145,20 Kč | ||
| 4 | HANDLEBAR 9RHV-101100-1000 | Skladem | 807,89 Kč | ||
| 5 | THROTTLE LEVER 9RHV-080110-1001-0BP00 | Není skladem | |||
| 6 | RUBBER SLEEVE, HAND GRIP 9DQV-100005-3000 | Skladem | 170,90 Kč | ||
| 7 | END CAP, HANDLEBAR 9DQV-100003-3000 | Skladem | 15,54 Kč | ||
| 8 | SCREW M8x20 30121-080020870 | Skladem | 15,54 Kč | ||
| 9 | THROTTLE CABLE 9RHV-105000-3000 | Není skladem | 174,24 Kč | ||
| 10 | BLOCK I, HANDLEBAR 9RHV-100001-1000 | Není skladem | 130,68 Kč | ||
| 10 | HANDLEBAR BLOCK 1 9RHV-100001-1001 | Skladem | 174,24 Kč | ||
| 11 | BRACKET, DASHBOARD GUARD 9RHV-030051-1000 | Skladem | 159,72 Kč | ||
| 12 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 13 | TIE BAND, CLUTCH 6KJ0-100002 | Skladem | 29,02 Kč | ||
| 14 | STEERING SHAFT ASSY 9RHV-102100-1000 | Skladem | 1 258,45 Kč | ||
| 15 | SEAT, SWAY BAR 5BYA-060003 | Skladem | 217,51 Kč | ||
| 16 | CAP, STEERING STEM 9RHV-100510-1000 | Skladem | 93,22 Kč | ||
| 17 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 18 | STEERING ROD 9RHV-100530-1000 | Skladem | 870,04 Kč | ||
| 19 | COTTER PIN 9RHV-100530-1000-23 | Skladem | |||
| 20 | SLOTTED NUT THICK 9RHV-100530-1000-21 | Skladem | 15,54 Kč | ||
| 21 | GASKET 9RHV-100530-1000-22 | Skladem | 15,54 Kč | ||
| 22 | SLOTTED NUT THIN 9RHV-100530-1000-20 | Skladem | 15,54 Kč | ||
| 23 | SEAT, STEERING SHAFT 7020-100301-10000 | Skladem | 62,15 Kč | ||
| 24 | BEARING,OUTER SPHERICAL 7020-100600 | Skladem | 295,19 Kč | ||
| 25 | Šroub 7020-100001 | Skladem | 31,07 Kč | ||
| 26 | Šroub 30006-050012810 | Skladem | 15,54 Kč | ||
| 27 | SAFETY ROPE 9RHV-169010-1000 | Není skladem | 838,97 Kč | ||
| 28 | HANDLEBAR SWITCH, LH 9RHV-166000-3001 | Skladem | 807,89 Kč | ||
| 28 | LH HANDLEBAR SWITCH ASSY 9RHV-166000-1200 | Skladem | |||
