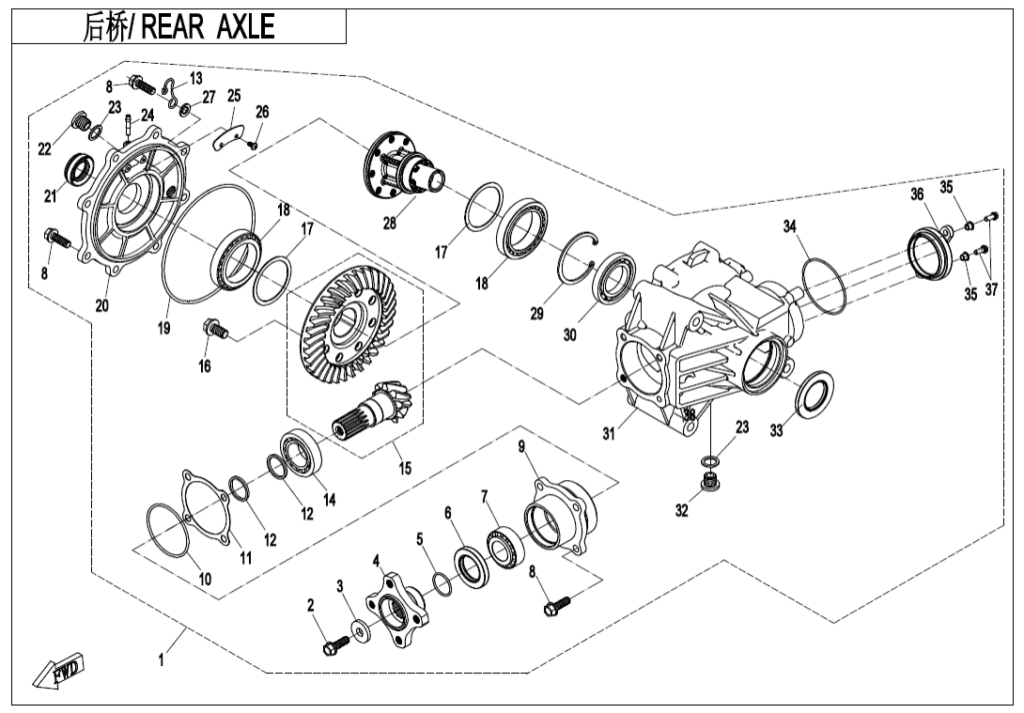

F33-A REAR AXLE(WITHOUT DIFFERENTIAL)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR GEAR CASE ASSY Q820-330000-10000 | Skladem | |||
| 02 | BOLT M10×1.25×20 0GR0-062203 | Skladem | 108,75 Kč | ||
| 03 | WASHER 10×27.5×4 0GR0-062204 | Skladem | 43,52 Kč | ||
| 04 | COUPLER Q850-331002 | Skladem | 699,14 Kč | ||
| 05 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 06 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 07 | Ložisko 30409-02500 | Skladem | 543,77 Kč | ||
| 08 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 09 | BEARING SEAT Q830-311002-00001 | Skladem | 636,99 Kč | ||
| 10 | O-RING 55*2.5 Q830-310006-10000 | Skladem | 77,68 Kč | ||
| 11 | ADJUSTING WASHER Q830-310023-00100 | Skladem | 46,61 Kč | ||
| 11 | ADJUSTING WASHER Q830-310023-00200 | Skladem | 46,61 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00400 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00500 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00600 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00700 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00800 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00900 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01000 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01100 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01200 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01300 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01400 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00100 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00200 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00300 | Skladem | 31,07 Kč | ||
| 13 | CLIP, REAR PARKING CABLE(RH) 9CRB-082001 | Není skladem | |||
| 14 | Ložisko 30409-03000 | Skladem | 481,63 Kč | ||
| 15 | BEVEL GEAR ASSY, REAR GEAR CASE Q820-3300B0 | Skladem | 5 049,33 Kč | ||
| 16 | BOLT M10×1.25×22 0181-313100-0010 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00100 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00200 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00300 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00400 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00500 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00600 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00700 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00800 | Skladem | 46,61 Kč | ||
| 17 | ADJUSTING WASHER 61*50.5 Q820-330003-00900 | Skladem | 46,61 Kč | ||
| 18 | Ložisko 30409-05000 | Skladem | 1 538,10 Kč | ||
| 19 | O-RING φ141×2.4 0180-310005 | Skladem | 43,52 Kč | ||
| 20 | COVER, REAR AXLE CASE Q820-330002 | Skladem | 870,04 Kč | ||
| 21 | OIL SEAL 24×38×8 0180-311001 | Skladem | 62,15 Kč | ||
| 22 | Šroub 0180-021008-00001 | Skladem | 58,03 Kč | ||
| 23 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 24 | JOINT , BREATHER HOSE 0180-311004-0020 | Skladem | 31,07 Kč | ||
| 25 | OIL BAFFLE Q820-330007-10000 | Skladem | 31,07 Kč | ||
| 26 | Šroub (vrut) 30105-040008410 | Skladem | 15,54 Kč | ||
| 27 | Podložka 30306-080112 | Skladem | 15,54 Kč | ||
| 28 | MOUNTING SEAT Q820-330008 | Skladem | 2 454,75 Kč | ||
| 29 | RETAINER 62 30800-06200 | Skladem | 31,07 Kč | ||
| 30 | BEARING 16007 30400-03501 | Skladem | 233,05 Kč | ||
| 31 | REAR AXLE CASE Q820-330001-00001 | Skladem | 3 930,71 Kč | ||
| 32 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
| 33 | OIL SEAL 35×58×5 0120-061000 | Skladem | 108,75 Kč | ||
| 34 | O-RING 67.5*2 Q830-310012-10000 | Skladem | 62,15 Kč | ||
| 35 | SLEEVE 018A-180001 | Není skladem | |||
| 36 | PLUG, MOTOR Q820-330009 | Skladem | 108,75 Kč | ||
| 37 | BOLT M6×18 0010-023008-0010 | Skladem | 15,54 Kč | ||
