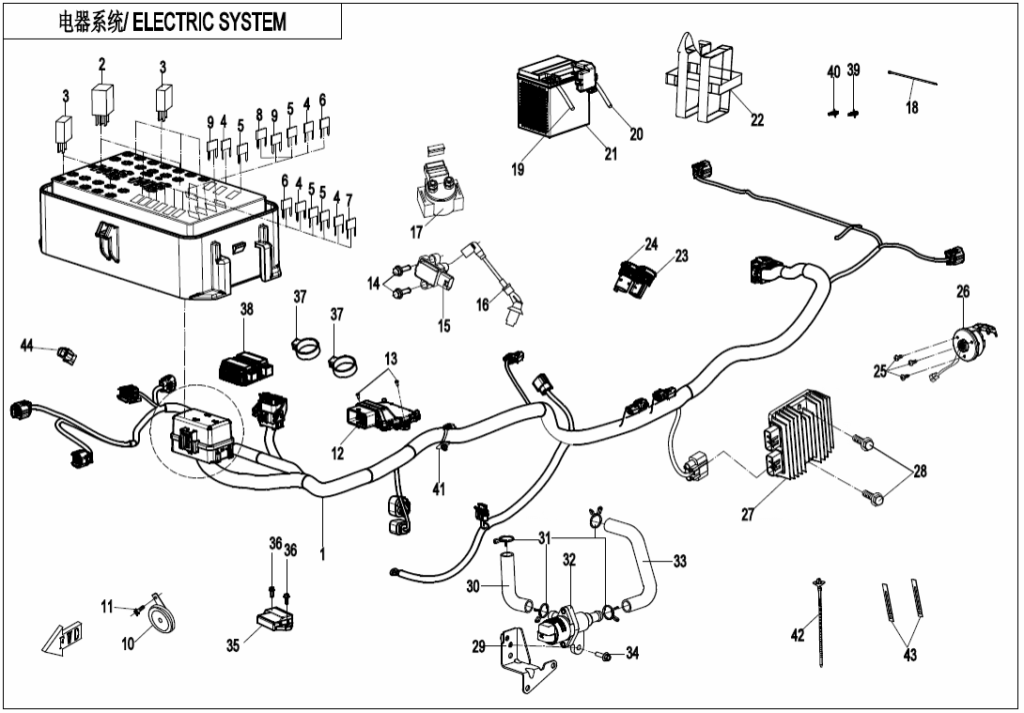

F15-1 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 9DQV-150100-7201 | Skladem | |||
| 01 | MAIN CABLE 9DQV-150100-8302 | Skladem | |||
| 01 | MAIN CABLE 9DQV-150100-8600 | Skladem | |||
| 02 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 03 | AUXILIARY RELAY CFCV-150525-2000-M1 | Skladem | 145,20 Kč | ||
| 04 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 05 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 06 | 25A FUSE 806A-151307 | Skladem | 15,54 Kč | ||
| 07 | 30A FUSE 5BY0-150301 | Skladem | 31,07 Kč | ||
| 08 | 40A FUSE 5BY0-150302 | Skladem | 31,07 Kč | ||
| 09 | FUSE 7.5A 806A-151301 | Skladem | 15,54 Kč | ||
| 10 | ELECTRIC HORN 5020-150700 | Skladem | 290,16 Kč | ||
| 11 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 12 | ECM ASSY 9CQV-001000-8100 | Skladem | |||
| 12 | ECM ASSY 9CQV-001000-8700 | Skladem | |||
| 13 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 14 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 15 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 16 | HIGH VOLTAGE CABLE 0GR0-178000-10000 | Skladem | 435,60 Kč | ||
| 17 | STARTER RELAY 9CR6-150310 | Skladem | 450,56 Kč | ||
| 18 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 19 | NEGATIVE CABLE, BATTERY 9DQV-150420-3001 | Skladem | |||
| 20 | POSITIVE CABLE, BATTERY 9DQV-150410-3001 | Skladem | |||
| 21 | BATTERY 9DQV-151600-4400-M1 | Skladem | |||
| 21 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 22 | BELT,BETTERY 9060-152100 | Skladem | 124,29 Kč | ||
| 23 | USB OUTPUT SOCKET ASSY 9DSV-151200-6000 | Není skladem | |||
| 24 | POWER OUTLET SOCKET ASSY 9DSV-150500-6R01 | Skladem | 543,77 Kč | ||
| 25 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 26 | TRAILER POWER SOCKET 9DQV-151300-3101 | Skladem | 1 491,49 Kč | ||
| 26 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 27 | REGULATOR 9DQV-151000-3000 | Skladem | 4 272,51 Kč | ||
| 28 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 29 | BRACKET, STEPPER MOTOR 9GQA-030010-20000 | Skladem | 145,08 Kč | ||
| 30 | AIR OUTLET PIPE, STEPPER MOTOR SEAT 9GQA-001002-10000 | Skladem | |||
| 31 | CLAMP A18 30601-118010 | Skladem | 15,54 Kč | ||
| 32 | STEEPING MOTOR ASSY. 0GQ0-175000 | Skladem | 2 330,46 Kč | ||
| 33 | INLET PIPE,STEEPING MOTOR 9GQA-001001 | Skladem | 310,73 Kč | ||
| 34 | BOLT M6x40 0010-013009-0010 | Skladem | 15,54 Kč | ||
| 35 | Přerušovač blinkrů 9DRV-161000-B001 | Není skladem | 1 646,86 Kč | ||
| 36 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 37 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 38 | Jednotka T-BOX SN1V-691100-1401-11 | Skladem | 6 943,23 Kč | ||
| 38 | Jednotka T-BOX SN1V-691100-1500-11 | Skladem | |||
| 38 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 38 | Jednotka T-BOX SN1V-691100-1501-11 | Skladem | |||
| 39 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 40 | CLIP CFCV-CBC001-2001-M1 | Není skladem | |||
| 41 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 42 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 43 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 44 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
