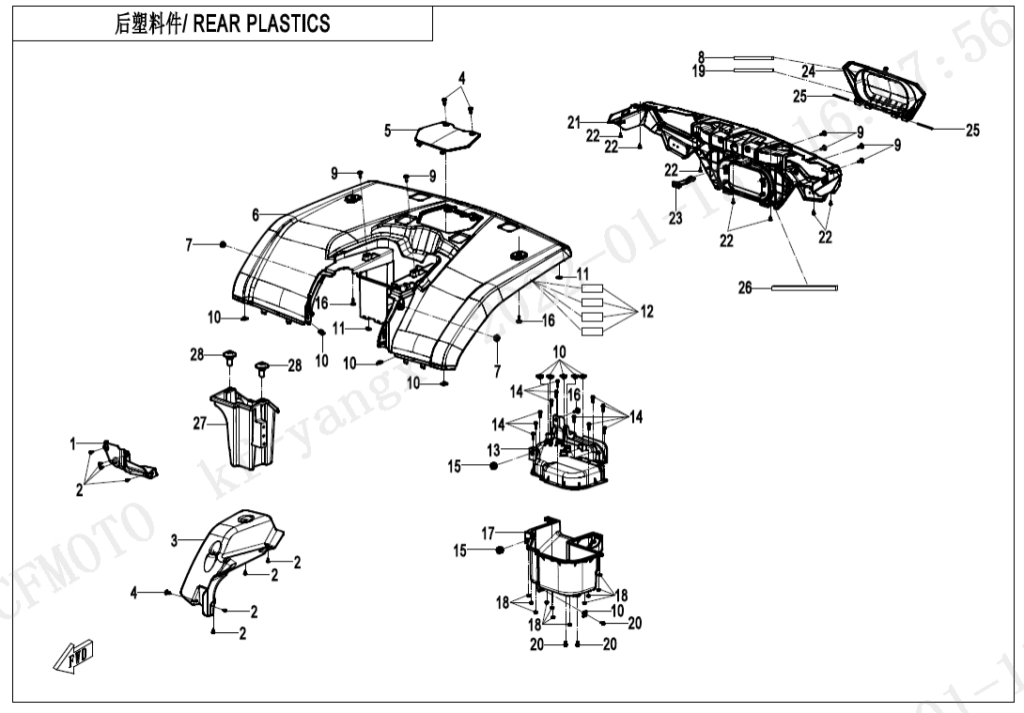

F04-5 REAR PLASTICS
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HEAT INSULATOR, TAIL LIGHT PANEL 9DQV-043024-3000 | Skladem | 279,66 Kč | ||
| 2 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 3 | HEAT INSULATOR, REAR FENDER 9DQV-043014-3001 | Není skladem | 668,07 Kč | ||
| 4 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 5 | REAR PANEL HUNTER GREEN 9DQV-043012-3000-0P800 | Skladem | 217,51 Kč | ||
| 5 | REAR PANEL LAVA ORANGE 9DQV-043012-3000-0YD00 | Skladem | 348,48 Kč | ||
| 5 | REAR TOP COVER 9DQV-043012-3000-0PG01 | Skladem | |||
| 5 | REAR TOP COVER 9DQV-043012-3000-0PG02 | Skladem | |||
| 6 | REAR FENDER 9DQV-043011-3000-0PG01 | Skladem | |||
| 6 | REAR FENDER 9DQV-043011-3000-0PG02 | Skladem | 5 064,87 Kč | ||
| 6 | REAR FENDER HUNTER GREEN 9DQV-043011-3000-0P800 | Skladem | 6 913,70 Kč | ||
| 6 | REAR FENDER LAVA ORANGE 9DQV-043011-3000-0YD00 | Skladem | 8 591,63 Kč | ||
| 7 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 8 | SEAL STRAP 1, TAIL BOX 9DQV-043027-3000 | Není skladem | |||
| 9 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 10 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 11 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 12 | SCROLL PAPER, HEAT INSULATION 50*0.062（m） TFQ004 | Skladem | 72,54 Kč | ||
| 13 | UPPER COVER, TAIL BOX 9DQV-044014-3000 | Skladem | 543,77 Kč | ||
| 14 | Šroub (vrut) 30109-050020410 | Není skladem | |||
| 15 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 16 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
| 17 | LOWER COVER, TAIL BOX 9DQV-044015-3000 | Skladem | 784,08 Kč | ||
| 18 | Matice 30204-050810 | Skladem | 15,54 Kč | ||
| 19 | SEAL STRAP 2, TAIL BOX 9DQV-043028-3000 | Není skladem | |||
| 20 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 21 | PANEL, TAIL LIGHT 9DQV-043021-3000 | Skladem | 2 641,19 Kč | ||
| 22 | SELF-TAPPING SCREW ST4.8×13 30110-481130010 | Skladem | 29,02 Kč | ||
| 23 | TIRE STRAP 9DQV-042023-3000 | Skladem | 77,68 Kč | ||
| 24 | TAIL BOX COVER 9DQV-043013-3000 | Skladem | 636,99 Kč | ||
| 25 | TAIL BOX MAIN SHAFT 9DQV-040023-3000 | Není skladem | |||
| 26 | RUBBER STRAP, TAIL LIGHT PANEL 9DQV-043026-3000 | Není skladem | |||
| 27 | TOOL BOX 9CQV-044025-3000 | Skladem | 435,02 Kč | ||
| 28 | INNER HEX BOLT M6x14 5BWV-040001-5000 | Skladem | 15,54 Kč | ||
