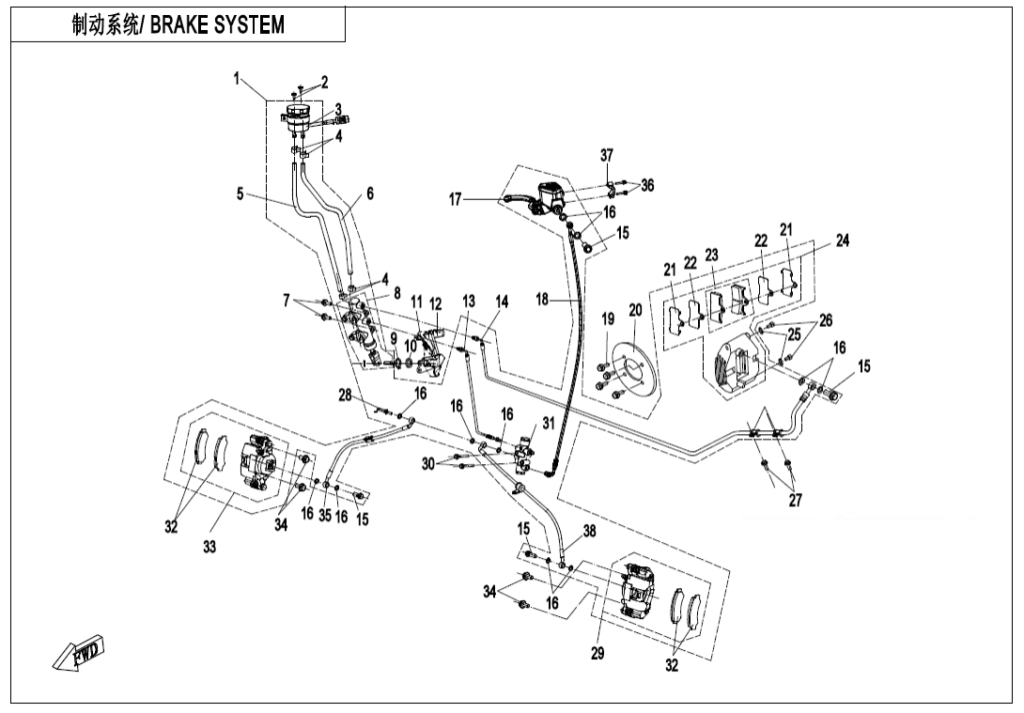

F08-1-B-V2 BRAKE SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Brzdový systém 9GQS-081000-40000 | Skladem | |||
| 02 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 03 | FLUID RESERVOIR 9GQS-081010 | Skladem | 1 975,71 Kč | ||
| 04 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 05 | HOSE 1,FLUID RESERVOIR 9GQ0-080101 | Skladem | 77,68 Kč | ||
| 06 | HOSE 2,FLUID RESERVOIR 9GQ0-080102 | Skladem | 77,68 Kč | ||
| 07 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 08 | MASTER CYLINDER 9CRB-081010 | Skladem | 2 485,82 Kč | ||
| 09 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 10 | Podložka 30304-140430 | Skladem | 31,07 Kč | ||
| 11 | RETURN SPRING,BRAKE PEDAL 9GQ0-080202 | Skladem | 31,07 Kč | ||
| 12 | PEDAL, BRAKE 9GQ0-080210-10000 | Skladem | 362,70 Kč | ||
| 13 | FLUID PIPE,FRONT BRAKE 9GQA-080150-10000 | Skladem | 683,60 Kč | ||
| 14 | REAR BRAKE FLUID PIPE 9GQS-081010-10000 | Skladem | 1 273,98 Kč | ||
| 15 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 16 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 17 | MASTER CYLINDER ASSY., RH HAND BRAKE 9AY0-081200 | Skladem | 2 687,80 Kč | ||
| 18 | BRAKE FLUID HOSE, LH HAND BRAKE 9AY0-081010 | Skladem | 1 072,01 Kč | ||
| 19 | Šroub 7020-100001 | Skladem | 31,07 Kč | ||
| 20 | REAR BRAKE DISC 7020-080002 | Skladem | 776,82 Kč | ||
| 21 | SILENCER 9010-080506 | Skladem | 46,61 Kč | ||
| 22 | DAMPING SHIM 9010-080505 | Skladem | 46,61 Kč | ||
| 23 | REAR BRAKE PAD ASSY 9CR3-0813A0 | Skladem | 1 180,77 Kč | ||
| 24 | REAR BRAKE CALIPER ASSY 9GQS-081100-10000 | Skladem | 7 162,28 Kč | ||
| 25 | Podložka 30300-100112 | Skladem | 15,54 Kč | ||
| 26 | Šroub (vrut) 30102-102020810 | Skladem | 31,07 Kč | ||
| 27 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 28 | HYDRAULIC INDUCTION SWITCH 7020-080010 | Skladem | 699,14 Kč | ||
| 29 | FRONT BRAKE CALIPER ASSY, LH 9CR3-081100-10000 | Skladem | 4 334,66 Kč | ||
| 30 | BOLT M6x45 30006-060045810 | Skladem | 15,54 Kč | ||
| 31 | HYDRAULICDISTRIBUTIONVALVE 7020-081070 | Skladem | 1 258,45 Kč | ||
| 32 | FRONT BRAKE PAD 7020-081031-10000 | Skladem | 609,33 Kč | ||
| 33 | FRONT BRAKE CALIPER ASSY, RH 9CR3-081200-10000 | Skladem | 3 184,96 Kč | ||
| 34 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 35 | RH FRONT BRAKE FLUID HOSE 9GQA-080120-10000 | Skladem | 856,68 Kč | ||
| 36 | BOLT M6x22 30006-060022810 | Skladem | 15,54 Kč | ||
| 37 | PRESS CAP, HAND BRAKE MASTER CYLINDER 9AY0-080005 | Skladem | 174,24 Kč | ||
| 38 | LH FRONT BRAKE FLUID HOSE 9GQA-080110-10000 | Skladem | 871,20 Kč | ||
