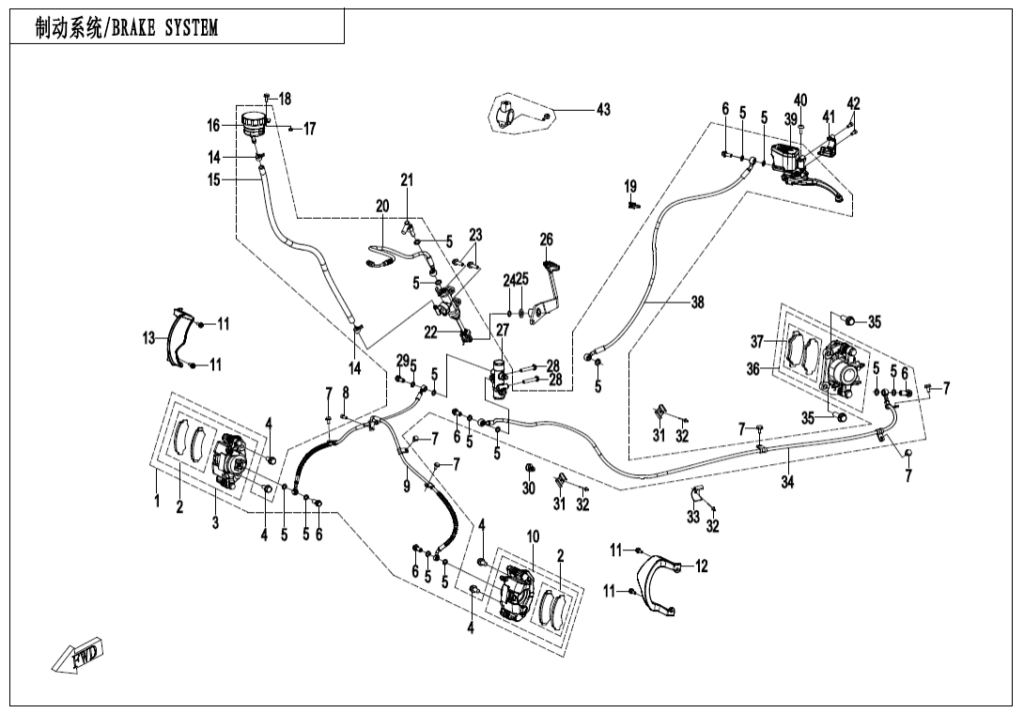

F08-A-V3 BRAKE SYSTEM(INTERNATIONAL)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HYDRAULIC BRAKE 9CQV-081000-4801 | Skladem | |||
| 1 | HYDRAULIC BRAKE ASSY 9CQV-081000-4800 | Skladem | |||
| 2 | BRAKE PAD ASSY 9DQV-0813A1 | Není skladem | |||
| 3 | FRONT RH BRAKE CALIPER 9CQV-081400-3001 | Skladem | 3 635,52 Kč | ||
| 4 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 5 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 6 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 7 | Šroub 30006-060010810 | Skladem | 43,52 Kč | ||
| 8 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 9 | FRONT BRAKE FLUID HOSE 9DQV-080150-4400 | Skladem | |||
| 10 | FRONT LH BRAKE CALIPER 9CQV-081300-3001 | Skladem | 3 635,52 Kč | ||
| 11 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 12 | GUARD, FRONT LH CV JOINT 9DS#-080001-6001 | Skladem | 87,05 Kč | ||
| 13 | GUARD, FRONT RH CV JOINT 9DS#-080002-6001 | Skladem | 87,05 Kč | ||
| 14 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 15 | RESERVOIR HOSE 9DQV-080101-3000 | Skladem | |||
| 16 | BRAKE FLUID RESERVOIR 9DQV-080110-3000 | Skladem | |||
| 17 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 18 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 19 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 20 | FLUID HOSE, BRAKE MASTER CYLINDER 9DQV-080170-4400 | Skladem | |||
| 21 | HYDRAULIC SENSOR SWITCH 9DQV-080010-3000 | Skladem | 543,77 Kč | ||
| 22 | MASTER CYLINDER 9DQV-081800-3000 | Skladem | 2 967,45 Kč | ||
| 23 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 24 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 25 | Podložka 30304-140410 | Skladem | |||
| 26 | PEDAL, BRAKE 9DQV-080210-3001 | Skladem | |||
| 27 | Rozdělovač brzd 9AWV-081070-4000 | Skladem | 2 283,85 Kč | ||
| 28 | BOLT M8x45 30006-080045810 | Skladem | 31,07 Kč | ||
| 29 | BANJO BOLT, LONG 7020-081005 | Skladem | 31,07 Kč | ||
| 30 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 31 | PLASTIC CLASP 3 9DQV-080003-3000 | Skladem | 31,07 Kč | ||
| 32 | BLIND RIVET 30902-0400820 | Skladem | 15,54 Kč | ||
| 33 | PLASTIC CLASP 1 9DQV-080001-3000 | Skladem | |||
| 34 | REAR BRAKE FLUID HOSE 9CQV-080160-4800 | Skladem | |||
| 35 | Šroub 30006-102030810 | Skladem | 31,07 Kč | ||
| 36 | REAR RH BRAKE CALIPER 9CQV-081600-3001 | Skladem | |||
| 37 | REAR BRAKE PAD ASSY 5ASV-0813A0 | Skladem | 1 227,38 Kč | ||
| 38 | FLUID HOSE, HAND BRAKE 9DQV-080130-4400 | Skladem | |||
| 39 | LH HAND BRAKE MASTER CYLINDER 9DQV-081100-3001 | Není skladem | 2 299,39 Kč | ||
| 39 | LH HAND BRAKE MASTER CYLINDER ASSY 9DQV-081100-3002 | Skladem | 2 501,36 Kč | ||
| 40 | M8 RUBBER PLUG 9010-080004 | Skladem | 43,52 Kč | ||
| 41 | PRESS CAP, HAND BRAKE MASTER CYLINDER 9AY0-080005 | Skladem | 174,24 Kč | ||
| 42 | INNER HEX SCREW M6×20 30102-060020870 | Skladem | 15,54 Kč | ||
| 43 | REAR VIEW MIRROR BRACKET ASSY 9DQV-080400-4200 | Skladem | |||
