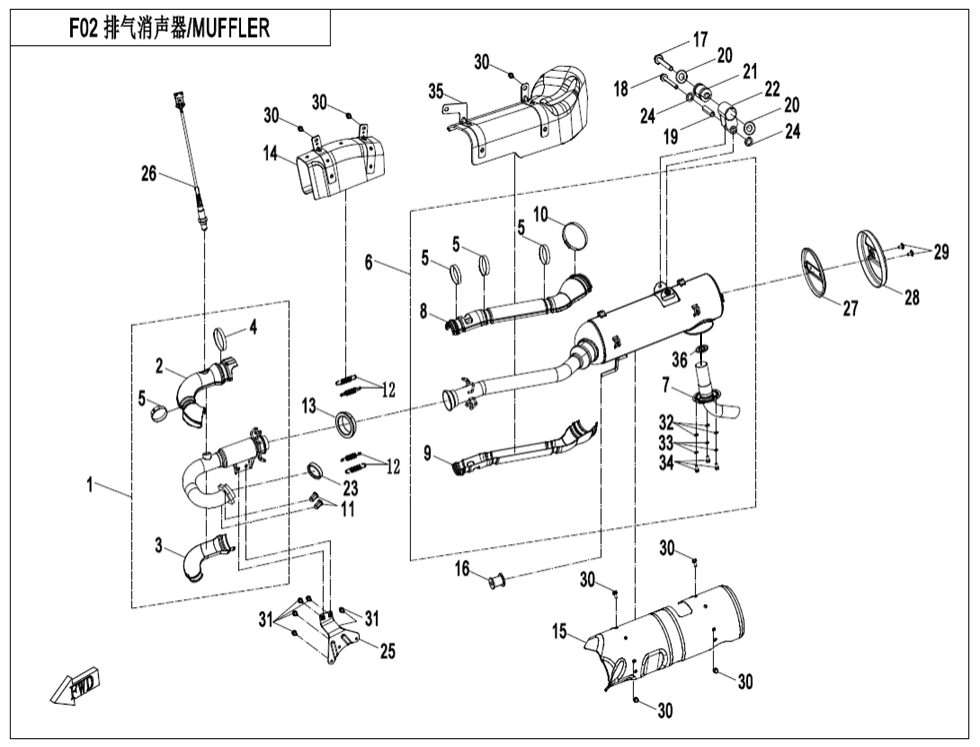

F02-C MUFFLER(EU168)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | EXHAUST PIPE ASSY 9CRV-021100-G200 | Není skladem | 4 225,90 Kč | ||
| 02 | UPPER INSULATOR, FORNT EXHASUST PIPE 9CQ#-021101-6000 | Skladem | 813,12 Kč | ||
| 03 | LOWER INSULATOR, FORNT EXHASUST PIPE 9CQ#-021102-6000 | Skladem | 813,12 Kč | ||
| 04 | SCREW CLAMP，A-TYPE 9010-020007 | Skladem | 116,06 Kč | ||
| 05 | SCREW CLAMP，A-TYPE 7030-021305 | Skladem | 108,75 Kč | ||
| 06 | Sestava výfuku a tlumiče 9DQV-021200-3200 | Skladem | 15 489,79 Kč | ||
| 07 | LAPAČ JISKER 9CS#-021320-6600 | Skladem | 776,82 Kč | ||
| 08 | UPPER HEAT INSULATOR, REAR EXHAUST PIPE 9DQ#-021201-6000 | Skladem | 357,34 Kč | ||
| 09 | LOWER HEAT INSULATOR, REAR EXHAUST PIPE 9DQ#-021202-6000 | Skladem | 326,26 Kč | ||
| 10 | SCREW CLAMP，A-TYPE 9030-000109 | Skladem | 116,06 Kč | ||
| 11 | NUT M8, MUFFLER JOINT 8010-020001 | Skladem | 15,54 Kč | ||
| 12 | DRAG SPRING,MUFFLER 9CR6-020002-00001 | Skladem | 77,68 Kč | ||
| 13 | SMALL GRAPHITE RING 9AWA-021003-00002 | Skladem | 155,36 Kč | ||
| 14 | SPRING HEAT INSULATION PLATE ASSY 9GQ0-020010 | Skladem | 916,65 Kč | ||
| 15 | HEAT INSULATOR, MUFFLER 9CQV-020010-6001 | Skladem | 776,82 Kč | ||
| 16 | RUBBER BUSH,MUFFLER 9GQ0-020002 | Skladem | 62,15 Kč | ||
| 17 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 18 | Šroub 30006-080065810 | Skladem | 31,07 Kč | ||
| 19 | LINER, MUFFLER 7020-020001 | Skladem | 62,15 Kč | ||
| 20 | CAP, CUSHION SLEEVE 9010-050003 | Skladem | 31,07 Kč | ||
| 21 | DAMPER SLEEVE ASSY 5BY0-020030 | Skladem | 403,95 Kč | ||
| 22 | MOUNT ASSY., MUFFLER 9CR6-020020 | Skladem | 139,83 Kč | ||
| 23 | BUSHING, EXHAUST PIPE 0800-022300 | Skladem | 108,75 Kč | ||
| 24 | WIRE WASHER 9CR6-020003 | Skladem | 46,61 Kč | ||
| 25 | BRACKET, EXHAUST PIPE 9DQV-020001-3000 | Skladem | 326,26 Kč | ||
| 26 | OXYGEN SENSOR 0HU0-176000 | Skladem | 3 045,13 Kč | ||
| 27 | HEAT INSULATOR, MUFFLER 9DQV-020002-3000 | Skladem | 186,44 Kč | ||
| 28 | HEAT INSULATOR, MUFFLER 9DQV-020003-3000 | Skladem | 512,70 Kč | ||
| 29 | INNER HEX SCREW M6x12 6KM#-040702-8000 | Skladem | 31,07 Kč | ||
| 30 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 31 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 32 | WASHER 6 30306-060800 | Skladem | 31,07 Kč | ||
| 33 | Podložka 30303-060900 | Skladem | 15,54 Kč | ||
| 34 | Matice 30206-060510 | Skladem | |||
| 35 | HEAT INSULATOR, EXHAUST PIPE 9DQV-020020-3000 | Skladem | 590,38 Kč | ||
| 36 | SEAL GASKET,GRAPHITE 9DS#-021001-6000 | Skladem | 201,97 Kč | ||
